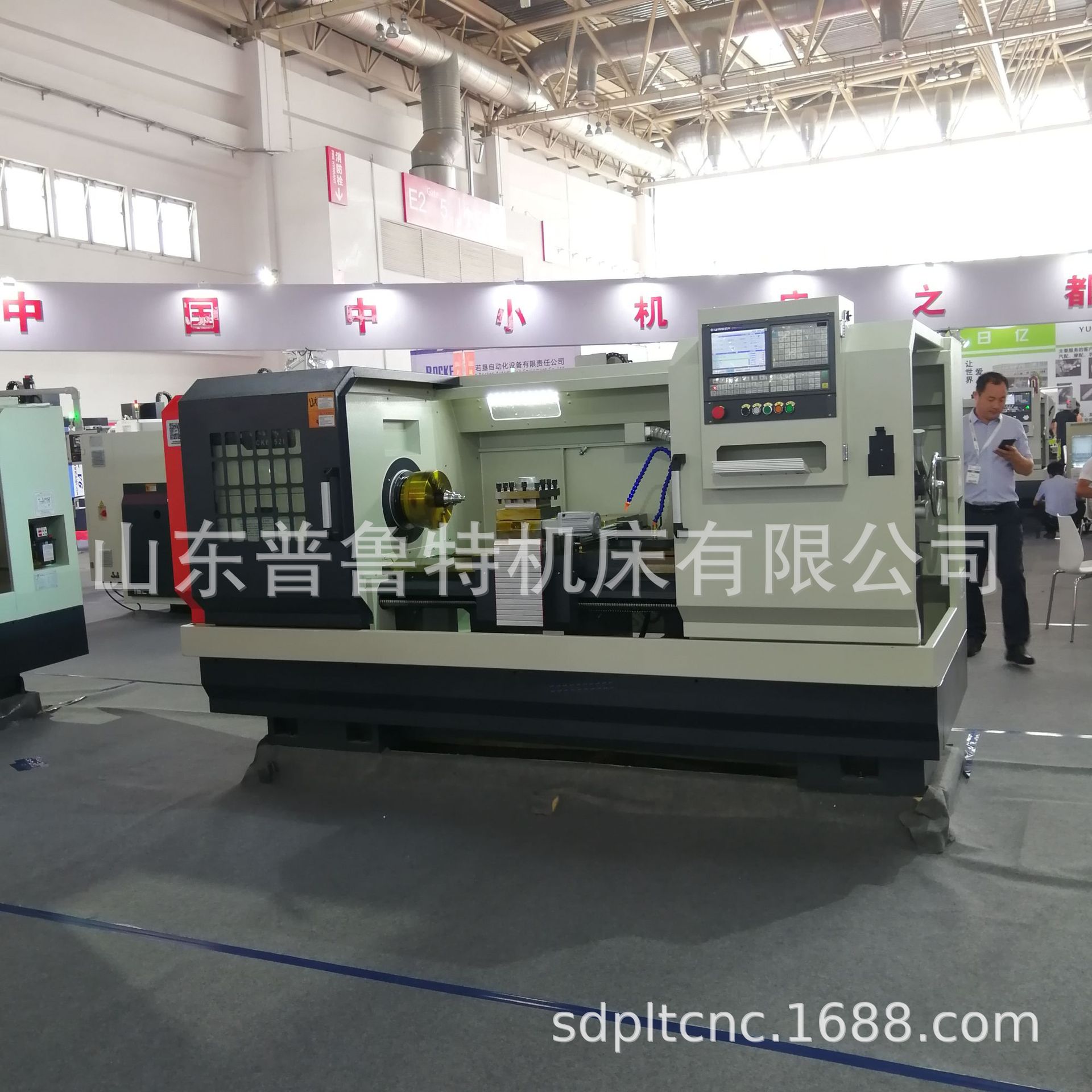

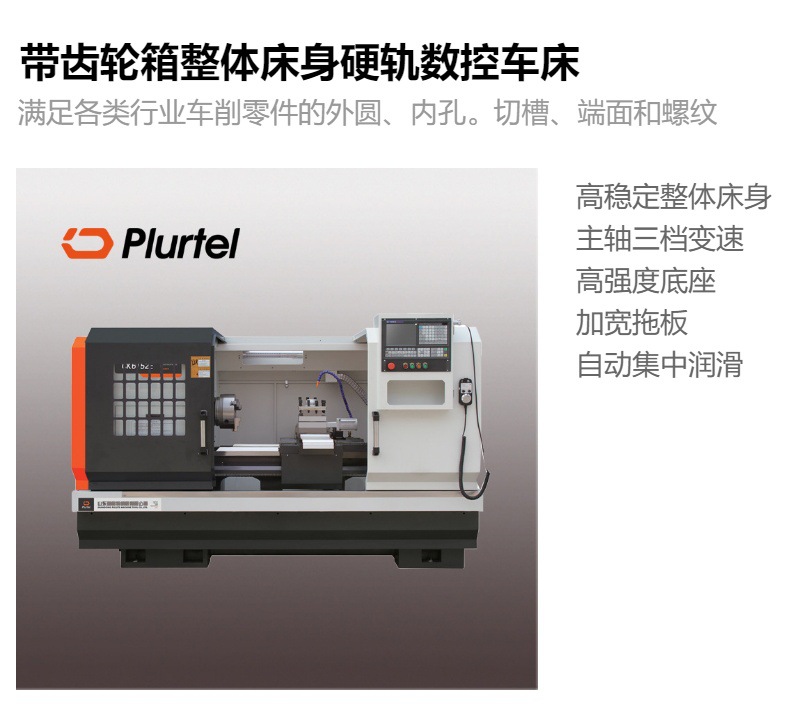

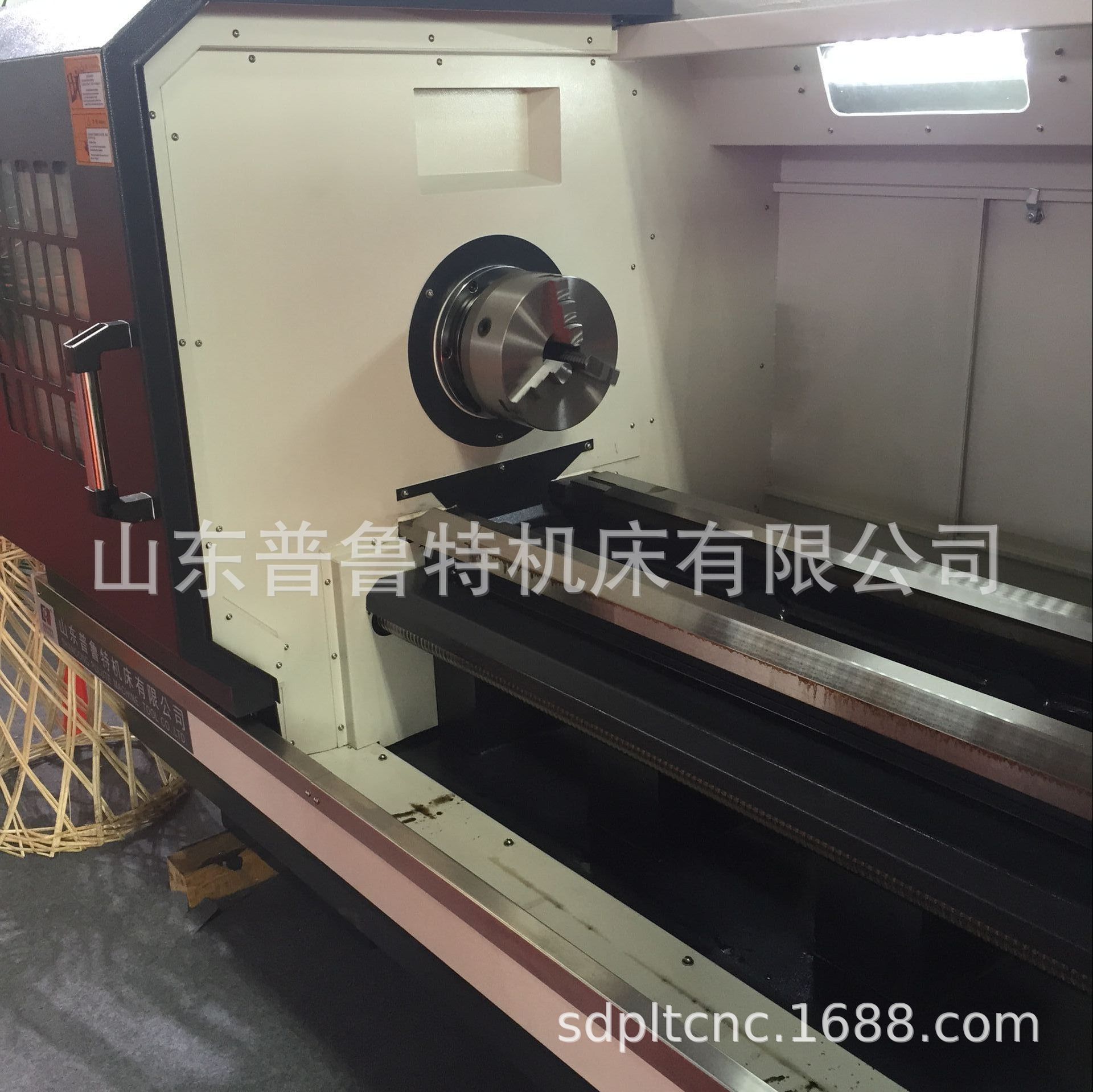

Производители токарных станков Ck6152E с интегрированной кроватью, с гарантией на год

技术参数

1、加工能力/ Capacity

工件最大回转直径/Max. swing dia.over bed 530mm

拖板上最大回转直径/Max. swing dia.over slide 280

最大盘类车削直径/ Max. processing diameter（plate）520mm

最大车削长度/ Max. turning length 825-1325-1825-2825mm

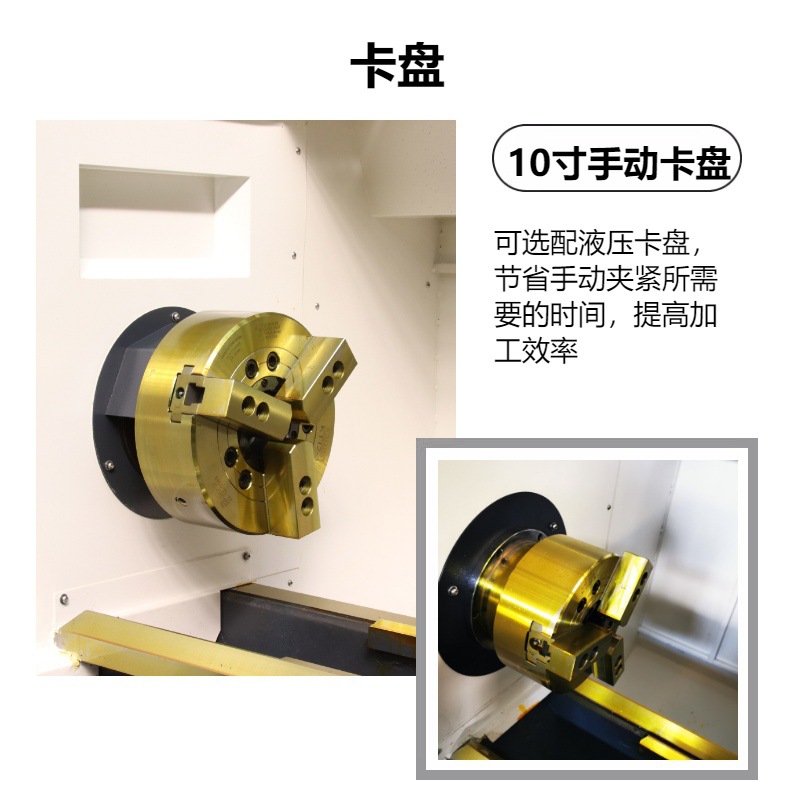

卡盘尺寸/ Chuck size 250mm

2、各轴行程/ Axis travel

X轴行程/ X axis travel         280mm

Z轴行程/ Z axis travel         1000-1500-2000-3000mm

X轴 快速移动/ Rapid feed (X)    6000mm/min

Z轴 快速移动/ Rapid feed (Z)     8000mm/min

3、主轴/spindle

主轴转速/Spindle speed 30-150,90-450,315-1600r/min

主轴变速范围/ Spindle speed range三档变速/Three-speed transmission

主轴孔锥度/ Spindle nose A2-8

主轴通孔直径/  Spindle bore 90mm

选配拉管通孔直径/ Spindle pull tube through hole diameter 75mm

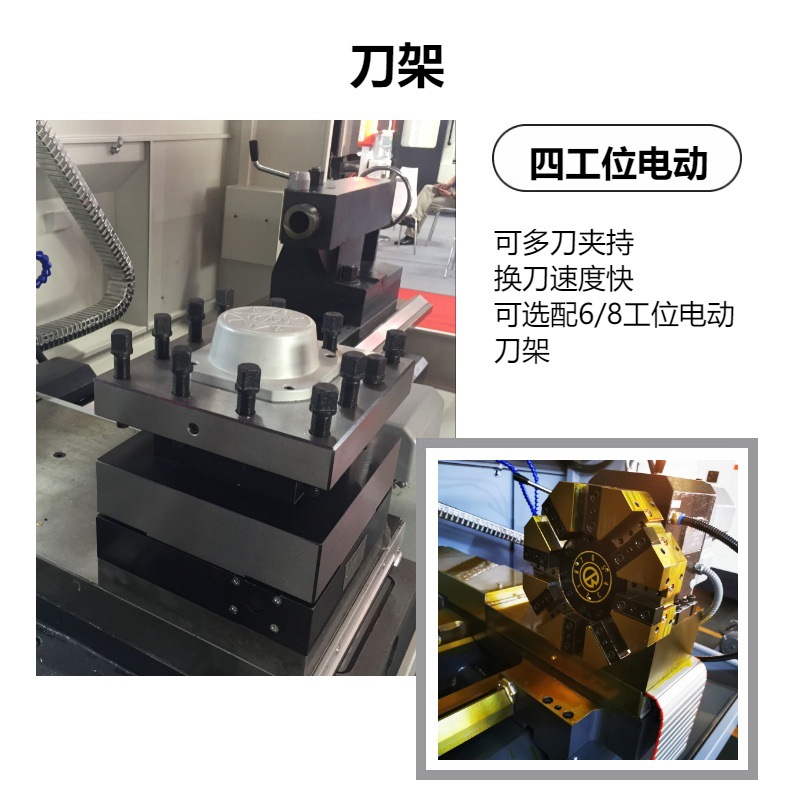

4、刀架/ Turret

刀架形式/Type of turret 电动刀架/Electric tool holder

刀具位置数量/ Number of tool stations 4工位/4 station

刀具尺寸(方柄)/Tool size(square shank) 25mm

 5、机床精度/Machine tool precision

定位精度Accuracy of position

X-轴/x-axis 0.01mm

Z-轴/x-axis 0.015mm/0.02mm/0.025mm

重复定位精度Repeatability

X-轴/x-axis 0.009mm

Z-轴/x-axis 0.01mm/0.012mm/0.015mm/

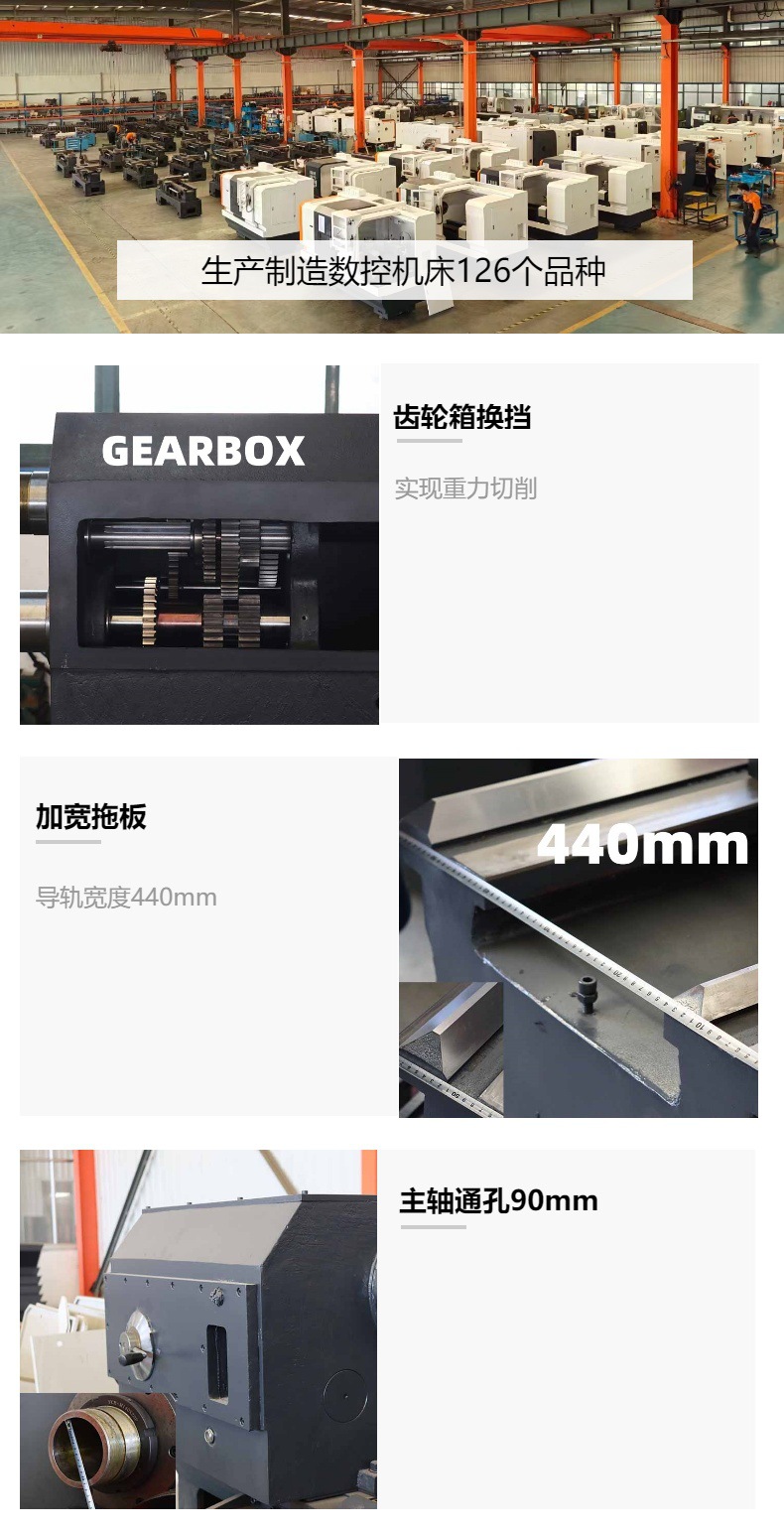

 6、床身结构与传动/Bed structure and transmission

导轨类型/Guideway type 硬轨/ Hard track

X-轴导轨宽度/X axis Rail width 210mm

Z-轴导轨宽度/Z axis  Rail width 440mm

X-轴丝杆/X axis ball screw 2506

Z-轴丝杆/Z axis ball screw 4008-5010-5010

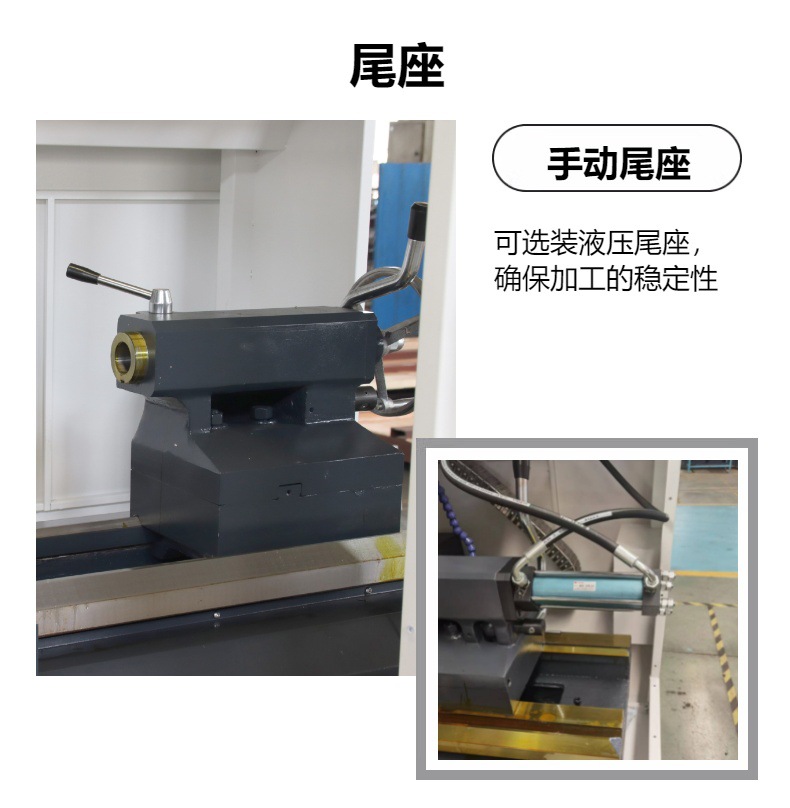

7、尾座/Tail stock

尾座形式/Tail stock 手动尾座/Manual tailstock

尾座套筒直径/Tail stock sleeve diameter 75mm

顶尖行程/Sleeve travel 150mm

尾座套筒锥度/Sleeve taper MT5#

尾座的移动形式/Tail seat movement form 手动/manual

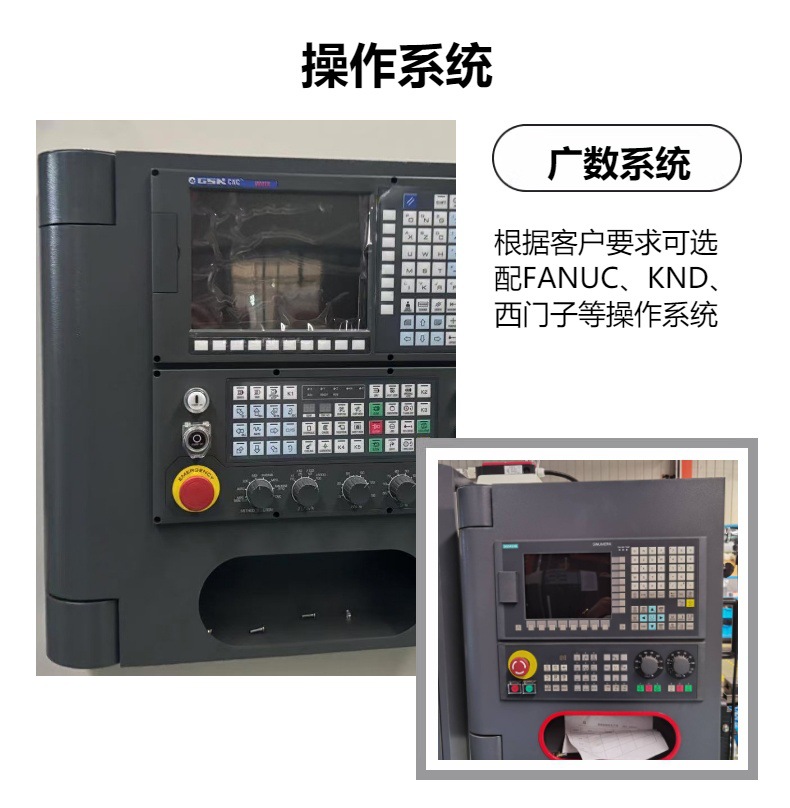

8、数控系统/ NC unit

数控系统 /System GSK980TC3

X轴伺服电机扭矩/X axis motor torque 7.5NM

Z轴伺服电机扭矩/Z axis motor torque 10NM/15NM/122NM/22NM

主轴电机功率/spindle motor power 7.5kW

9、其他/ Other

润滑泵/Lubrication pump 2ZK（2L）

冷却泵/Cooling pump 150W/250W

机床电压/Machine voltage 380V/50HZ

电源/ Power supply 12KVA/12KVA/13KVA/13KVA

机床外形尺寸/ Machine overall dimensions

2600/3100/3600/4800*1600*1670mm

机床重量/ Machine weight2900/3150/3500/4300kg
