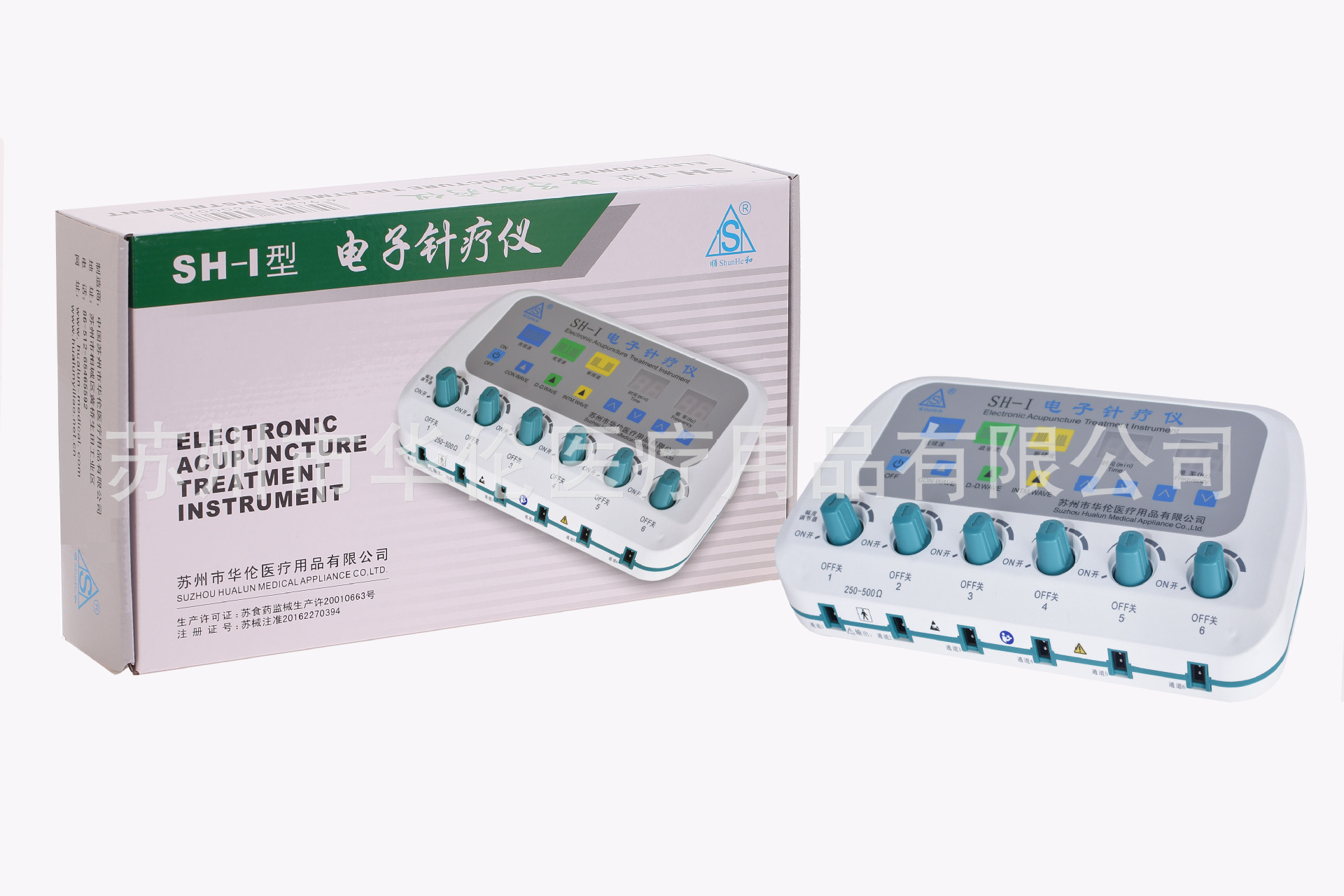

Электронный прибор для акупунктуры Шунхэ SH-1

•




• • 产品信息
  • 名称： 电子针疗仪
  • 品牌： 顺和
  • 货号： SH-I
  • 产品特点

  • 1、产品技术参数说明

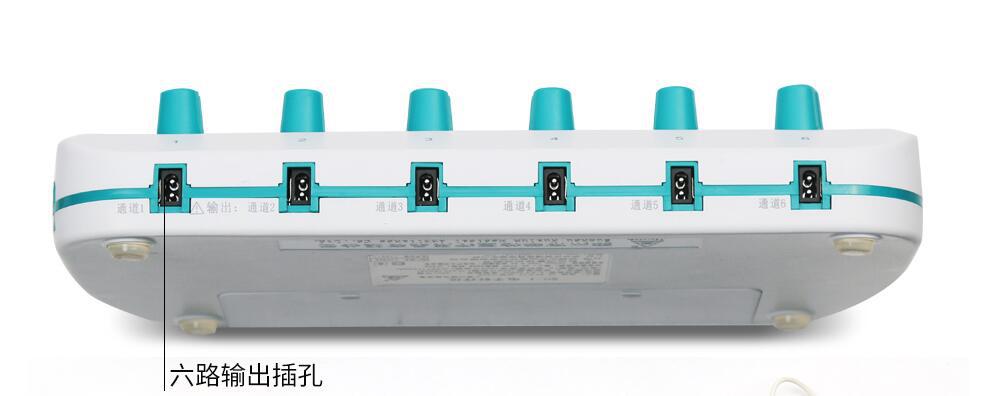

      ○  该产品输出脉冲路数：六路输出；

    ○  输出脉冲波形为单向波，如图2所示，有连续波、断续波、疏密波；

    ○  该产品的输出无任何直流分量；

    ○  该产品的最大输出电流有效值≤10mA；

      ○  脉冲宽度0.2ms±20%；

    ○  脉冲重复频率：1～60Hz可调，显示误差不大于±10％；

    ○  脉冲最大输出幅度：

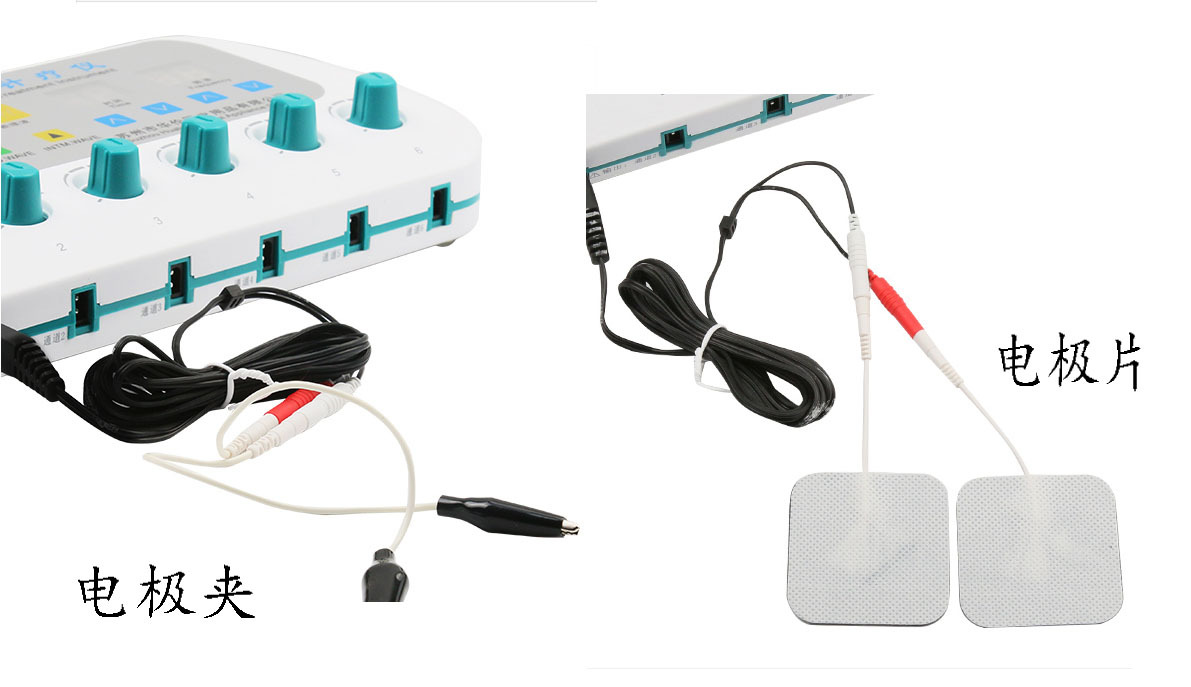

        皮肤电极：（500Ω负载）≤40 V（80mA），

        毫针电极夹：（250Ω负载）≤25 V（100mA）。

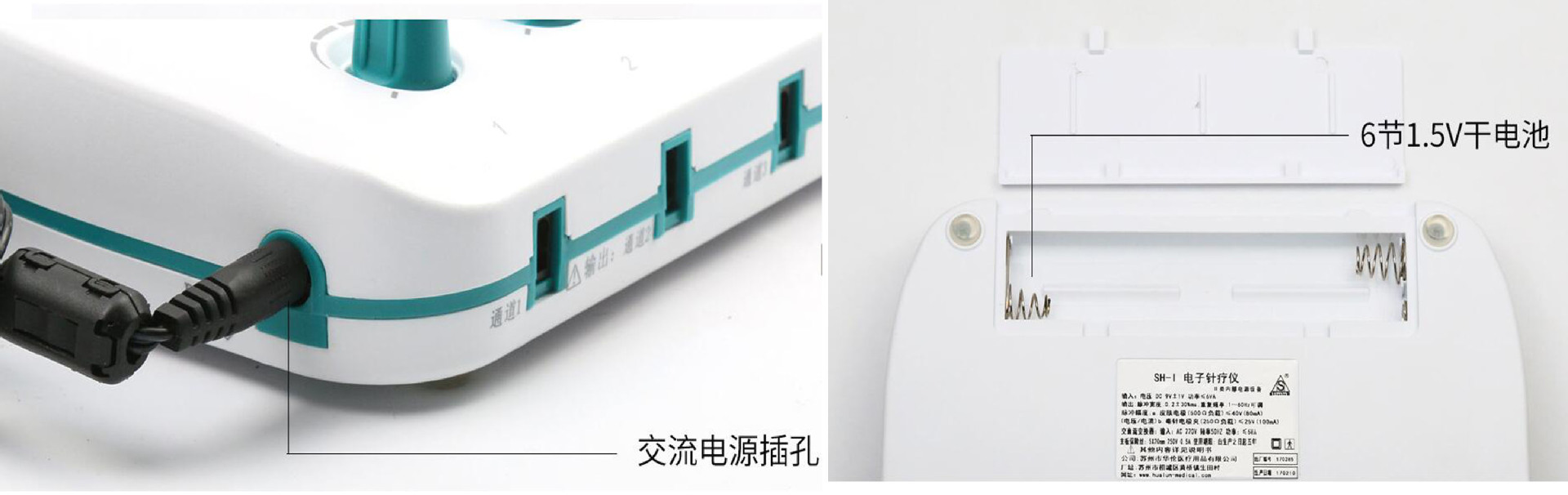

    ○  输入：电压DC9V±1 V功率≤6VA；

    ○ 主机保险丝规格:φ5×20，250V0.5A位于主板“FUSE”位置；

    ○ 交直流交换器（带热熔断保护器）：

        输入：电压220V±22V 频率50±1Hz 功率≤6VA；

        输出：电压DC 9V±1 V电流≥300mA极性外负内正；

    ○  内部电源（自备5号干电池6节）：DC 9V    %；

    ○  治疗时间0~60min可调，误差不大于±10％；

     产品具有开路短路保护装置

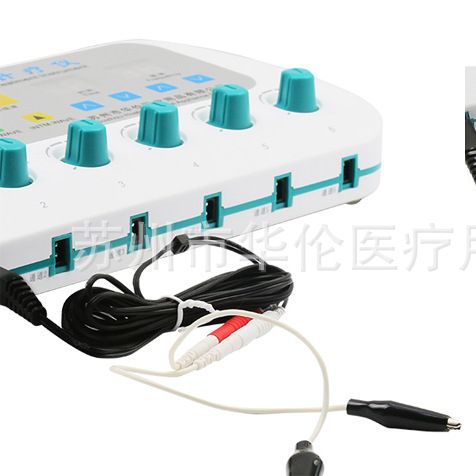

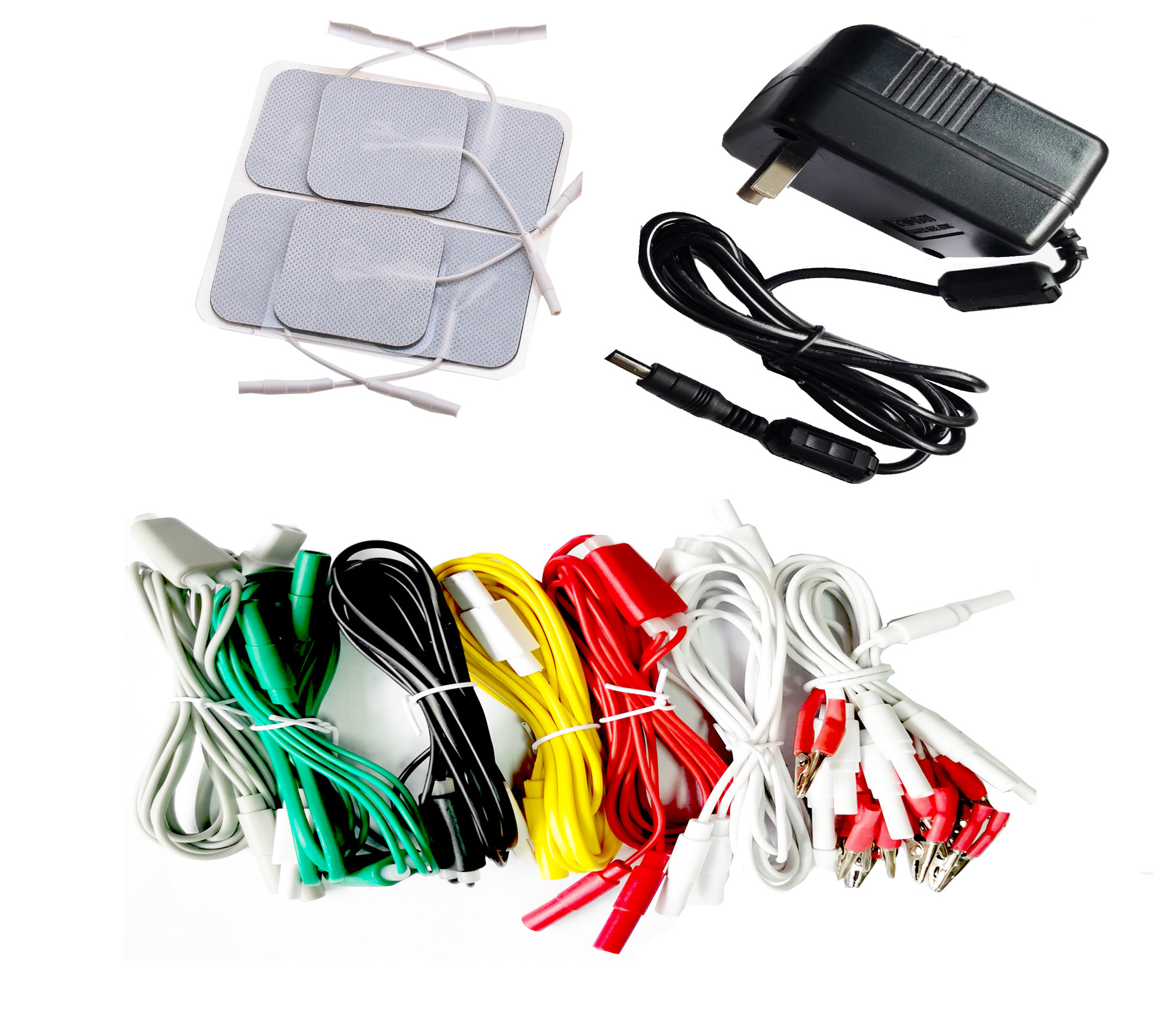

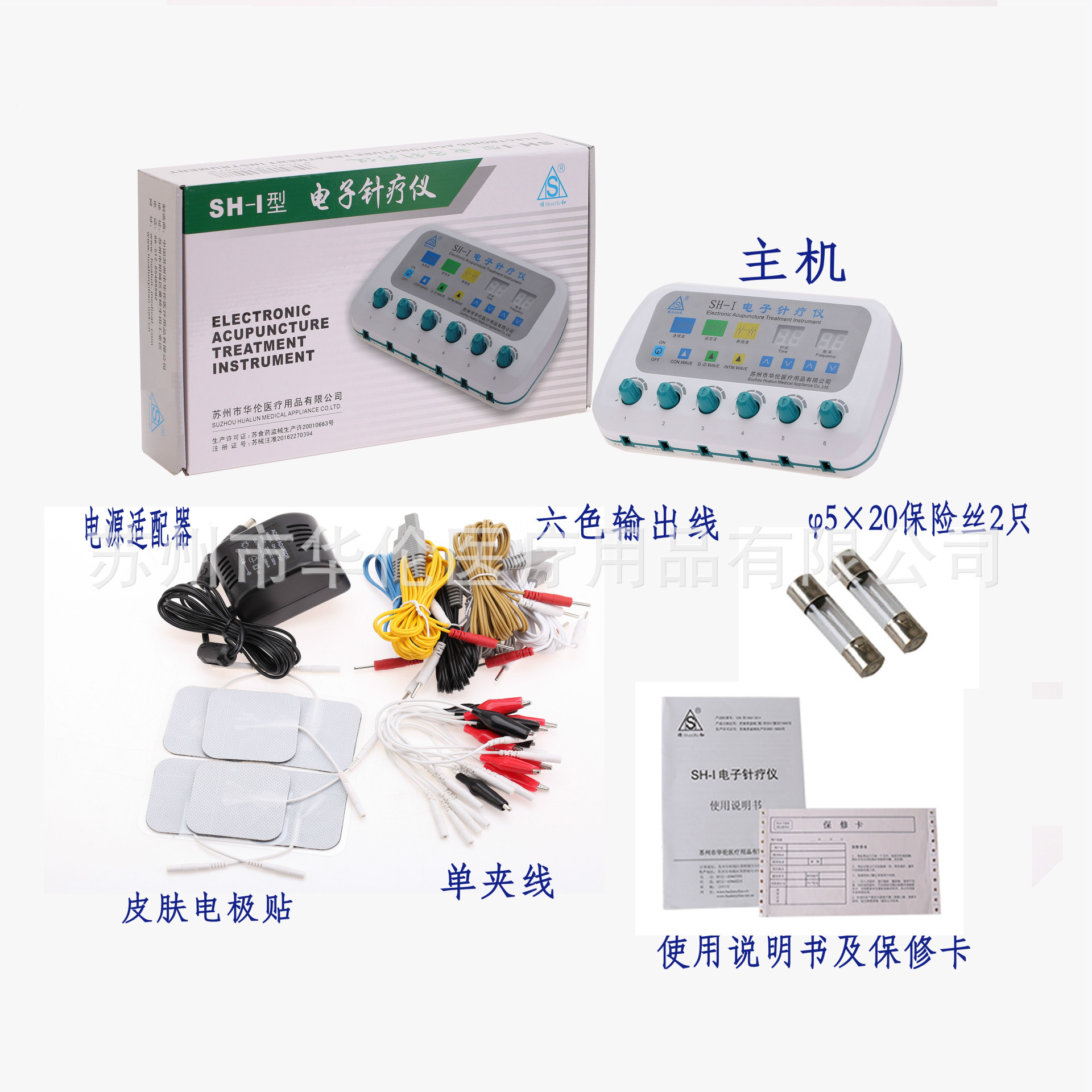

  • SH-I Electronic Acupuncture Instrument is composed of the main machine, skin electrode (electrode holder) and the transverter.This product is the traditional product that is newly designed with the integration of similar products home and abroad. SH-I Electronic Acupuncture Instrument is the medical device of electronic acupuncture integrated with digital controlled low-frequency electronic pulse technique and traditional Chinese acupuncture and meridian science. It belongs to 2 class BF medical electric device with the interior power supply. This unit enjoys complete functions, beautiful appearance, simply operation, safety and efficiency.

    Technical Parameters
    The output pulse waveform is asymmetric bi-way triangle sharp wave. As shown in Figure 2, there’re continuous wave, discontinuous wave and disperse-dense wave.
    Pulse frequency: 1-99Hz adjustable
    The pulse width is no more than 0.475ms
    The peak value of output voltage is no more than 60V (500Ω overload)
    Output pulse ways: 6-way output
    Source voltage: transverter 220 V±22V 50±1Hz Interior power supply: DC 9V±1 V
    Input power: DC 9V≤0.8VA; transverter≤5VA
    Effective value of maximum output amplitude: skin electrode: ≤25 V, electrode holder: ≤12.5 V
    Volume: 215×165×70mm
    Weight: 1.1kg

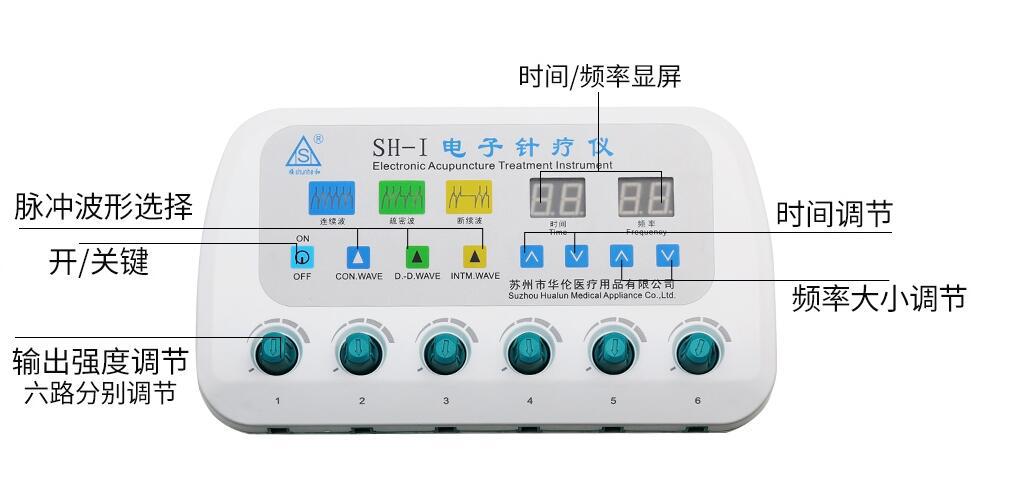

 产品面板功能
