Беспроводная платформа GSM для внешней торговли, беспроводной фиксированный терминал, проводная платформа

GSM Wireless Terminal/Phone With LCD Display

You can dial the local calls, domestic and international calls with this
terminal connecting with a desktop phone and a SIM card

Sultable for Alarm System! Compatible with GSM 850/900/1800/1900 MHz,
widely used with many providers

Simple to install and easy to maintain, A directional higher gain antenna
can be connected to solve the poor coverage problem

How to use this device?

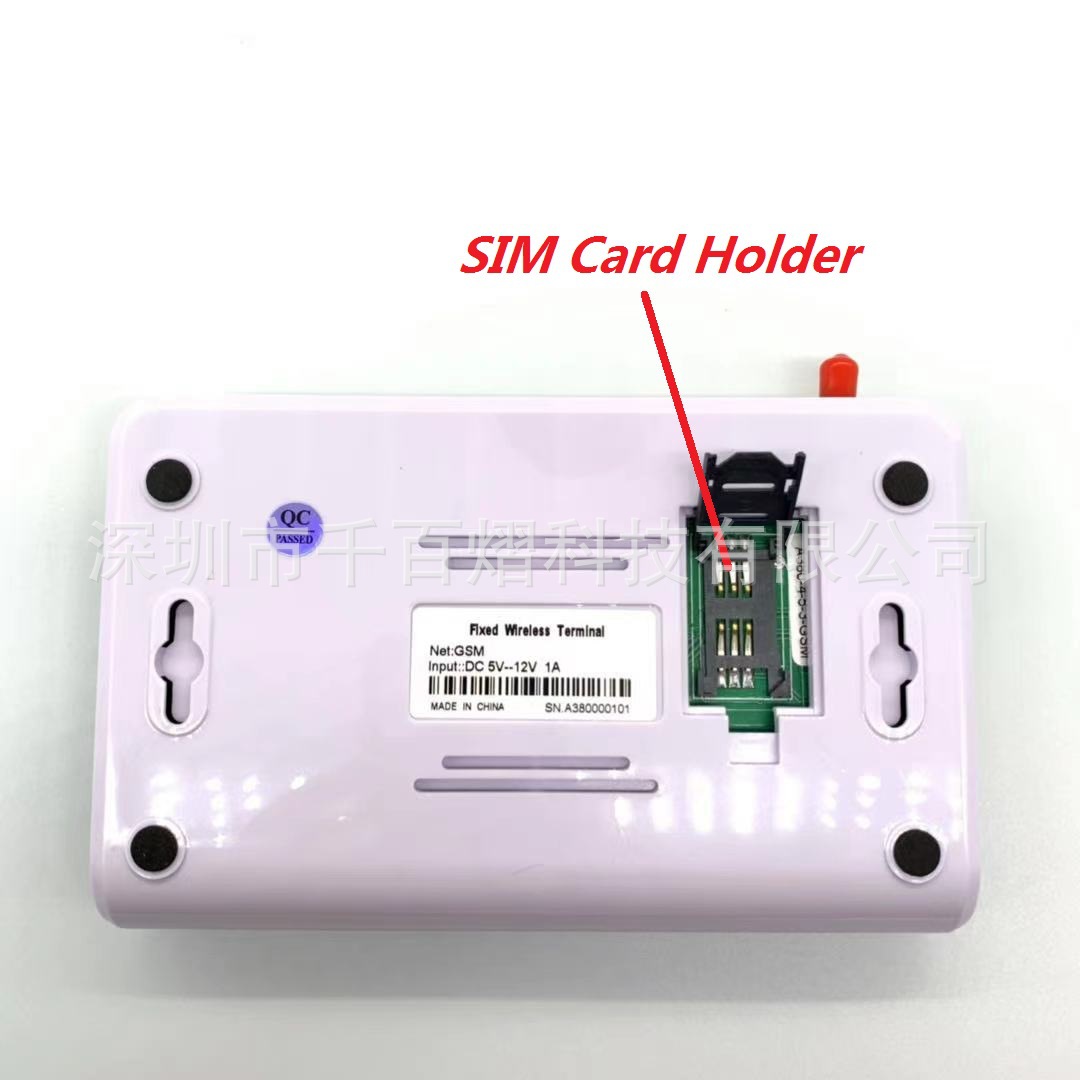

Step 1: Install a SIM Card

Insert the SIM card only when the terminal is switched off and the AC adapter
is unplugged

Step 2: Connect the Antenna

For
antenna connection, you can use your mobile phone to search for the place where
the strongest signal is, then put the antenna there. Please do not make the
antenna too close to the terminal. It will disturb the signal of the terminal.
Please do not make the antenna and the terminal too close to the TV set,
computer, and radiogram etc. It will disturb the signal of the terminal.

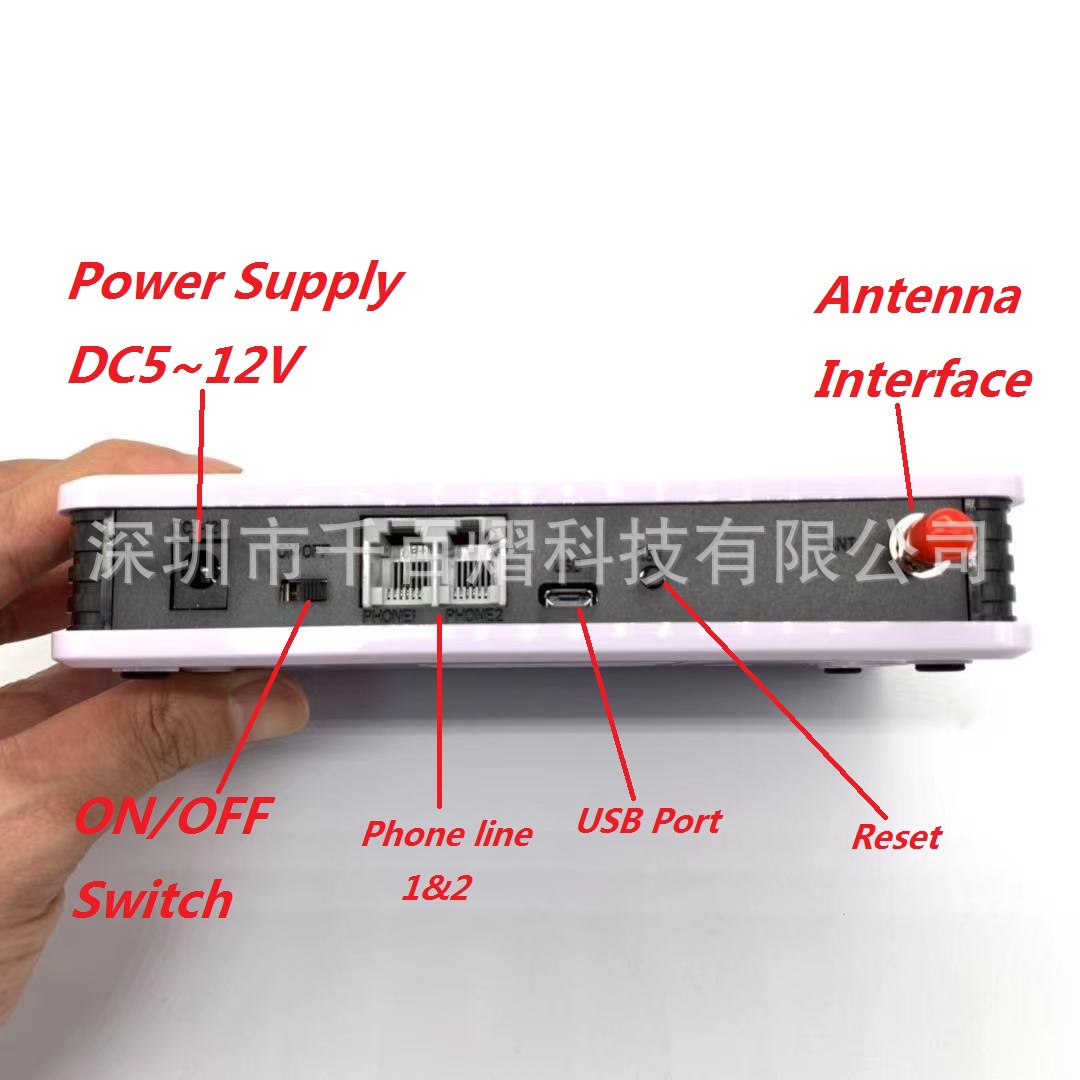

Step 3:Connecting your terminal with desktop phone

To
make calls, you should connect the telephone line with RJ11 phone port of GSM
terminal and telephone set

There are two communication portals at the side of the terminal .You can
connect one or two desktop phones with terminal. (Please use the telephone line
in the package)

Step 4: Connect power adapter and switch on the power.

Step 5: For a while, the device get GSM signal and enter normal
working status.

Step 6: Make phone call (dial in and dial out) with your
telephone set that connected with terminal.

The phone number
of desktop phone is the GSM SIM card number inside terminal.

Specifications

Compatible to
PABX, alarm system, the recording system, etc.

1.Networks
support:

GSM850/900/1800/1900MHz

2. Frequency
range:

GSM
850MHz(Transmits : 824-849MHz, Receives : 869-894MHz)

GSM
900MHz(Transmits : 890-915MHz, Receives : 935-960MHz)

GSM
1800MHz (Transmits : 1710-1785MHz, Receives : 1805-1880MHz)

GSM
1900MHz (Transmits : 1850-1910MHz, Receives : 1930-1990MHz)

3. Voltage DC
5V-12V

4. Power
consumption:

Statics≤25mA emission≤300mA

5. Peak power
consumption: 0.25W/0.5W

6. Receive
sensitivity: -104db

7. Antenna
increment: All directions: 3.0db; Certain/Selection: 12db

8. RJ11 Port

9. Operation
environment temperature: -10~+40℃

10. Dimensions:
160*100*40mm

11.Telephone line
length: 150cm / 59 inch

EU,
US, UK, AU power plug for choice, will send corresponding plug to fit your
country.

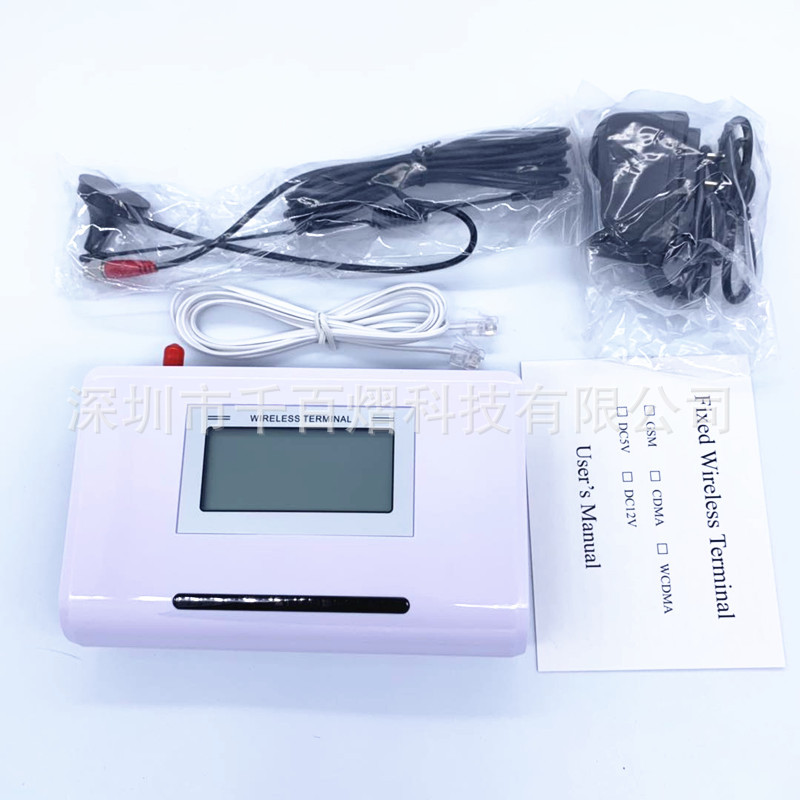

Package include:

1*Wireless terminal

1*Antenna

1*Power Adapter

1*Telephone Line

1*English Manual
