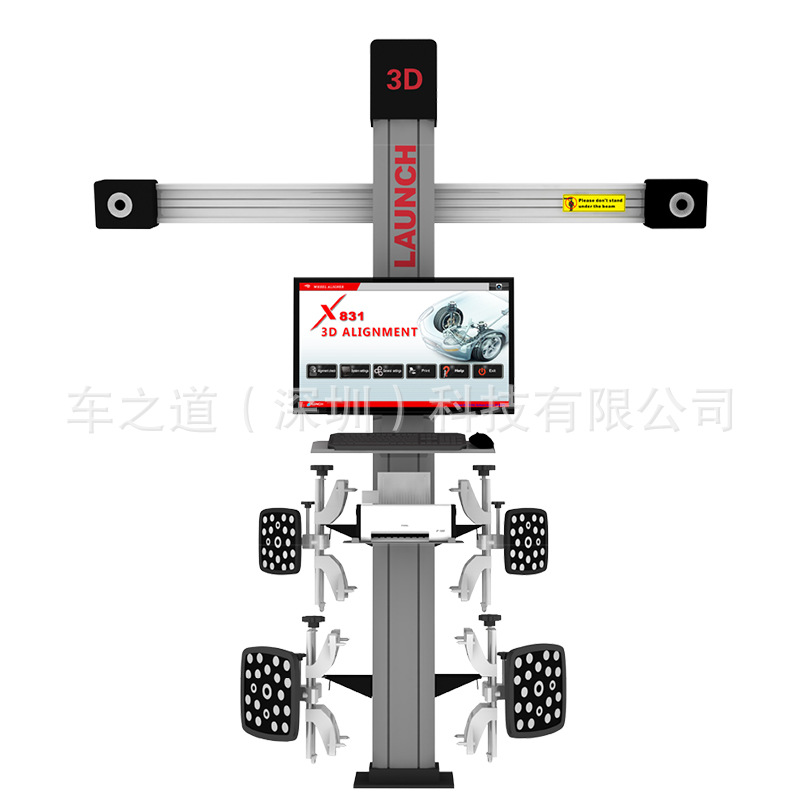

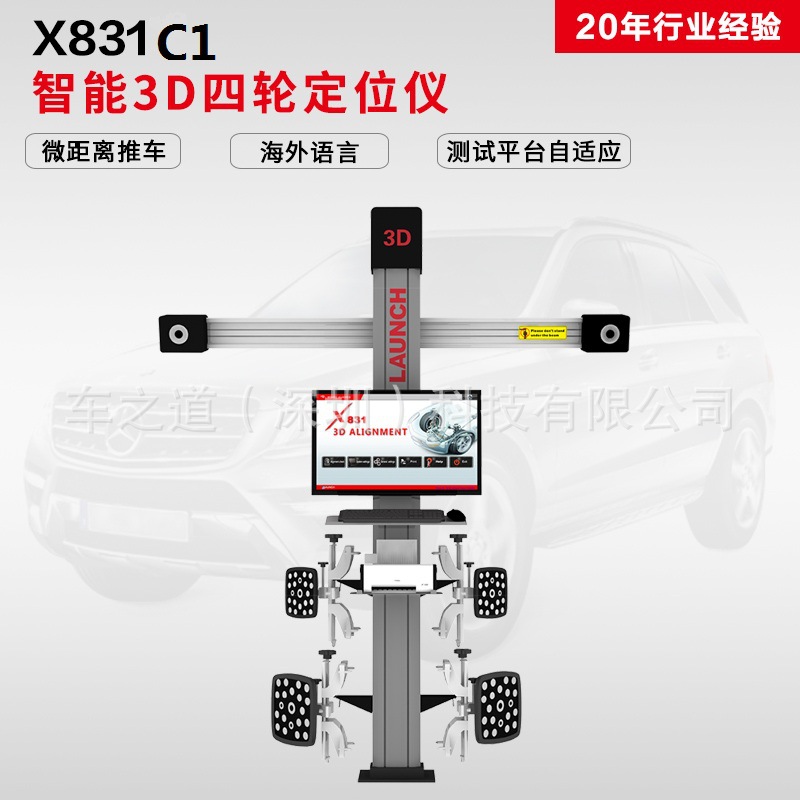

LAUNCH Yuanzheng X-831C1 фиксированный классический четырехколесный локатор, 3D четырехколесный локатор, оборудование на китайском и английском языках

LAUNCH元征X-831C1固定式经典四轮定位仪 3D四轮定位仪设备中英文

Professional, Reliable, Affordable

Measuring parameter:

Display accuracy: Range - , Accuracy 1/0.01°/0.1mm

Camber: Range  ± 10°, Accuracy  ± 2'

Caster: Range ± 20°, Accuracy  ± 6'

K.P.I.: Range ± 20°, Accuracy  ± 6'

Toe-in: Range ± 20°, Accuracy  ± 2'

Set back: Range  ± 5°, Accuracy  ± 2'

Thrust angle: Range  ± 5°, Accuracy  ± 2'

Thread: Range  1,800mm, Accuracy  ± 1mm

Wheelbase: Range  3,500mm, Accuracy  ± 2mm

Features:

1, Computer calcutale four wheel alignment data through 3D digital signals, target boards fixed on 4 wheels by 2 speedy&high-accuracy digital dynamic carmeras;

2, The four target boards only have detector imagin, w/o electronic parts and connection, reduce fault greatly;

3, Only lift one time, or push the car, eccentric compensation could be achieved, improve measuring speed very much;

4, No need calibration before use, because the machines were calibrated very well before delivery;

5, 3D animation guides technicians how to adjust;

6, Steering wheel reset function ensures the steering wheel keep straight without adjusting set back or thrust angle;

7, Optional wheelbase and tread measurement fuction, technicians know the chassis condition much better;

8, Quick searching the four wheel alignment data, and upgrade database by free permanently;

9, English / Chinese version.

Packing Information:

packing material: polywood box OR carton box

strong and convenient to export transport

产品特点



1.自主知识产权3D四轮定位软件，简化操作页面，同时可获得功能、界面、数据升级；

2.测量系统：二个3D工业数码像机，四个目标靶构成测量系统；

3.进口高清广角镜头：满足超长，超宽车辆检测，适应各种光线条件；

4.短安装距离：安装场地要求低，相机到前轮距离可短至1.6米；

5.全天候高性能进口3D工业相机：光线强度自动调节，温度补偿，确保高温，严寒气候下，获得高精度检测；

6.LED光学指示系统：依据相机上智能LED指示即可准确完成定位操作；

7.免维护无源目标靶：目标靶上无电子元器件、无电池、无需数据传输，消除故障源，降低使用维护成本；

8.动态测量：滚动车轮，车身处于自然状态，实时检测“车辆定位基准面”，自动消除举升机不水平，夹具装夹带来的偏差；

9.操作简单快捷：将四个目标靶装在轮辋上，仅需推动汽车滚动车轮 ，即可完成除主销角度外的传统定位测量，整个过程不到1分钟；

10.免标定：出厂时已标定完毕，到现场安装即可使用；

11. 现场维护：设备如需校正，无需返厂，现场进行；

12.一键恢复：软件感染病毒或误操作后，可一键还原定位系统。
