support 5g 4g band



4g : band 1/3/7/8/20/38

5g :sa 1/3/28/77/78



support wifi 5 wifi 6 wifi6e 6ghz wifi

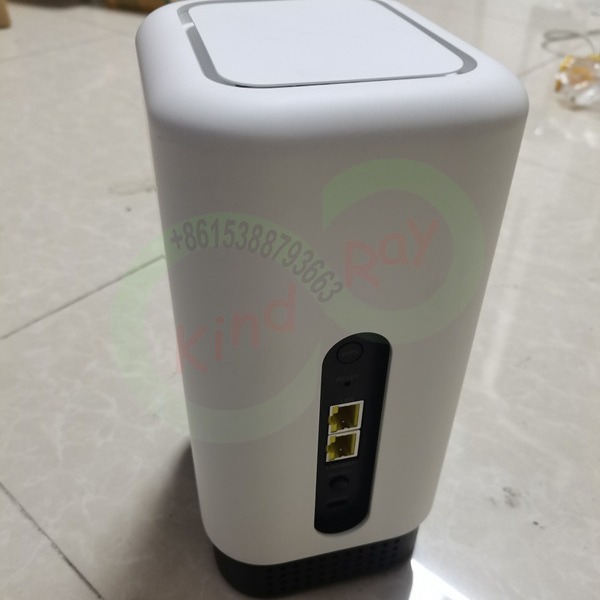

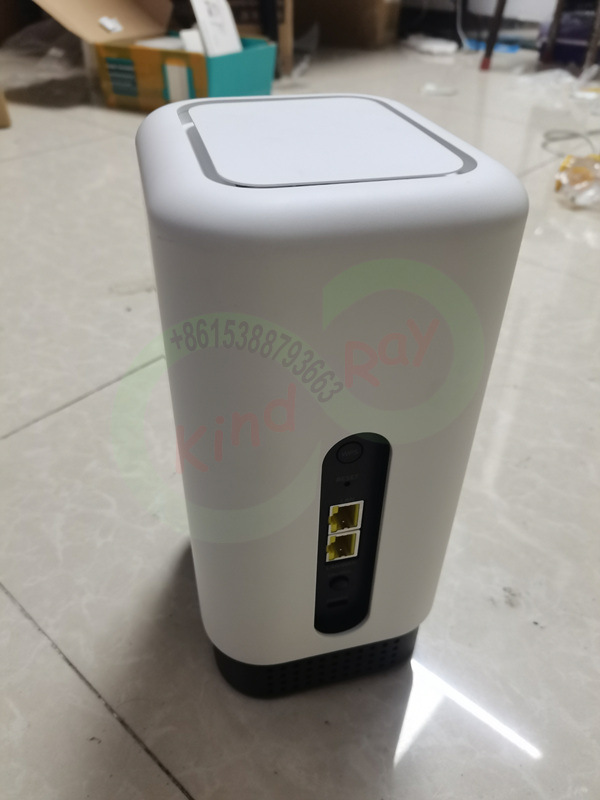

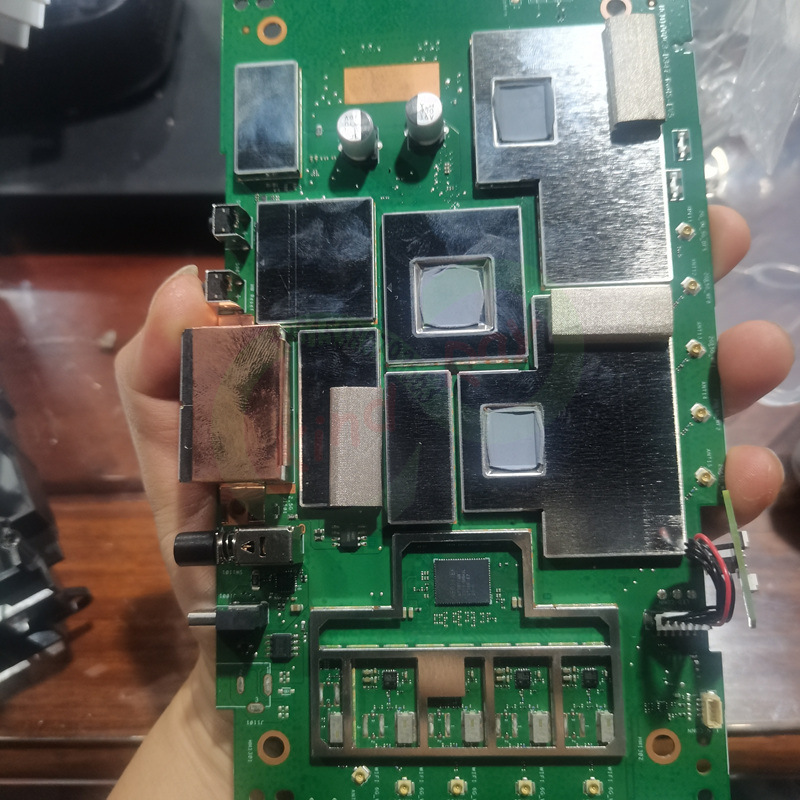

Smart 5G Hub

Get ready for the latest innovation in home internet. The Smart 5G Hub is here. So, you get ultrafast speeds without the need for a fixed phone line.



With speeds as fast as fibre broadband, the Smart 5G Hub is perfect for gaming, streaming and downloading in Ultra HD and 4K – with average speeds of 146mb/s. You won’t need to wait for an engineer to install it either – just take it out of the box for a 5G experience across all your WiFi connected devices.

You can get our Smart 5G Hub on our unlimited data plan, so you can do a whole lot more streaming, gaming and everything else you love online.

The Smart 5G hub also supports the latest WiFi technology to help you get the most out of our 5G speed.

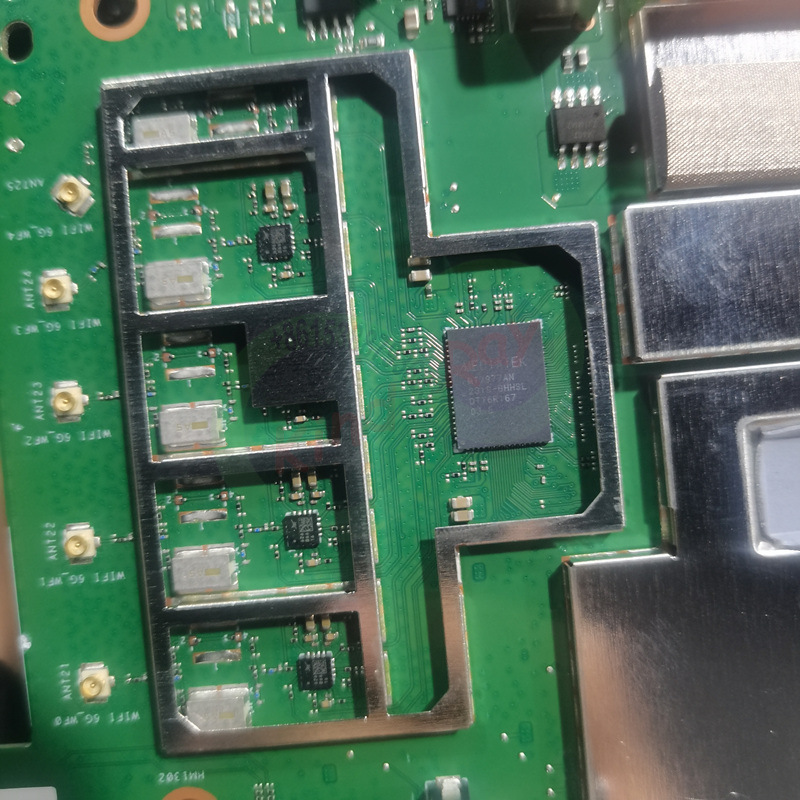

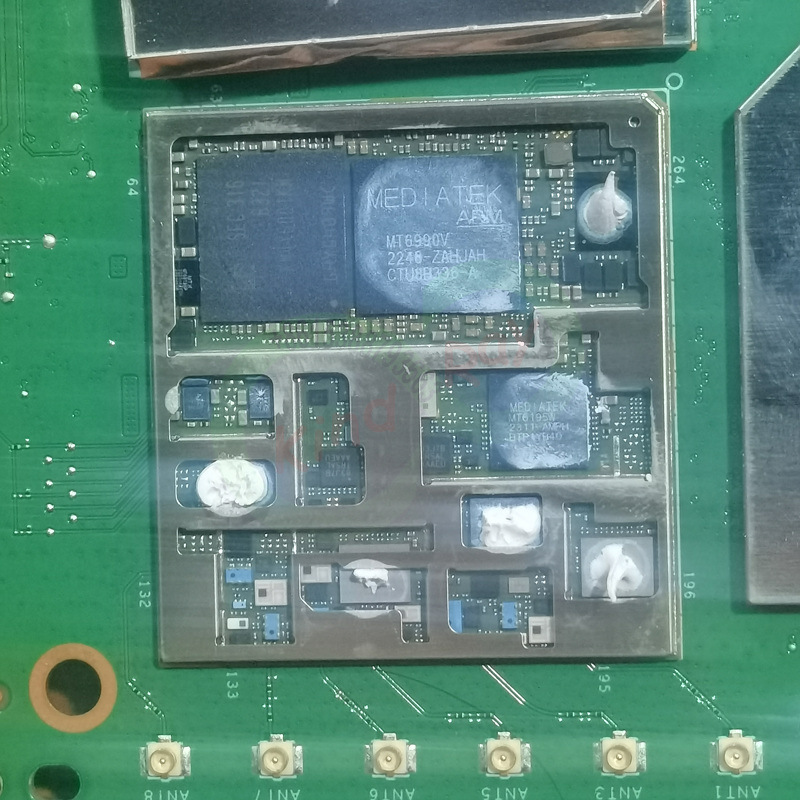

MediaTek T830

性能强劲的 Sub-6GHz 全频段 5G 平台，符合 3GPP R16 标准，可用于 5G 固定无线接入（FWA）和移动热点 CPE 设备

，支持 Wi-Fi 6/6E/7。具备丰富功能的 SoC助力设备制造商打造设计精巧的高性能、高速的 CPE 产品，例如固定无线接入（FWA）和移动热点（Mi-Fi）。

• T830 提供高达 7Gbps的5G 网络速率，具超过了大多数固定线路的速度，运营商可使用现有的蜂窝网络基础设施来降低铺设电缆或光纤的成本。
• T830 丰富且完善的功能可降低ODM 和 OEM 厂商的终端开发成本，缩短研发周期，加速上市进程。
• T830 可为精巧型设备提供高速网络连接性能，易于安装省���省力，可自由放置在室内各个角落，不受限于电话或光纤线路位置的约束。



Connects over 100 devices

With the ability to connects over 100 devices, you can keep the whole home connected on multiple devices.

可以接入100台设备



Ultrafast speeds

If you live in a slow speed area, our 5G WiFi can give you faster speeds over the 5G network.

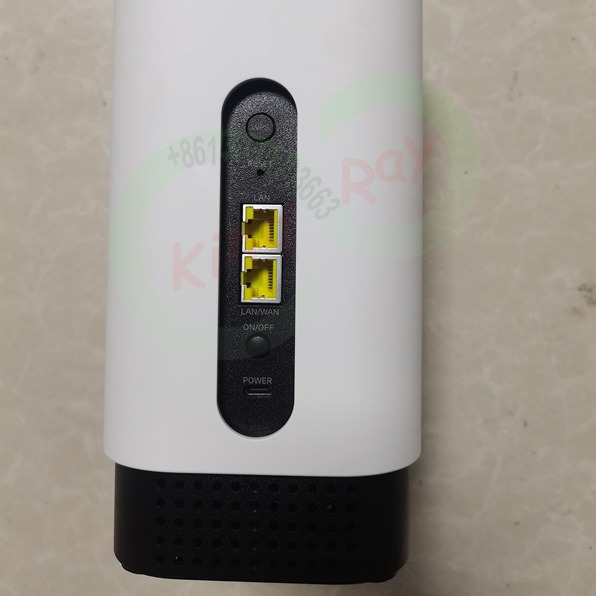

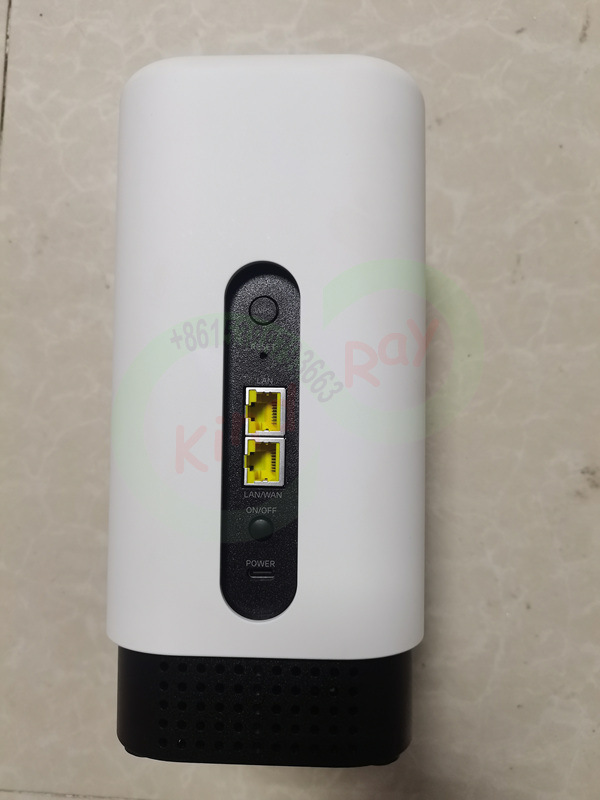

LAN Port

Smart 5G Hub includes a Local Area Network port for improved connectivity

Great value data plans

Don’t worry if you don't know how much data you need – you can increase your plan at any time.



Processors

CPU Types

Arm Cortex-A55

Max CPU Frequency

2.2GHz

Cores

Quad (4)

Memory & Storage

Memory Type

LPDDR4x / LPDDR5

Storage Type

nMCP suggested. SPI, eMMC 5.1 and ONFI supported

Local Connectivity

Wi-Fi / Bluetooth

MediaTek Wi-Fi & Bluetooth combo solutions available

Ethernet

1/2.5/5/10GbE

Peripheral Interfaces

Key Peripheral Interfaces

• 3x PCI-Express for connection to Wi-Fi / Bluetooth combo chip
• USXGMII for connection to external LAN switches
• DSI display interface for external displays up to 720p
• 1x PCM/SPI for connection to external SLIC for RJ11 phone ports
• 1xUSB 3.2 Gen-1

Cellular Connectivity

Cellular Technologies

• Sub-6 (FR1)
• 5G-CA
• 4G-CA
• 5G FDD / TDD
• 4G FDD / TDD

Specific Functions

SA & NSA modes; SA Option2, NSA Option3 / 3A / 3X; DL 4CC up to 300 MHz; DL/UL 256QAM

Peak Download Speed

7.01Gbps (SA)

Peak Upload Speed

2.5Gbps (SA)

GNSS

• GPS L1CA+L5
• BeiDou B1I+ B2a + B1C
• Glonass L1OF
• Galileo E1 + E5a + E5b
• QZSS L1CA+ L5
• NavIC
