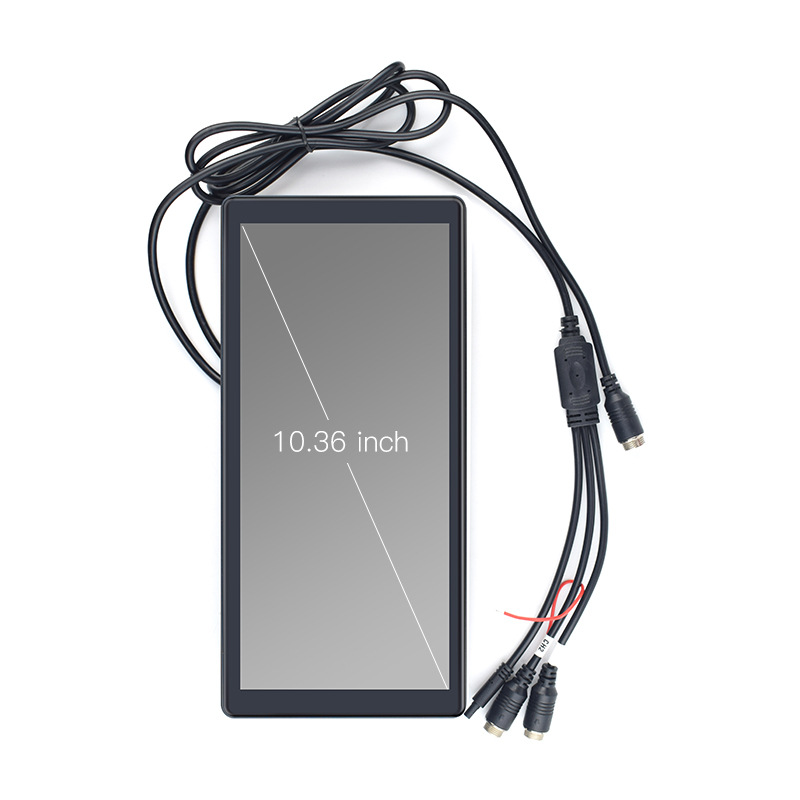

10.36-дюймовое HD зеркало заднего вида с двойным каналом BSD мониторинга слепых зон, запись вождения, ночное видение Starlight, звуковая и световая сигнализация
Offer ID: 772657964843
Оформить заказ
| Изображение | Цветовая классификация | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
 | Standard | ¥750.0 / ≈ 9 123 ₽ | 46 | 5461859575605 |
Статистика продавца
Свойства товара
Описание товара
Key Specifications/ Special Features:
2-channel front and rear (left and right) driving recorder, 720*1600 high-definition image quality, IPS screen, touch screen, BSD warning function, adjustable warning area, display supports voice control, can broadcast warnings, and loop recording;
A car mounted camera with IP68 waterproof function for starlight night vision, with a maximum length of 15 meters of double shielded aviation signal cable, ensuring stable signal transmission;
Equipped with IP65 level sound and light alarm, high volume, and real person voice prompt;
parameter
● Screen size: 10.36 inches
● Resolution: 720 * 1600
● Screen brightness: 800cd/m2
● Visual angle: 80/80/80/80 (L/R/U/D)
● Power supply: DC InPut 12V-24V MAX: 35V
● Signal interface: 2 channels 720P video input
● Video format: PAL/NTSC/AUTO
● Menu language: Chinese, English, Japanese, Korean
● Loop recording: Regular high-speed TF card, supporting up to 256G (self purchased)
● Wake free voice control: only supports Chinese
● Blind spot warning function: supports
● Operating temperature: -20~70 ℃
● Camera resolution: 720P
● Night vision: Starry night vision
● Camera protection level: IP68
● Alarm volume: approximately 100DB
Touch screen:
Internal real menu and UI demonstration

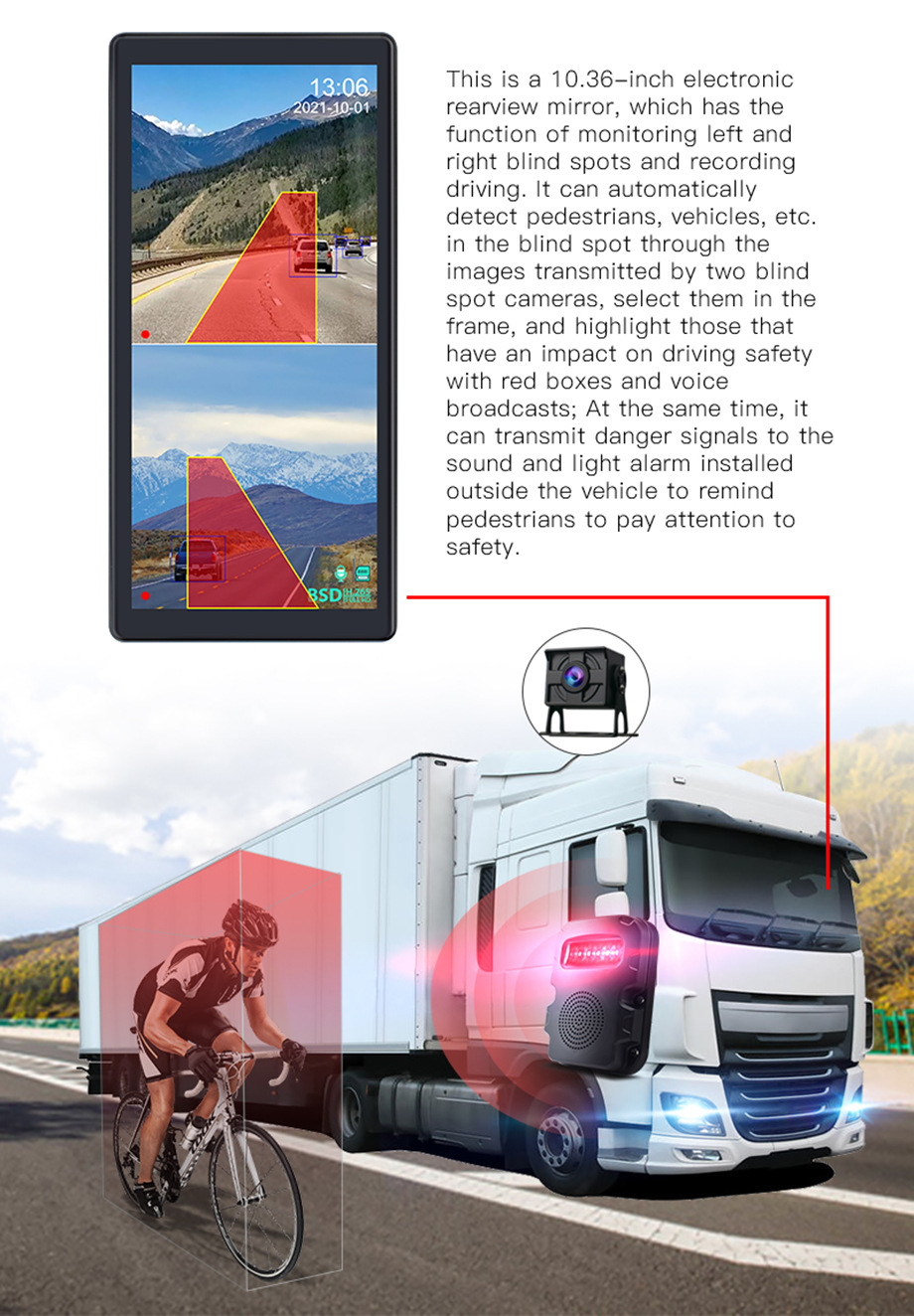

Working principle of BSD

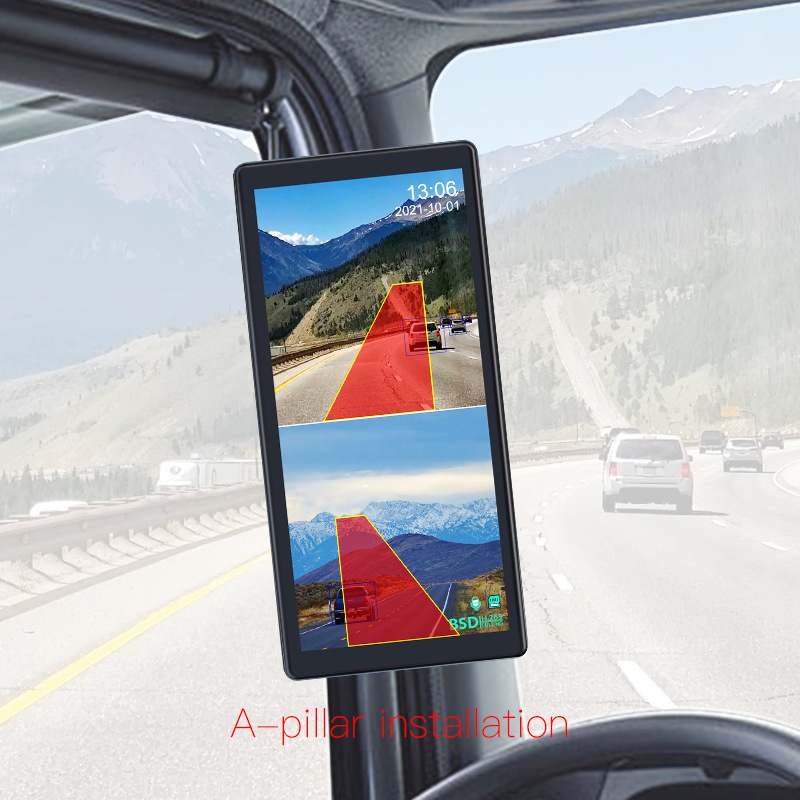

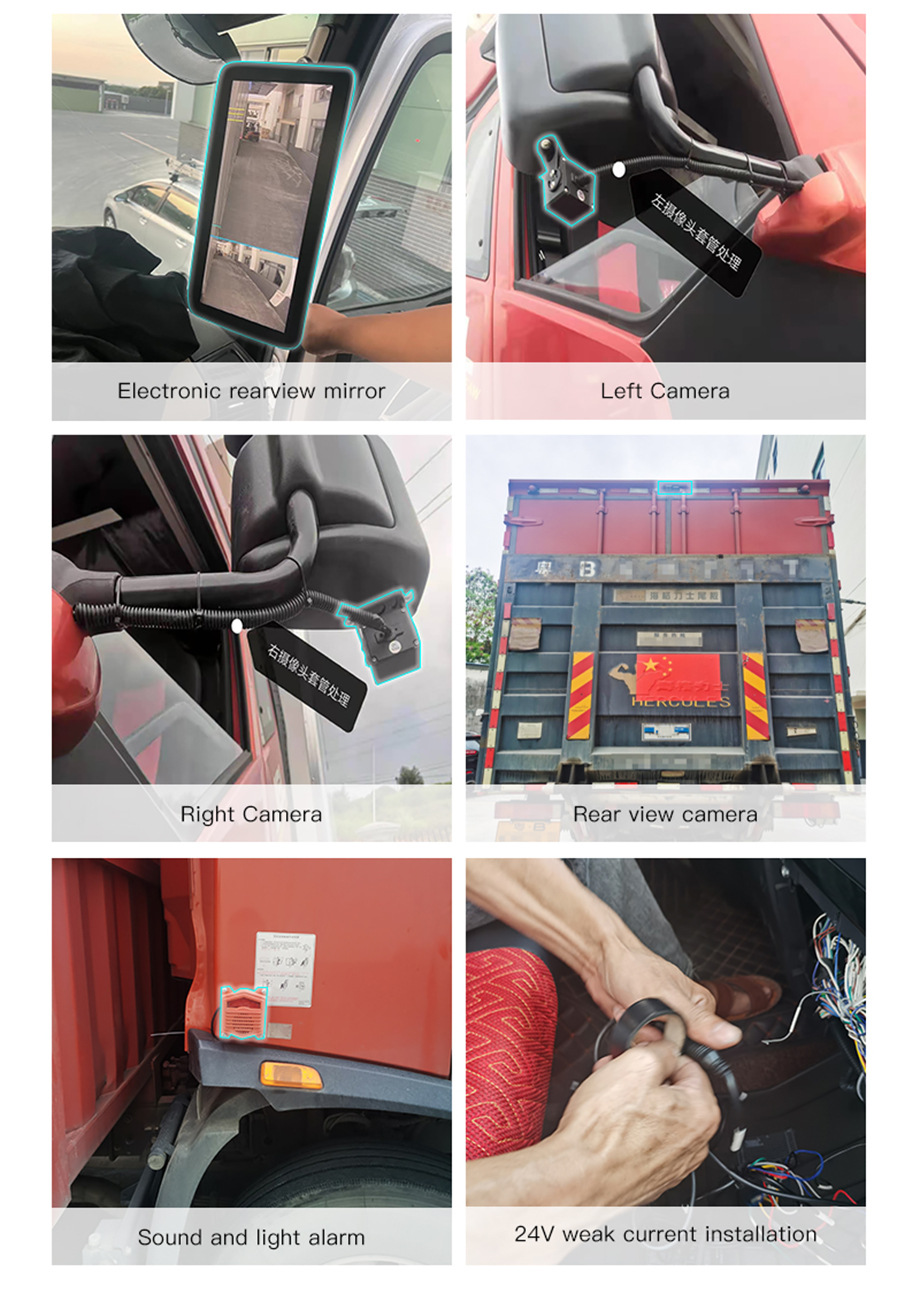

Installation reference:
The display screen can be installed on the A-pillar according to the picture, the left and right cameras can be installed below the rearview mirror, the reverse camera can be installed on the top according to the picture, and the sound and light alarm can be installed outside the right side of the driver's cab. It is recommended that professionals install it. All wiring must be in a weak current environment of 12-24V, and the maximum should not exceed 35V to prevent breakdown of internal components of the display. The exposed areas need to be insulated.

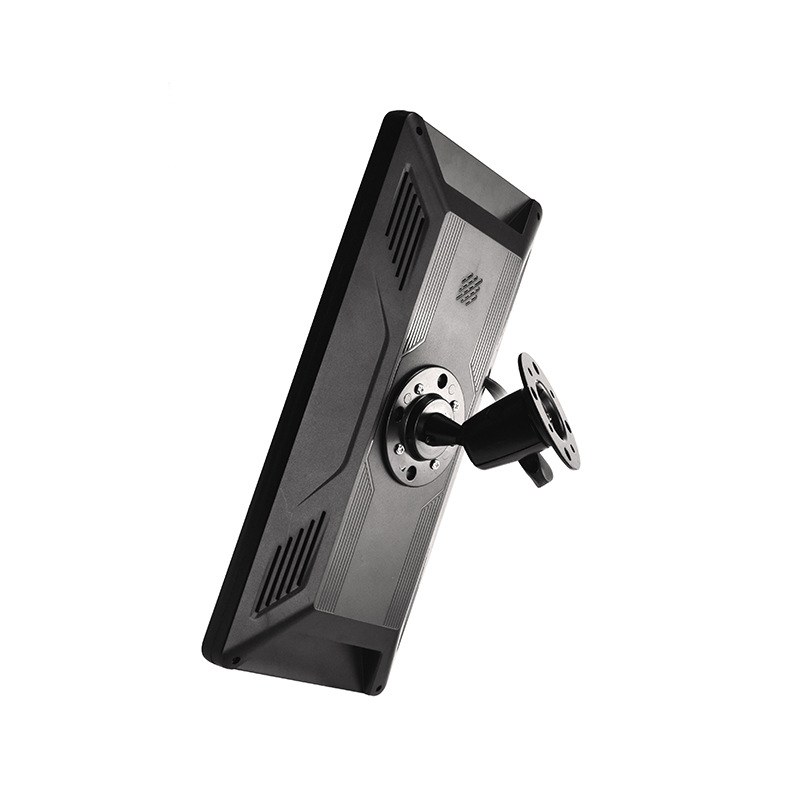

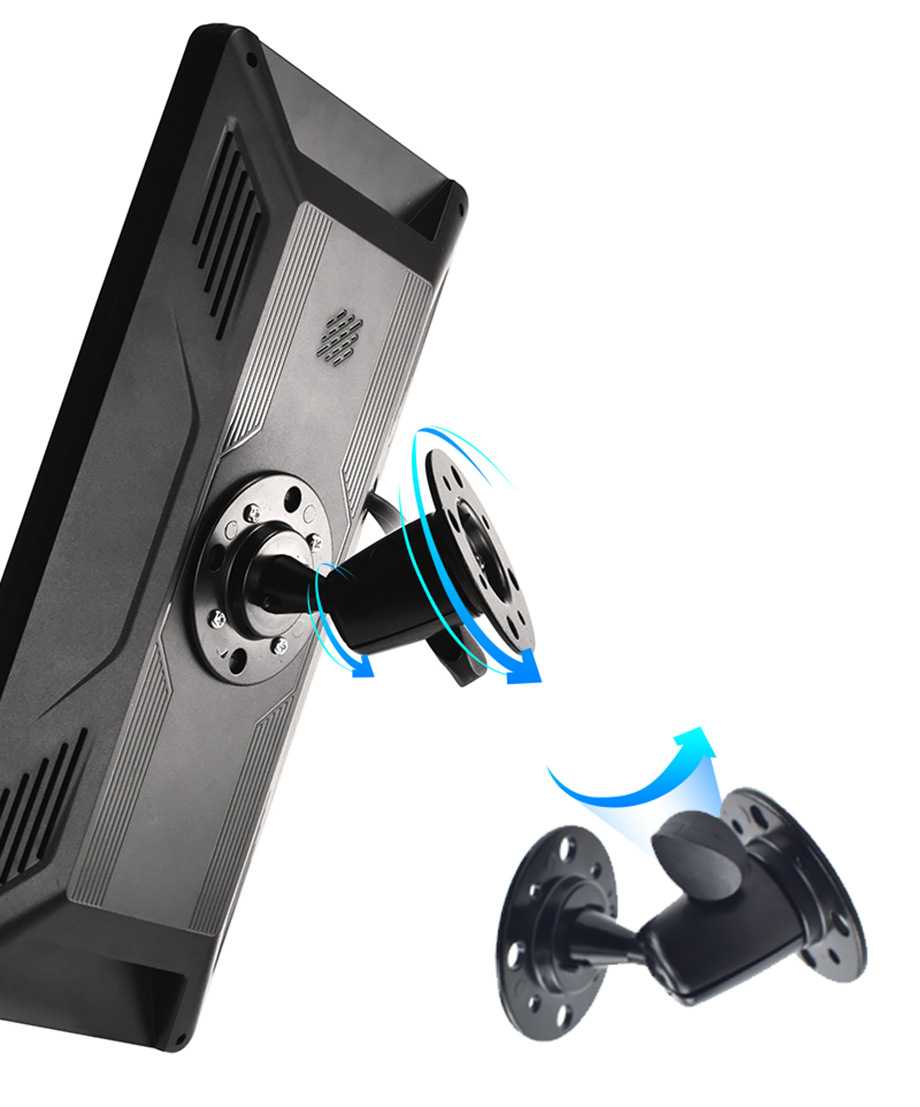

Metal bracket
Using a metal bracket, it is stable and sturdy, and can be flexibly adjusted from all angles.

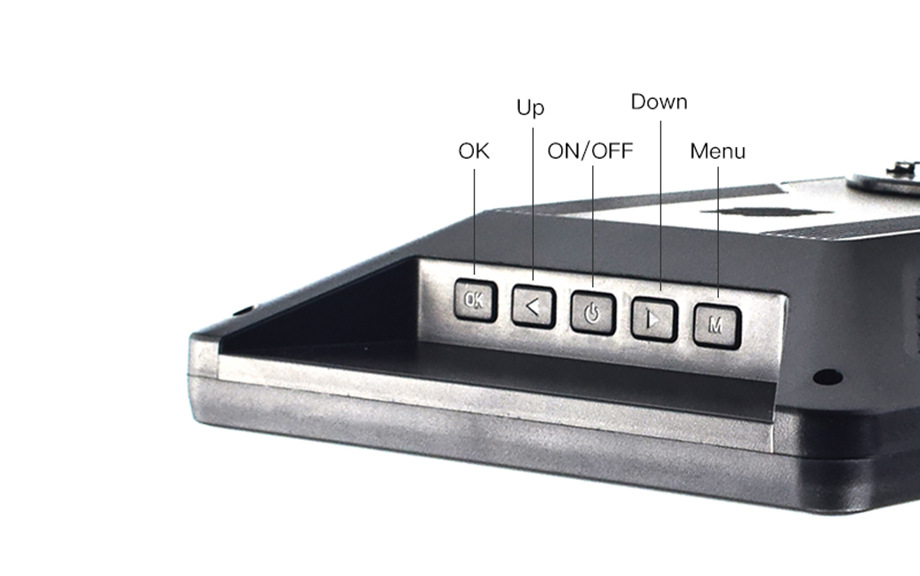

Key operation:
Although there is touch screen control, the display also comes with traditional buttons.

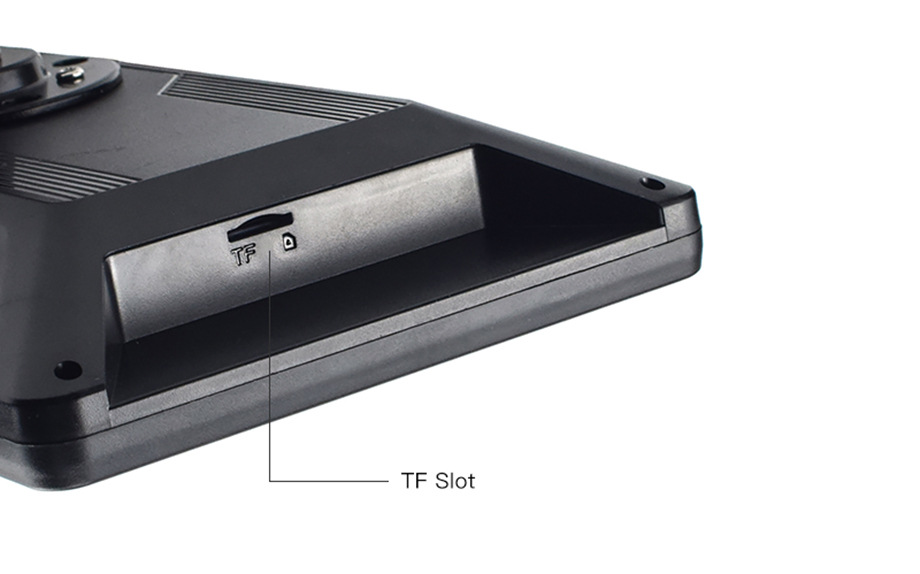

Memory card:
Please choose to purchase a legitimate high-speed TF card, which supports a maximum of 256GB. Insert the storage card as shown in the diagram, with the gold finger facing the screen. After inserting the card, it needs to be formatted.

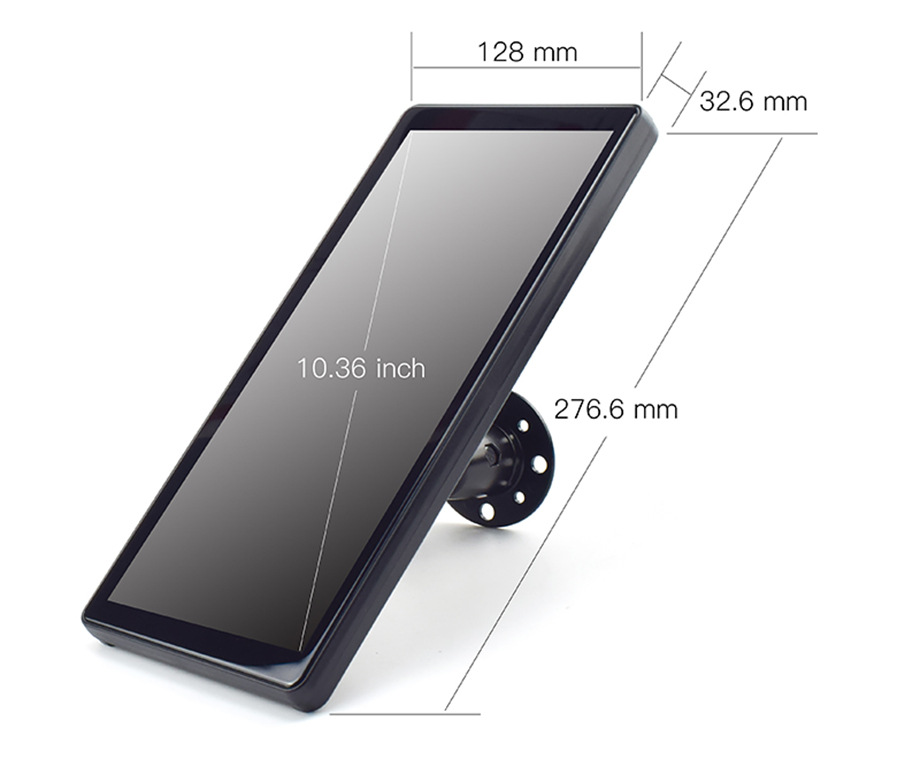

Product size:
The appearance dimensions of the electronic rearview mirror are L128mm * W276.6mm * H32.6mm, and the screen size is 10.36 inches

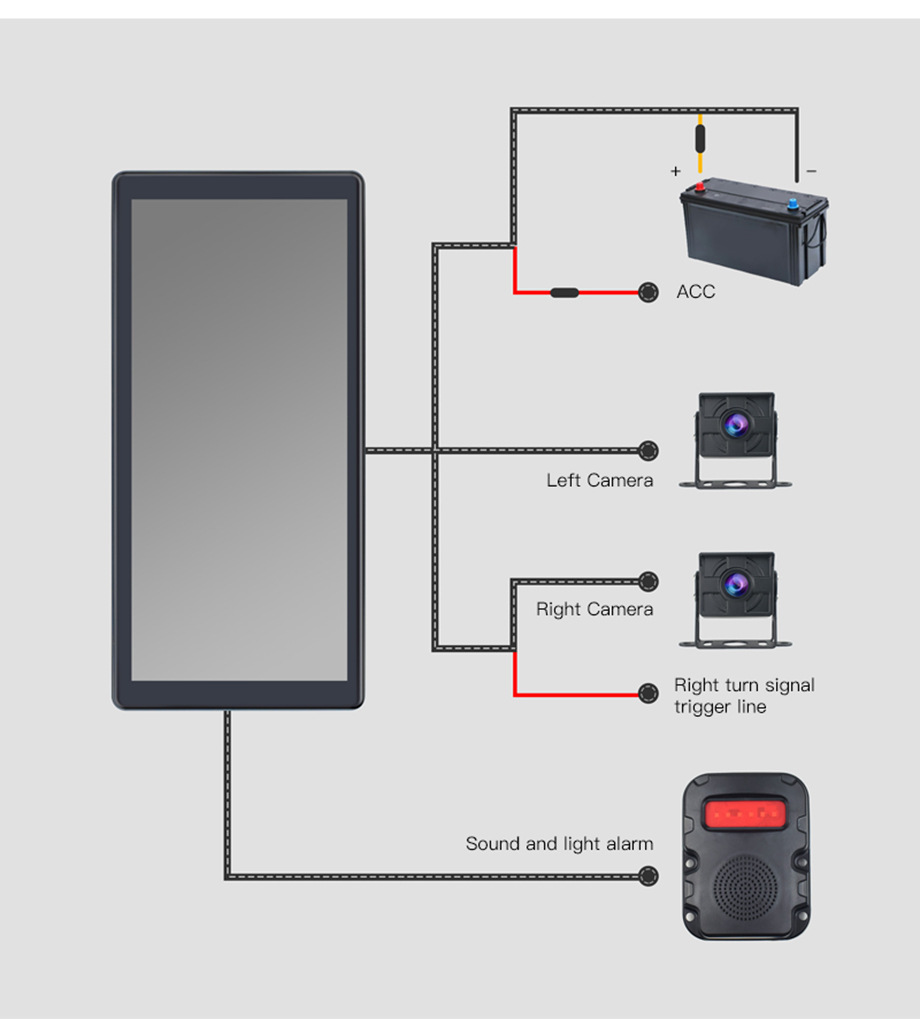

Wiring method:
The diagram below is for reference only and shall be subject to the instructions or wiring harness markings.

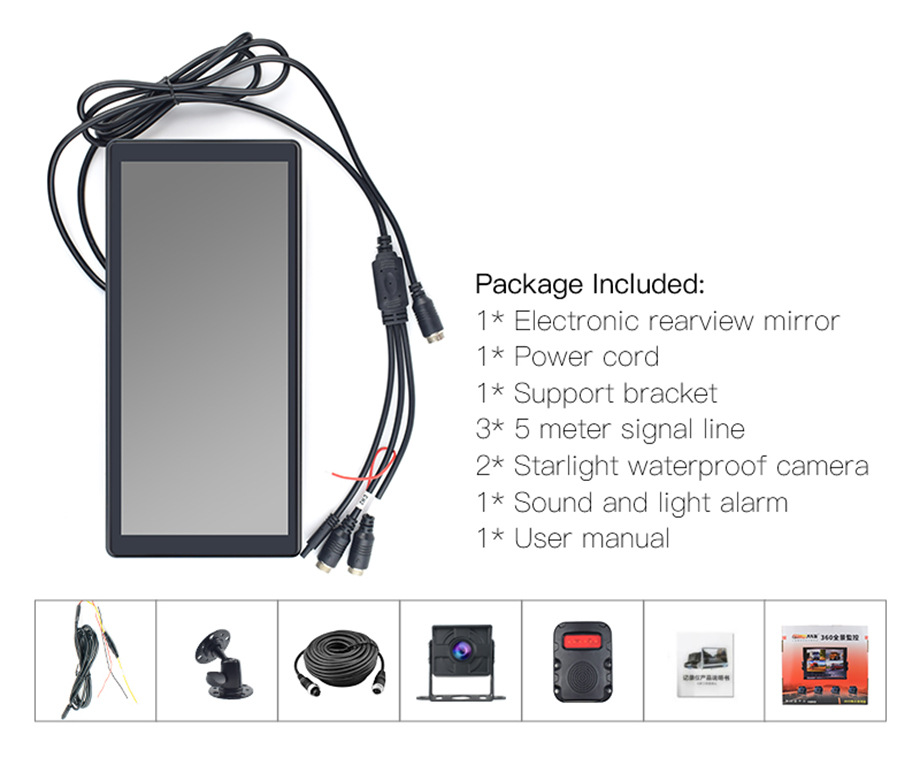

Packaging list:
The complete list includes displays, cameras, signal cables, alarms, and manuals.
Factory strength
Focused on the field of large vehicle monitoring for 10 years
Obtaining patents and certifications
