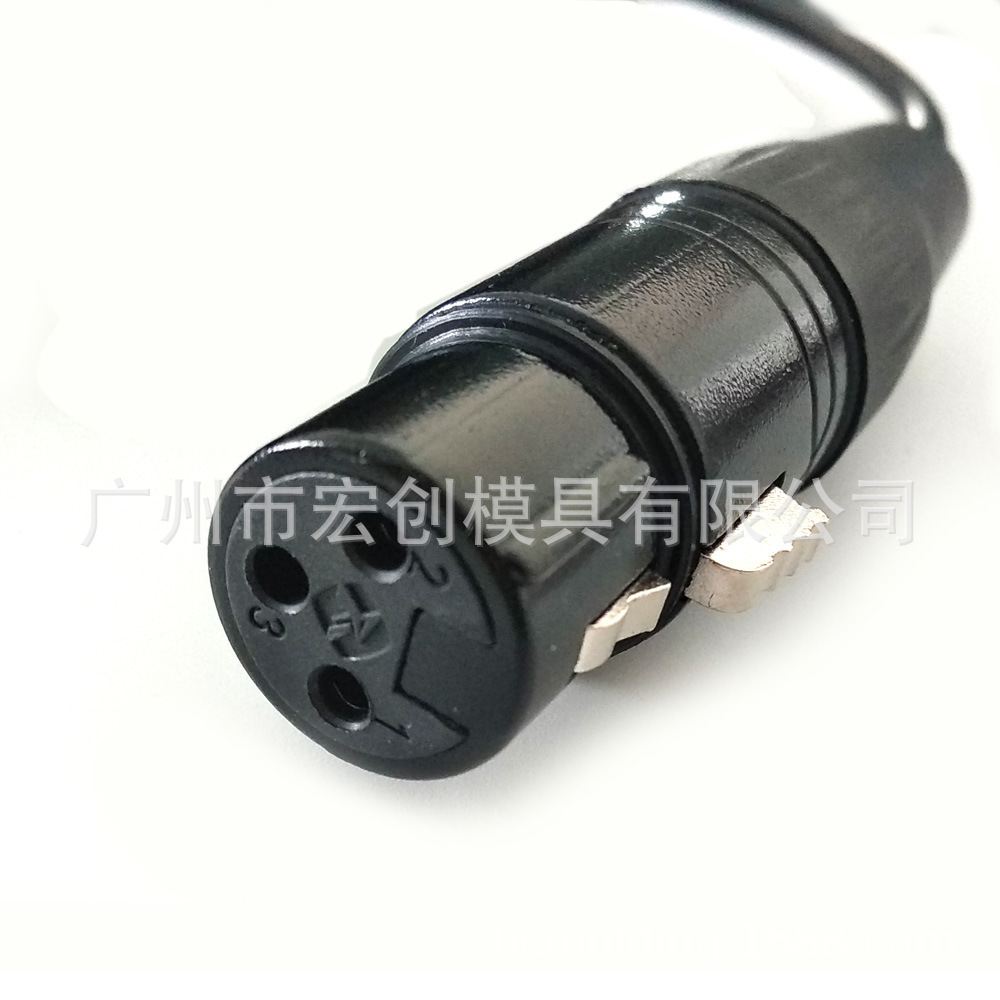

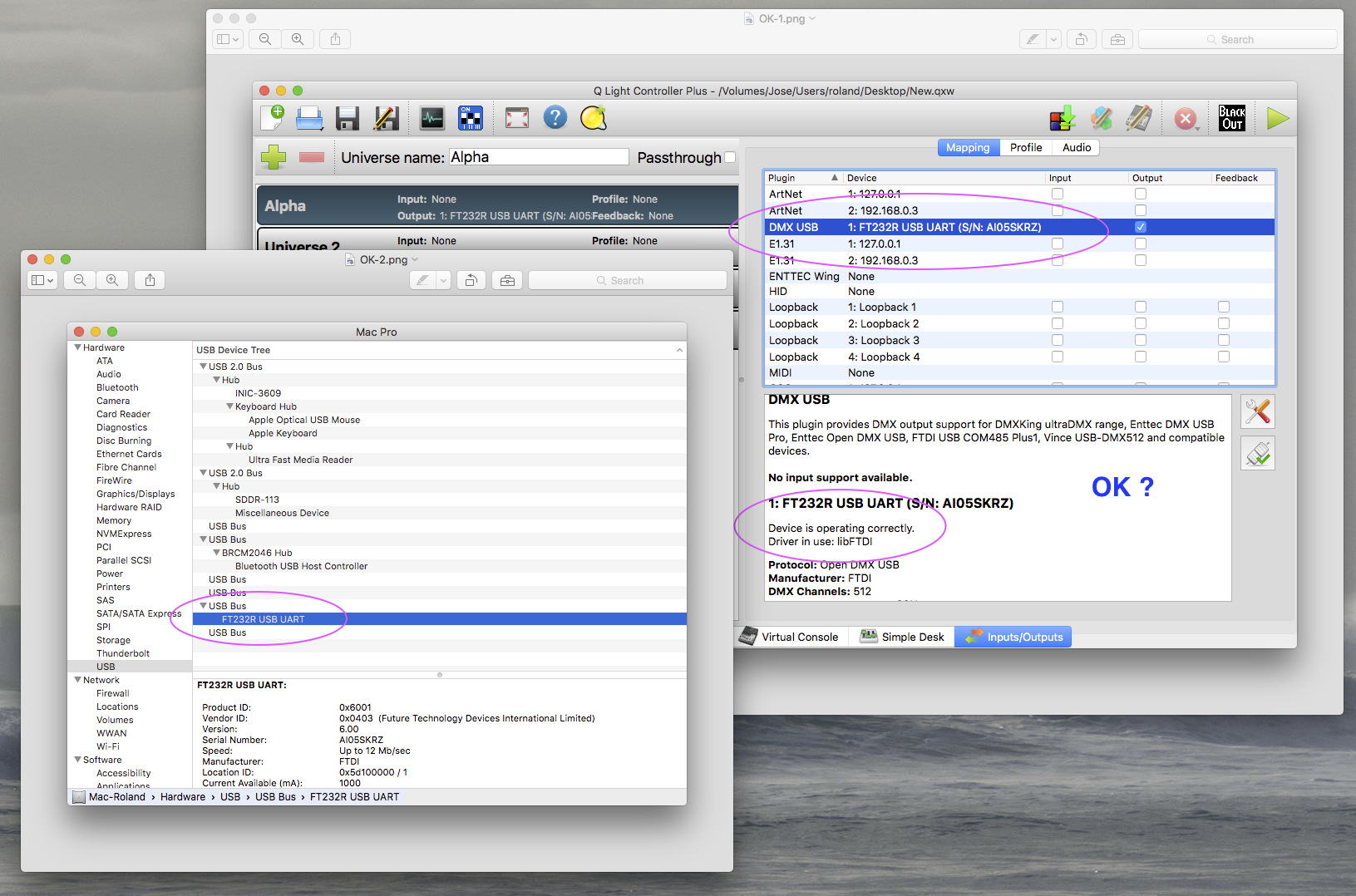

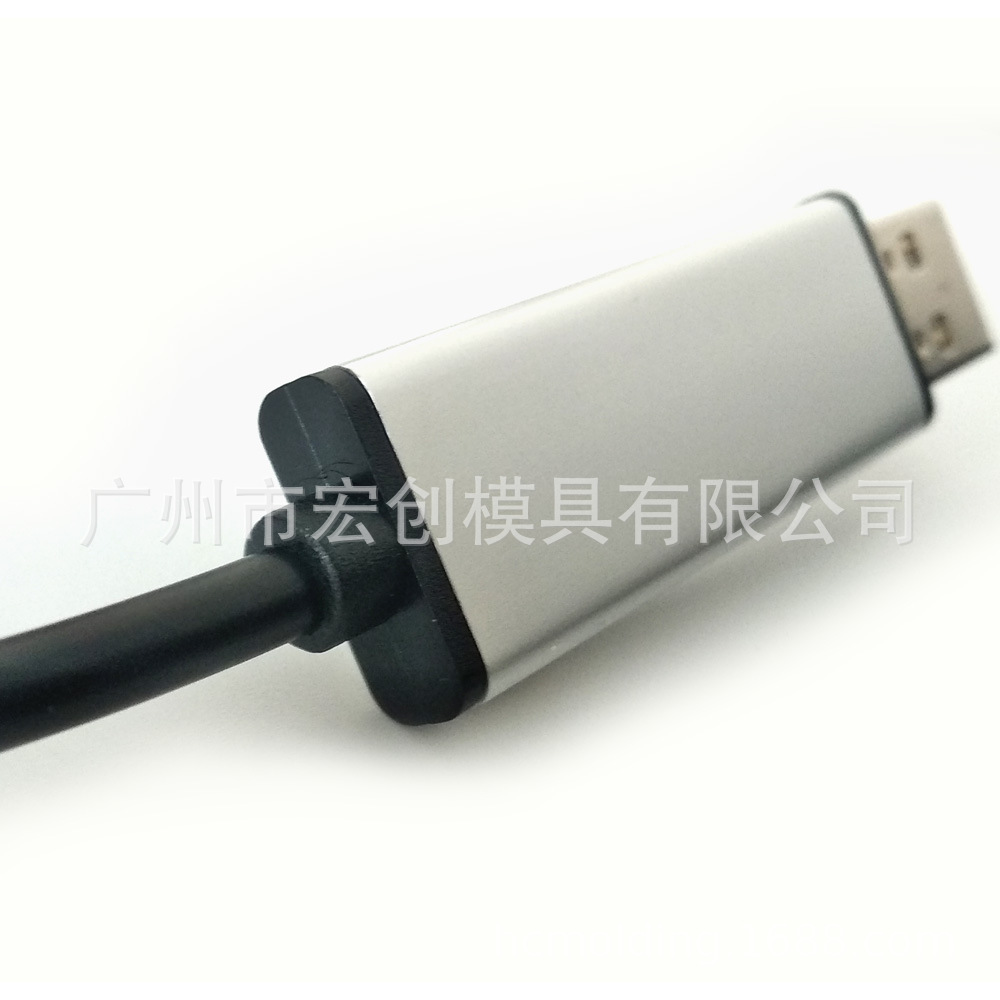

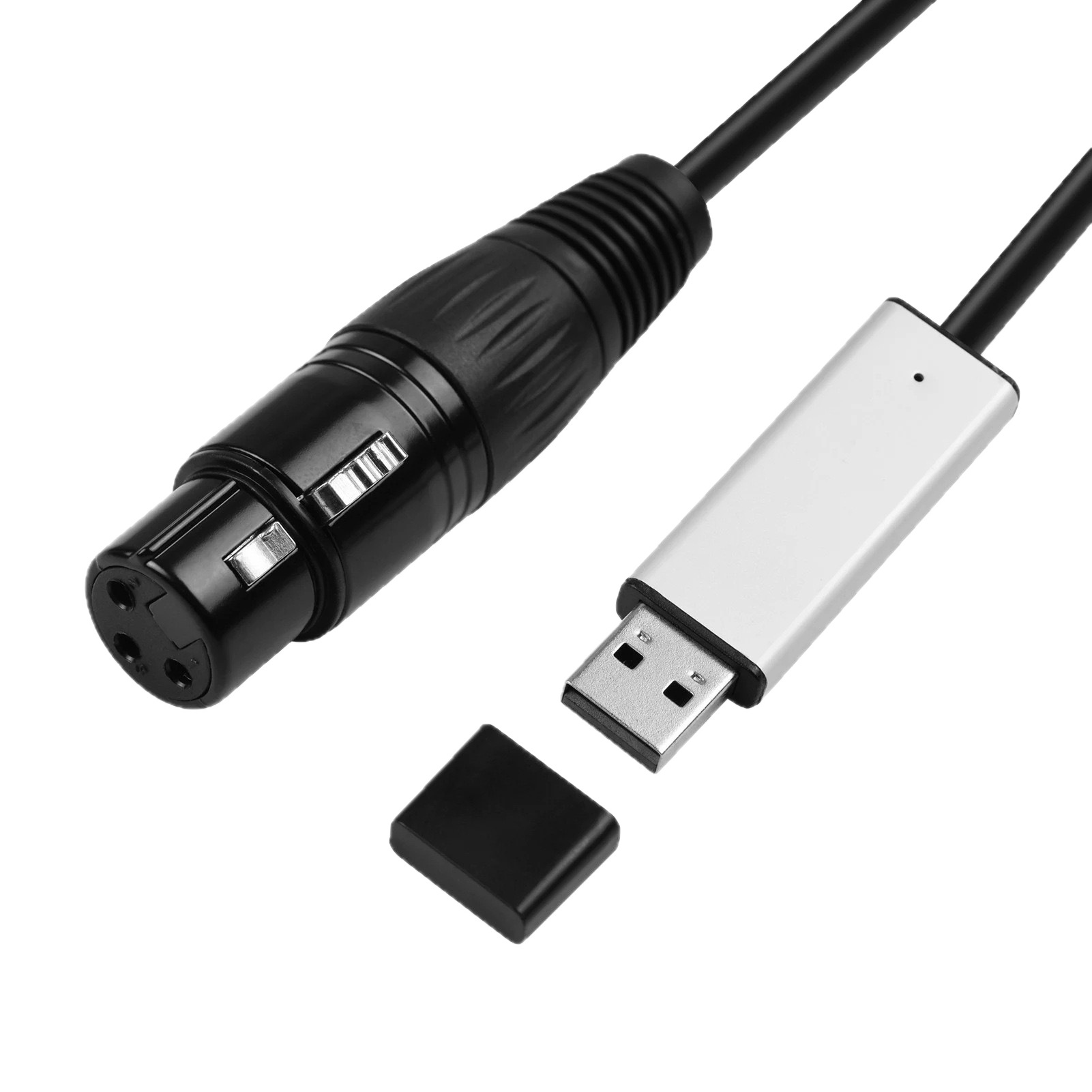

DMX512 контрольная линия, uDMX, конфигурационная линия для освещения сцены и дымовой машины, адаптер Q-light Freestyler









新品 FTDI USB RS485 DMX512舞台灯光控制线

USB DMX512灯光控制线电脑连

DMX控制台参数配置线MADRIX5适配器线

使用前需要装驱动 请登录FTDI官网

FTDI drivers download link:

http://www.ftdichip.com/Drivers/VCP.htm

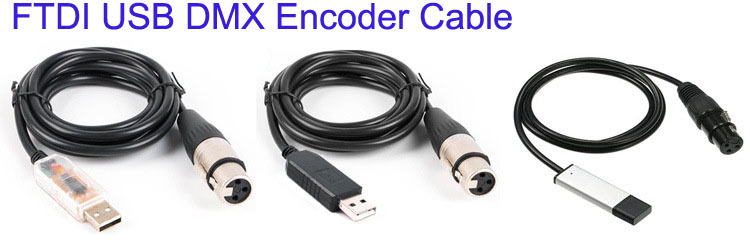

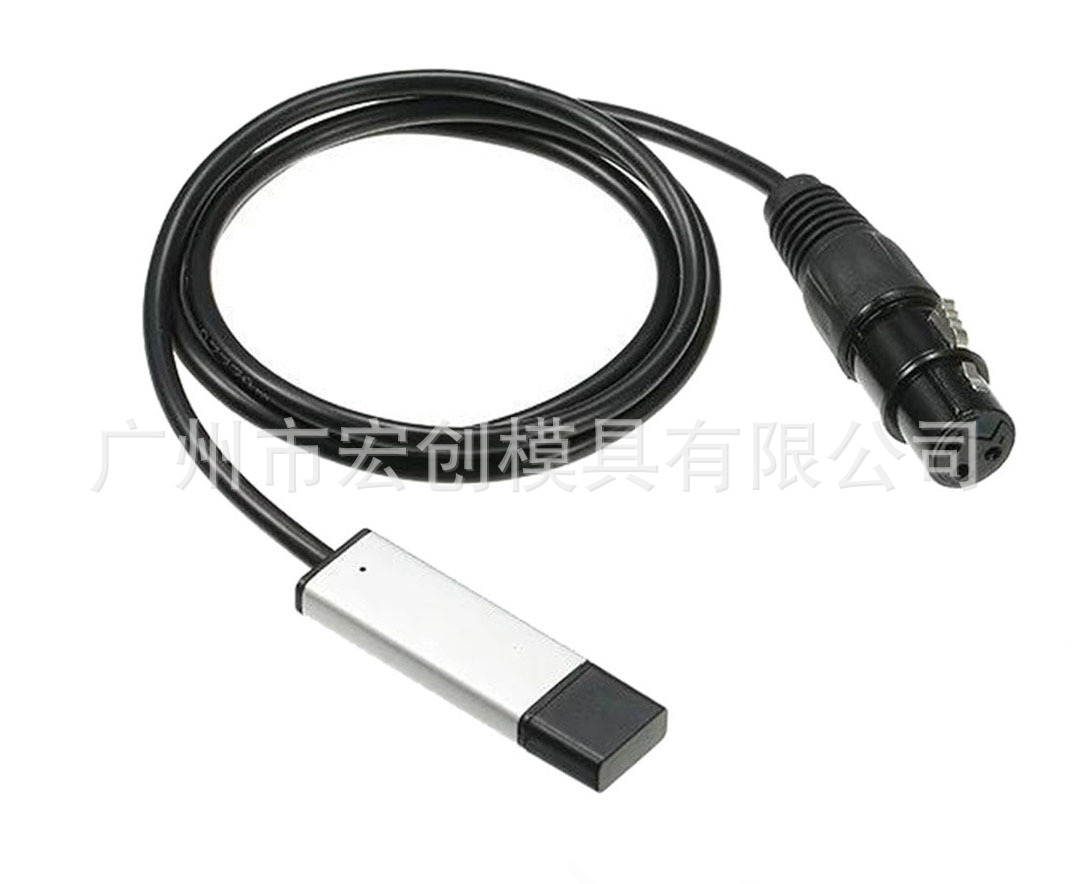

USB转DMX512控台适配器线舞台灯光电脑控制线调试线DMX编码器线

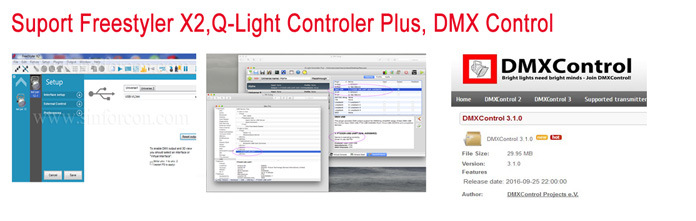

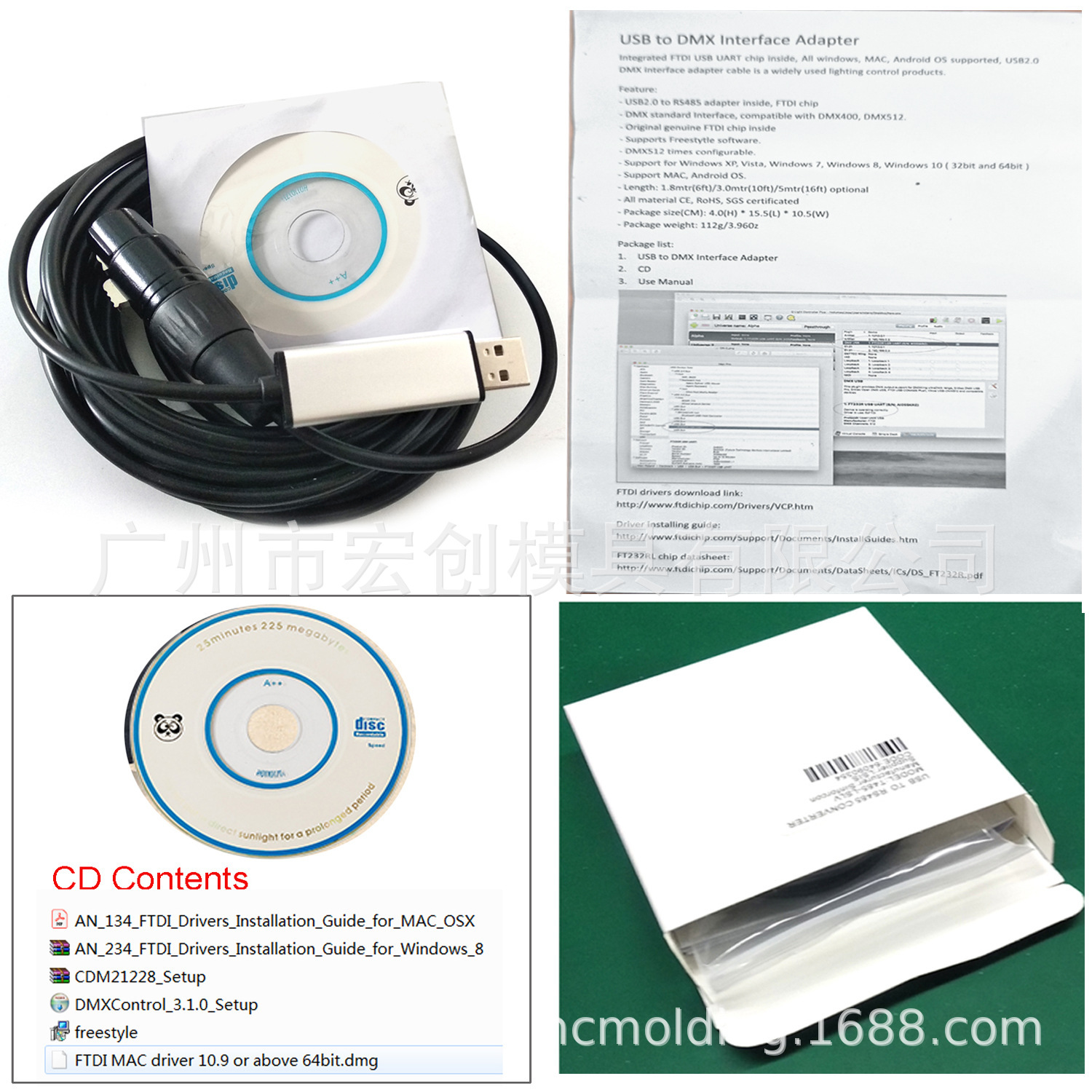

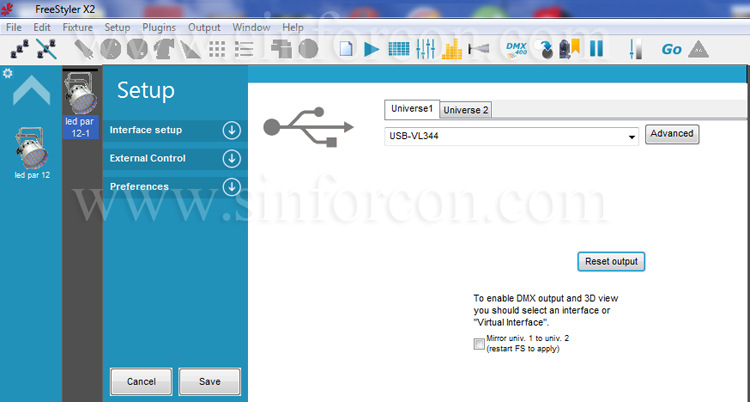

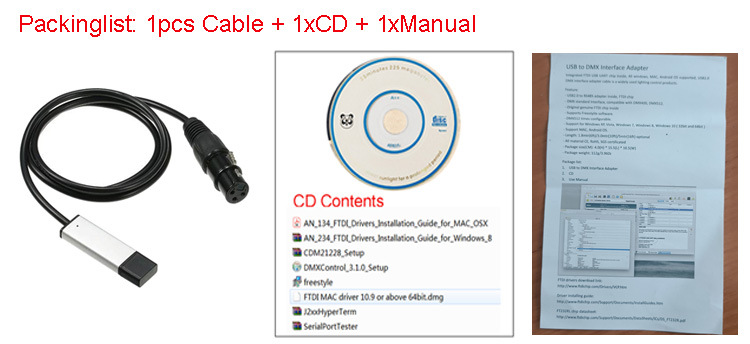

可免费提供Freestyler调试软件 并提供驱动安装 软件调试指引

原装FTDI进口芯片 支持Win 7/8/10/11 安卓 苹果



FT232RL features:

Single chip USB to asynchronous serial data transfer interface.

Entire USB protocol handled on the chip - No USB-specific firmware programming required.

UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

Fully assisted hardware or X-On / X-Off software handshaking.

Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).

In-built support for event characters and line break condition.

New USB FTDIChip-ID? feature.

New configurable CBUS I/O pins.

Auto transmit buffer control for RS485 applications.

Transmit and receive LED drive signals.

New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.

FIFO receive and transmit buffers for high data throughput.

256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.

Adjustable receive buffer timeout.

Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.

New CBUS bit bang mode option.

Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.

Device supplied preprogrammed with unique USB serial number.

Support for USB suspend / resume.

Support for bus powered, self powered, and high-power bus powered USB configurations.

Integrated 3.3V level converter for USB I/O .

Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.

True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.

High I/O pin output drive option.

Integrated USB resistors.

Integrated power-on-reset circuit.

Fully integrated clock - no external crystal, oscillator, or resonator required.

Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.

UART signal inversion option.

USB bulk transfer mode.

3.3V to 5.25V Single Supply Operation.

Low operating and USB suspend current.

Low USB bandwidth consumption.

UHCI / OHCI / EHCI host controller compatible.

USB 2.0 Full Speed compatible.

-40°C to 85°C extended operating temperature range.

FTDI drivers download link:

http://www.ftdichip.com/Drivers/VCP.htm

Driver installing guide:

http://www.ftdichip.com/Support/Documents/InstallGuides.htm

FT232RL chip datasheet:

http://www.ftdichip.com/Support/Documents/DataSheets/ICs/DS_FT232R.pdf
