Машина для печати на крышках, машина для печати на коробках, полностью автоматическая машина для печати на крышках

Q-PM150型平面印盖机

Type JYQ-PM150 Flat Lid Printing Machine

产品概述

Product Overview

    JYQ - PM型多色平面印盖机是由公司自主研发设计的一款新型平面印刷机，该机型采用先进的干胶转印技术，配合高精的制造工艺、合理的结构、高品质的配件，确保机器耐用、实用、印刷品质高、效率高、操作方便等特点。广泛应用于各种形状平面盒盖等的表面印刷。

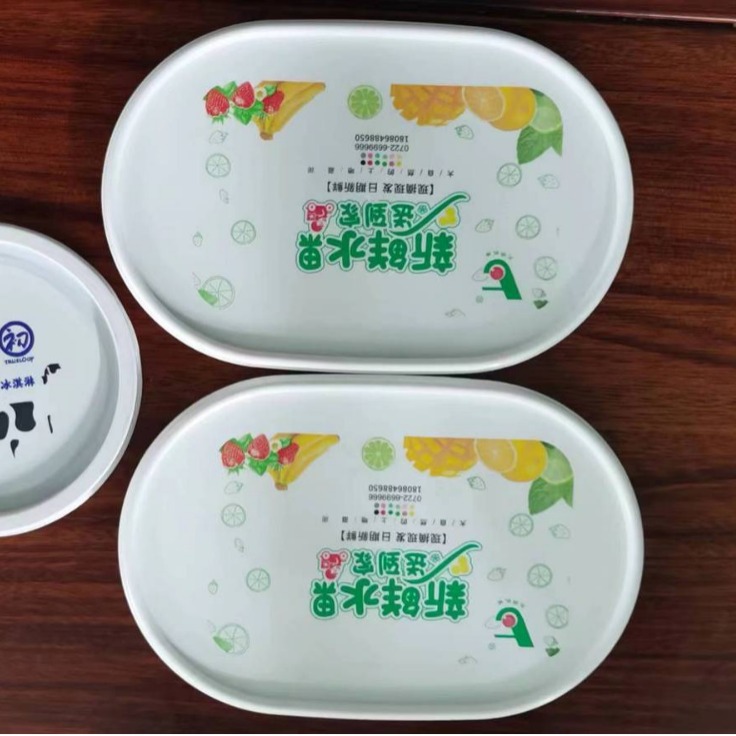

JYQ - PM multi-color lid printing machine is a new type of flat printing machine which is independently developed and designed by our factory. This model combines advanced dry glue transfer technology, with high-precision manufacturing technology, reasonable structure and high-quality accessories to ensure that the machine is durable, practical, high-quality printing, high-efficiency, and easy to operate. It is widely used in surface printing of various shapes of flat box and covers.

产品特点

Features

1. 1. 本机配备自动上料螺旋分杯器，分杯快捷、简便、快速，可适应各种形状的平面盒盖；

1.This machine is equipped with an automatic feeding spiral lid divider, which is simple and fast. It can be used for various shapes of flat box and covers.

2.本机配备印前火焰表面处理，可使印刷图案更加清晰、附着力更强，大大提高了印刷产品的印刷质量；

2. This machine is equipped with pre-press surface flame treatment, which can make the printing pattern clearer and the adhesion stronger, and greatly improves the printing quality of the products;

3.本机采用PLC输入自动控制系统，可设置自动控制机器运行速度，保护机器不受损坏；

3.This machine adopts PLC input automatic control system, which can be set the automatically control running speed to protect the machine from damage;

4.配备自动堆叠收料系统，可调节尺寸，各种大小的盖子随心调节，方便快捷；

4.Equipped with an automatic stacking and receiving system, the size can be adjusted according to the various sizes of lid/covers, which is convenient and quick;

5.全自动UV固化系统，干燥快，附着力强；

5. The machine is equipped with fully automatic UV curing system, which is fast drying and with strong adhesion;

6.冷却系统采用抽风式设计，冷却快，风道采用多孔式传动皮带，使产品在经过UV固化系统时吸附牢固；

6. Adopting the draft cooling system, it can be fast cooling.The air duct adopts a porous transmission belt to make sure the product can be firmly adsorbed when it pass through the UV curing system

7.本机采用底座固定式设计结构，底盘更稳定、转动更加平稳，可使机械使用寿命更长以及印刷质量更稳定；

7.Adopting a base fixed design structure, the chassis and running is more stable, which can make the service life of the machine longer and the printing quality more stable.

8.本机印刷最大幅面可达到150*120mm,最大印刷深度可至45mm,最大印刷速度可达10000pcs/h；

8.The max. printing size of this machine can reach 150*120mm, the max. printing depth can reach 45mm, and the max. printing speed can reach 10000pcs/h;

9.本机收料部采用自动计数装置，计数准确。

9. Equipped with an automatic counting device of the receiving part, the counting is accurate.

产品技术参数

Product Technical Parameters

印刷范围 Printing Size	最大印刷深度 Max. Printing Depth	最高印刷速度 Max. Printing Speed(pcs/h)
4橡皮模式150*120mm（长*宽） 4pcs Rubber mode: 150*220mm(Length*Width)	45mm	8000-10000pcs/h
机器外形尺寸 Machine Dimension	主电机功率 Motor Power	总功率 Total Power
5220*890*1520mm	5.5KW	12kw
