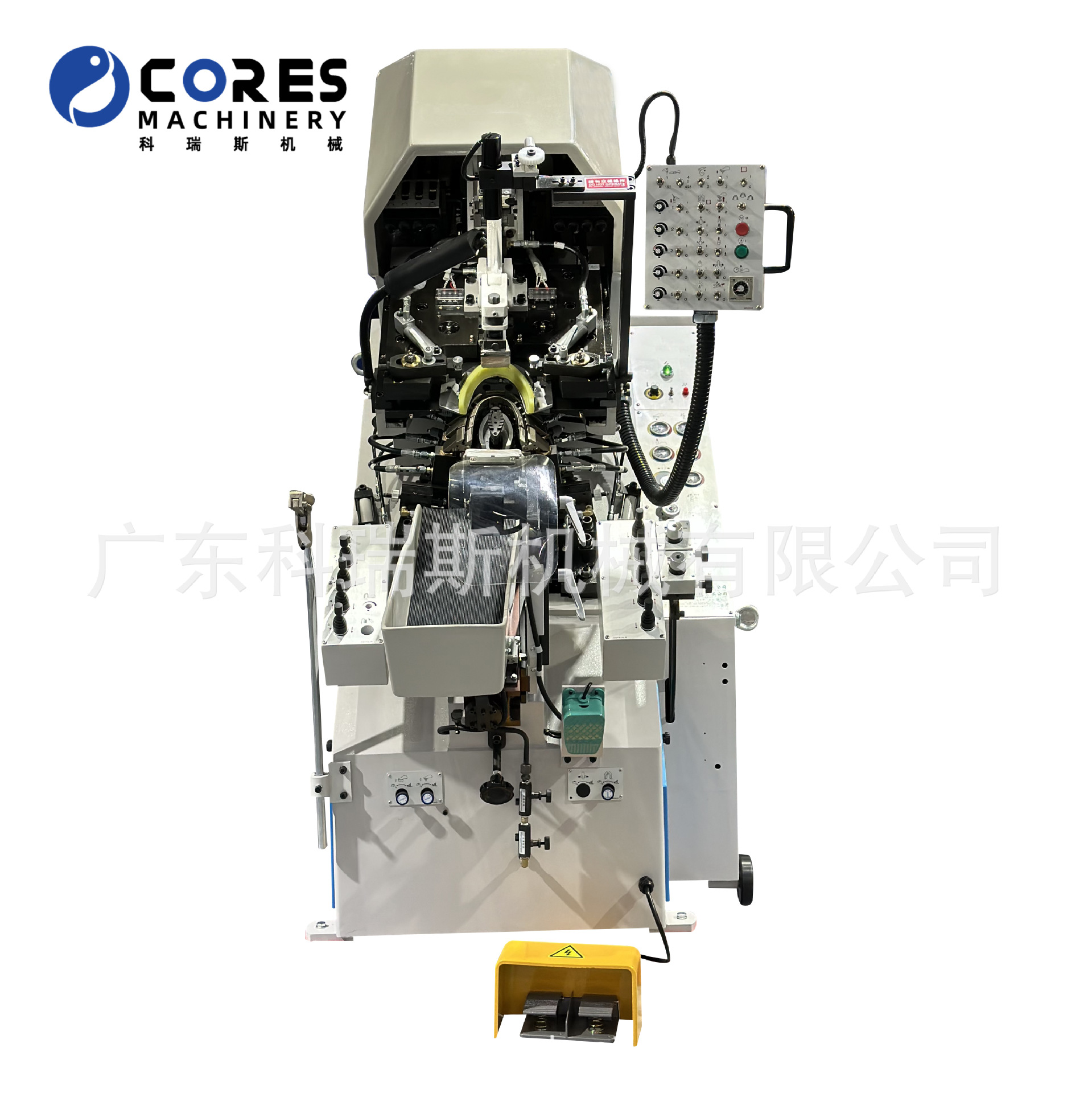

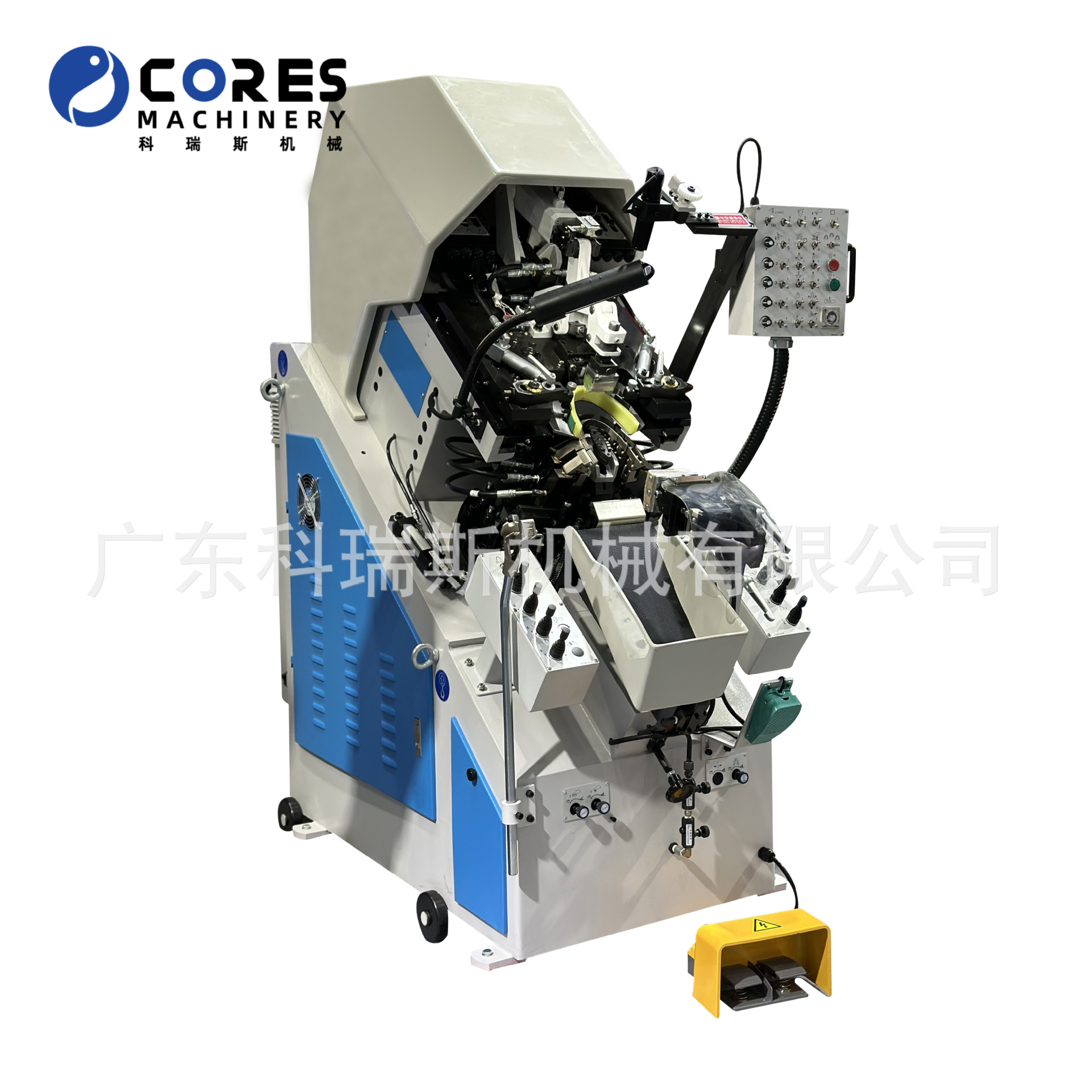

Машина для передней обложки с семью захватами без клея
Цена
¥63000.00 - ¥65000.00 / ≈ 766 302 ₽ – 790 629 ₽
MOQ: 1 pcs
1шт - ¥65000.00 |5шт - ¥63000.00
Продавец
广东科瑞斯机械有限公司
Рейтинг
0
Продано
0
Всего
В наличии
43
SKU суммарно
Offer ID: 918568500696
Статистика продавца
4.0
Сервис
Источник: API 1688
4.1
Логистика
Источник: API 1688
5.0
Споры
Источник: API 1688
3.6
Оформление
Источник: API 1688
3.0
Консультация
Источник: API 1688
28%
Повторные покупки
Источник: API 1688
3.6
Постпродажное
Источник: API 1688
Свойства товара
Номер заказа Front machine
Обработка и настройка Is
Номер товара 737B
Бренд Coris
Модель 737B
Мощность 1.75
Производственная мощность 250
Точка рабочего давления 50KG
Габаритные размеры (длина*ширина*высота) 1780*1000*2000
Размер упаковки (длина*ширина*высота) 1850*1200*2200
Брутто-Вес 1200*1000*2200
Чистый вес 1200
Применимый диапазон толщины Medium thick material
Тип продукта Brand new
Псевдоним продукта Upper tying machine
Тип группировочной машины Front machine
Цель Gang machine
Описание товара
机器用途及特点：
液压式前帮机（7爪）
1. 成型带和特殊轨道刮刀，使鞋面结帮均匀，美观大方，提升品质，结帮后不易倾斜。
2. 7爪独立设计，可单独调节，适应各种鞋头形状的结帮。自动平衡装置和刮刀前进自动下降原理是提升品质和产能的关键。
3. 刮刀具备点动和速度调节功能，使整个结帮控制的调节更加便捷。
4. 机器配备十字投影仪组件，方便矫正结帮，帮助新手轻松操作。
5. 刮刀内进上帮时，第五爪可以向内旋转。旋转角度可调，使鞋头球点更加紧密地贴合鞋楦。然后，借助辅助刮刀，鞋子即可完美地完成结帮。
6. 鞋楦支撑板高度可远程控制。提供数字指示，方便参考，使操作更轻松高效。爪子固定板快速调节：爪子固定板采用双轨结构，左右独立调节。爪子固定板旋转点不受空间限制，确保结帮质量。
Application&Features:

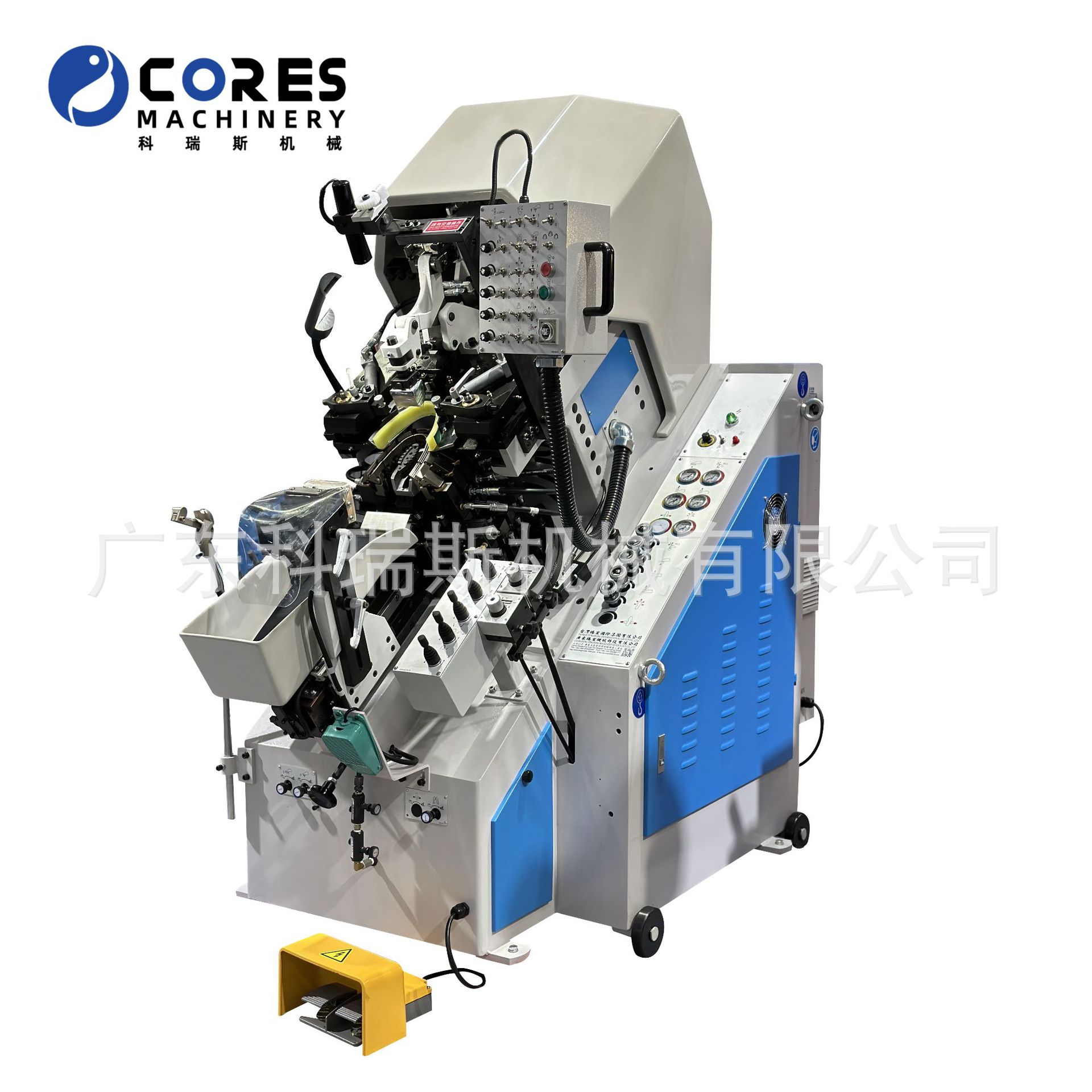

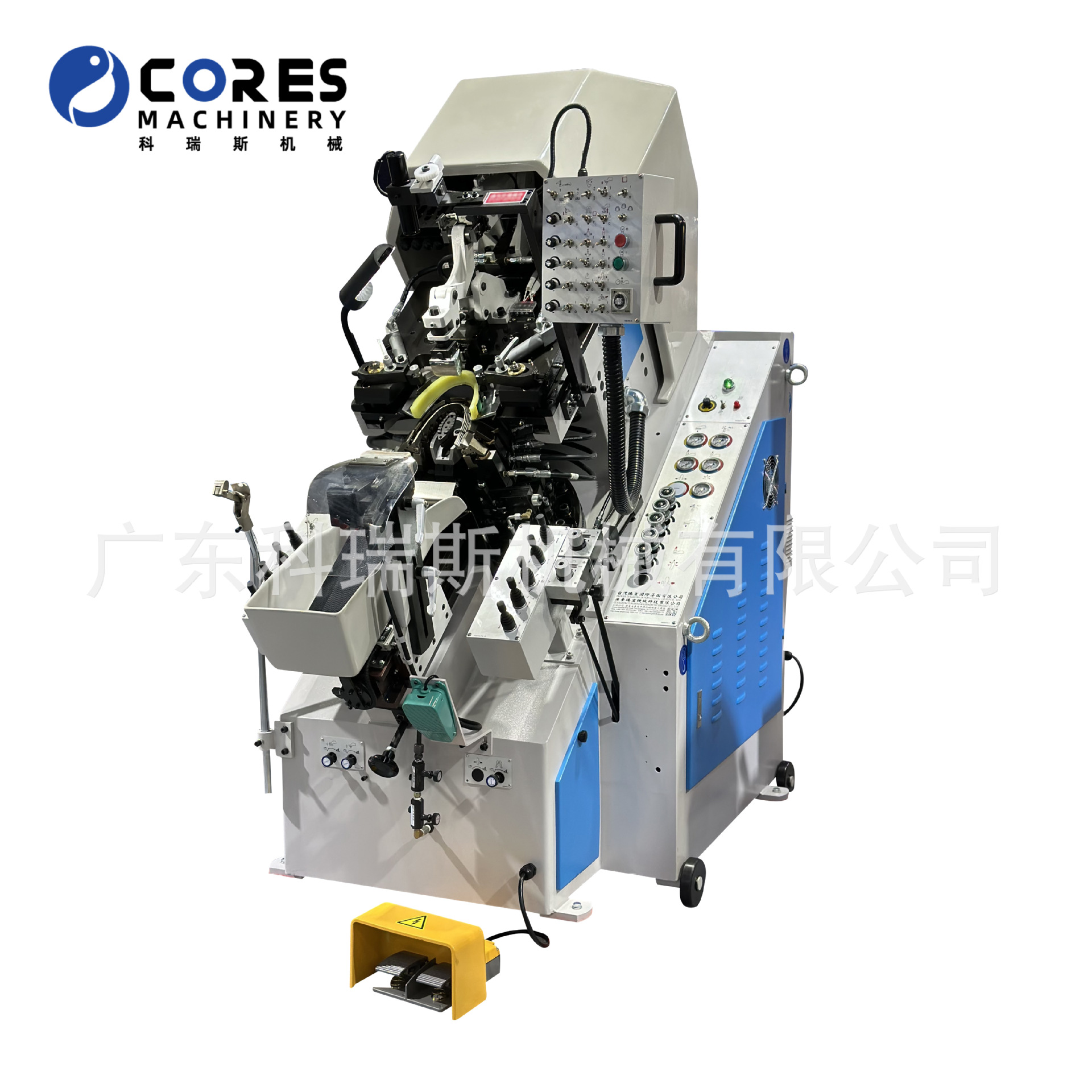

Hydraulic Toe Lasting Machine(7 Pincers)
1. Forming band and special track wiper can make upper lasted even, enhanced outlooking, improved quality and without angle after lasting.
2. The 7 independent pincers can be individually adjusted to cope with the lasting of any shape of shoe toes. The automatic balance device and the theory of automatic descending on wipers'advancing are the very key points for upgranding the quality and raising the production capacity.
3. The wipers are functioned with inching movement and speed adjustment, which makes the whole adjustment of lasting control more convenient.
4. The machine is equipped with cross projector assembly, which is convenient for correcting toe lasting and helps new comers to easily operate the machine.
5. The fifth pincers can rotate inward when the wipers move in and last the shoes. The rotary angle can be adjusted which will help the upper at ball point more stretched and attached to the last. Then,by the aid of supplemental wipers, the shoes will be lasted and finished perfectly.
6. The height of the last support plate is remotely controlled. There is a numerical instruction provided for reference which makes the operation easier and more efficient. Speedy adjustment of pincers fixed plate: The pincers fixed plate adopts the double-tracking structure It is independently adjusted on the right and left. The rotary point of pincers fixed plate isn't under space limited, ensure the lasting quality.
2. The 7 independent pincers can be individually adjusted to cope with the lasting of any shape of shoe toes. The automatic balance device and the theory of automatic descending on wipers'advancing are the very key points for upgranding the quality and raising the production capacity.
3. The wipers are functioned with inching movement and speed adjustment, which makes the whole adjustment of lasting control more convenient.
4. The machine is equipped with cross projector assembly, which is convenient for correcting toe lasting and helps new comers to easily operate the machine.
5. The fifth pincers can rotate inward when the wipers move in and last the shoes. The rotary angle can be adjusted which will help the upper at ball point more stretched and attached to the last. Then,by the aid of supplemental wipers, the shoes will be lasted and finished perfectly.
6. The height of the last support plate is remotely controlled. There is a numerical instruction provided for reference which makes the operation easier and more efficient. Speedy adjustment of pincers fixed plate: The pincers fixed plate adopts the double-tracking structure It is independently adjusted on the right and left. The rotary point of pincers fixed plate isn't under space limited, ensure the lasting quality.
| 参数项目 | Item | Data |
| 电压 | Voltage | 380V, 50/60Hz |
| 功率 | Power | 1.75 KW |
| 气压 |
Air pressure | / |
| 机器尺寸 |
Machine Dimension | 1760*1000*1900mm |
| 包装尺寸 |
Package Dimension | 1860*1100*2000mm |
| 机器重量 |
N.W. | 1150 KG |
| 包装重量 | G.W. | 1250 KG |
| 液压油量 | Oil Volume | 115 Liters |
| 油压压力 | Oil Pressure | 50kg/cm2 |
| 爪数 | Pincer | 7 Pincer |
| 产量 | Output | 2000 Pairs/ 8 Hours |
