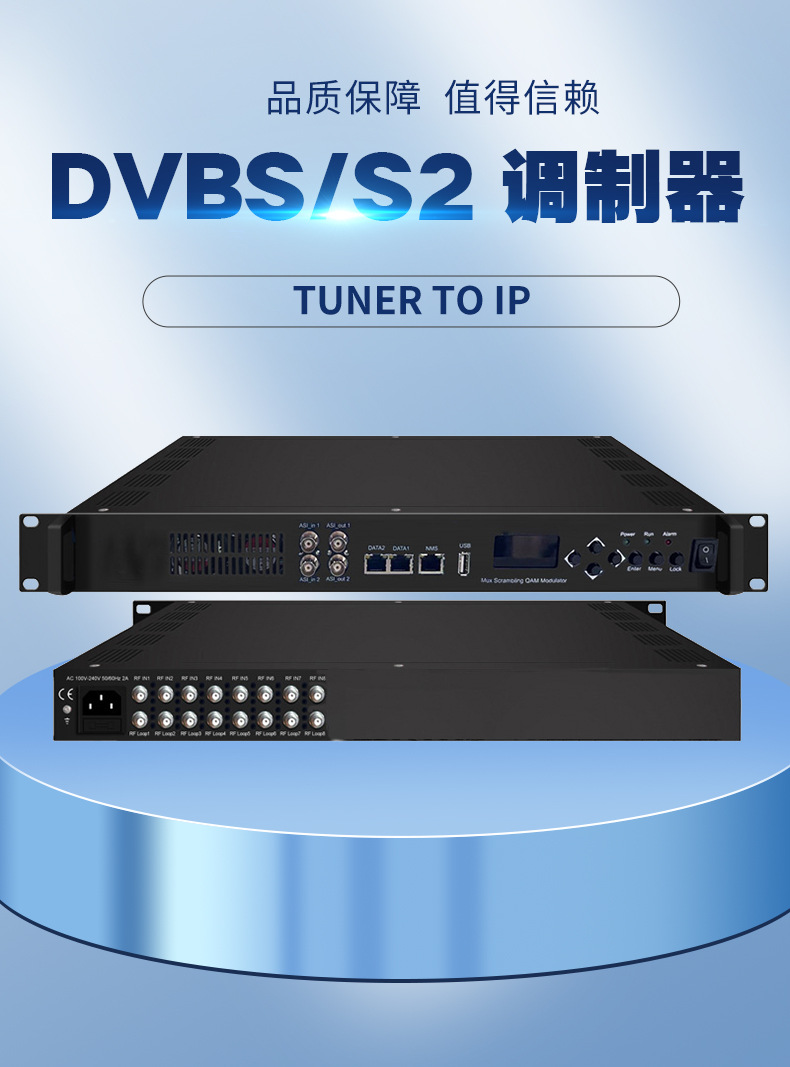

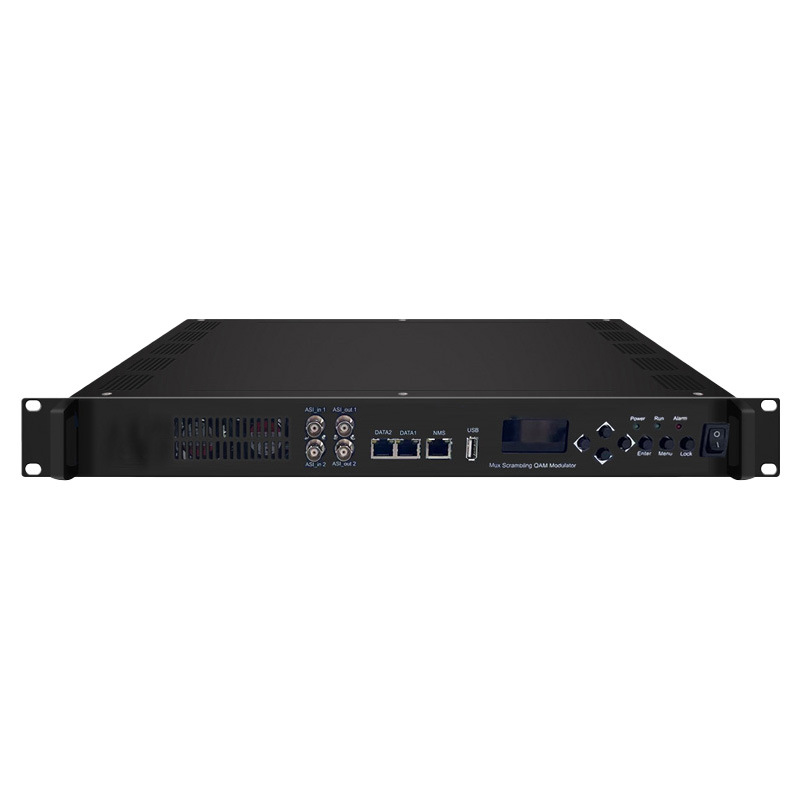

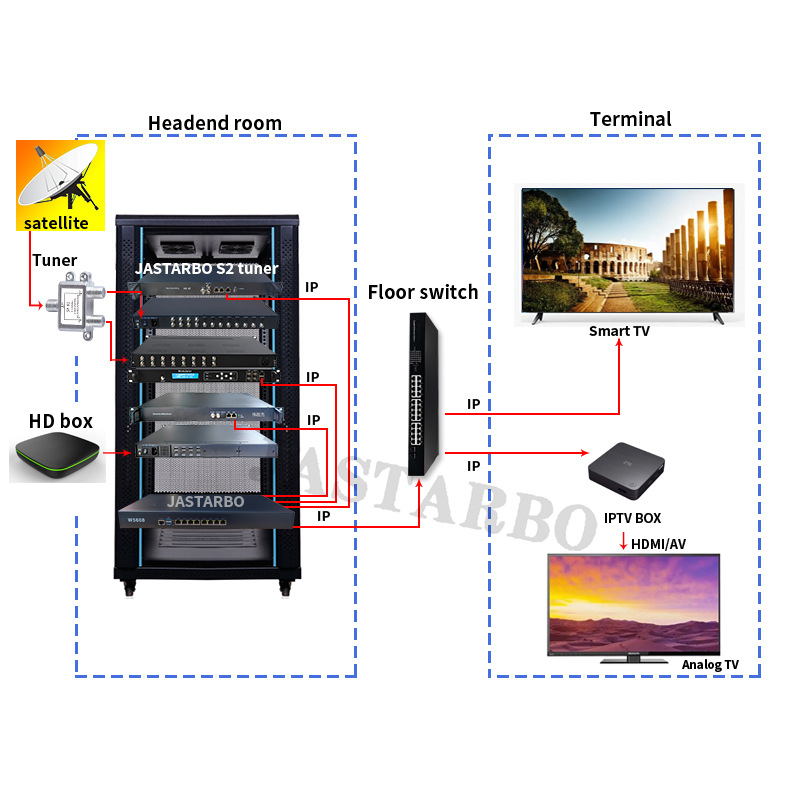

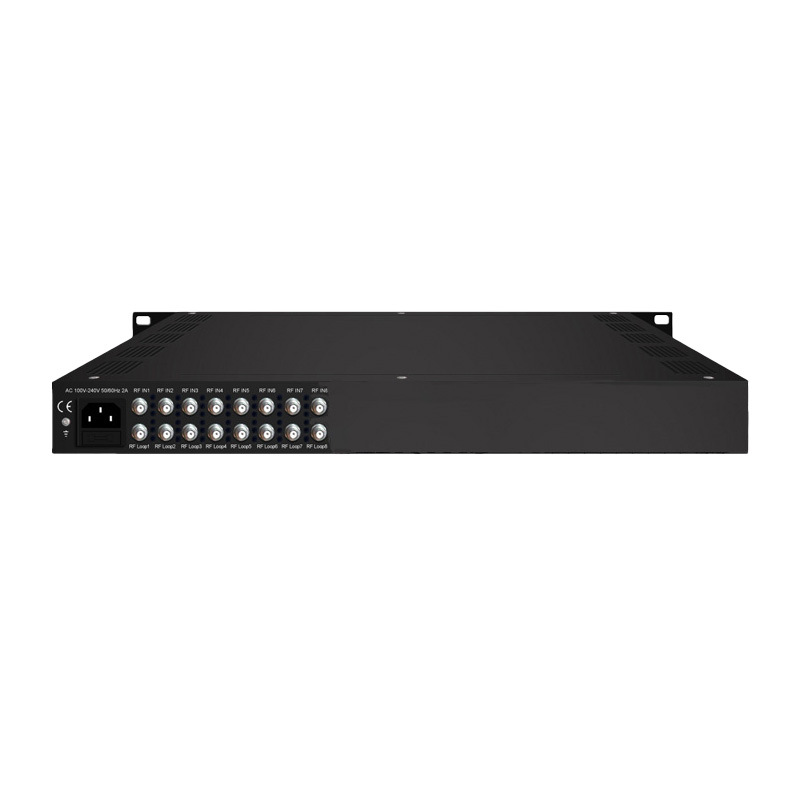

8/24/16 канал DVB-S/S2 модулятор IP стрим машина IPTV прямая трансляция система цифрового телевидения в отелях
Offer ID: 920532799309
Оформить заказ
| Изображение | Модель | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | DVBS | 1шт: ¥4500.00 | 100 | 5794828324703 |
Статистика продавца
Свойства товара
Описание товара
l Support 8/16/24 FTA DVB- S/S2/S2X or DVB-C/T/T2/ISDB-T Multi-Mode Switchable tuner inputs, 2 ASI inputs, 1USB input(TS file Playing, FTA 32, USB 2.0)
l Support BISS descrambling
l Support DisEqc function
l 24 MPTS+3 MPTS(2 ASI inputs and 1 USB port) or 1024 SPTS output (MPTS and SPTS output switchable in Web GUI)
l 2 DATA output ports (IP address and port number of DATA1 and DATA2 are different), up to 900Mbps---SPTS
l 2 independent DATA output ports, DATA1（512 SPTS）+ DATA2（512 SPTS）
l MPTS is pass-through mode, the first 12 tuner-input signals will be outputted from DATA 1, the rest 12 tuner-input signals will be outputted from DATA 2; The output of 2 ASI-input signals and 1 USB-input signal can be chosen to output via DATA 1 or DATA 2
l ASI out is useless in SPTS out mode, and ASI out can be the pass-through output of 2 input signals in MPTS out mode
l Support PID filtering, re-mapping (Only for SPTS output)
l Support “Null PKT Filter” function (Only for MPTS output)
l Support Web operation, reboot in Web GUI after firmware upgrading
|

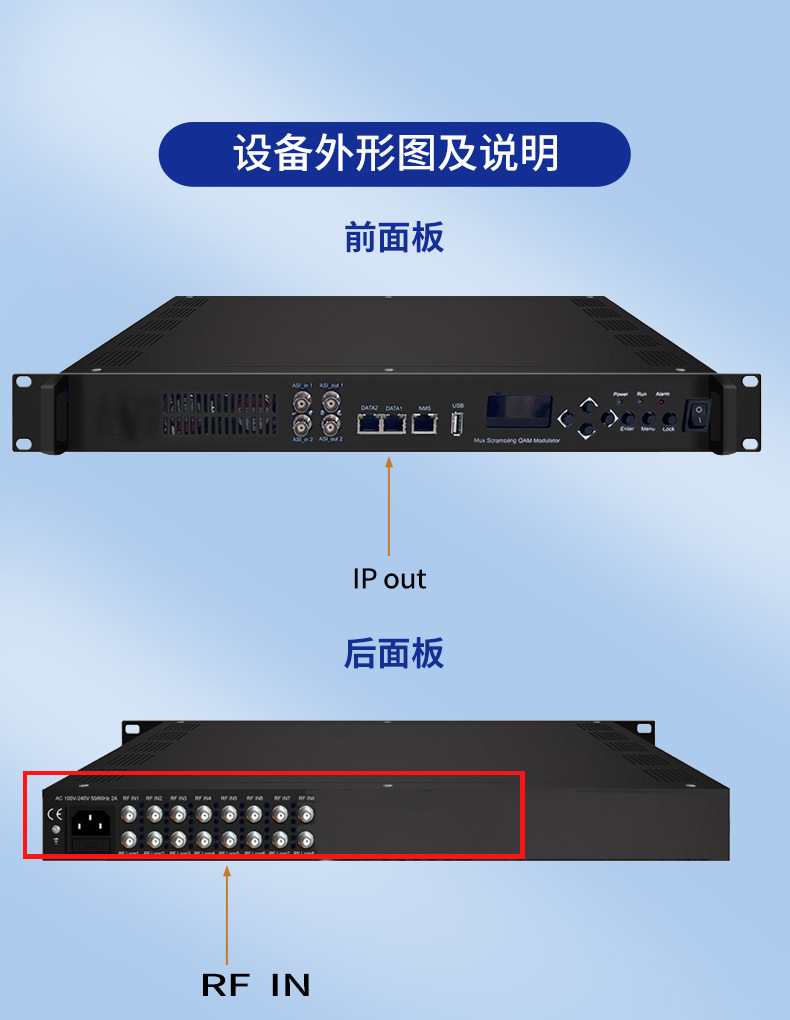

Input |
8/16/24 tuners inputs +2 ASI inputs +1 USB inputs---SPTS/MPTS output |
|||
|
Satellite |
DVB-S |
Frequency In |
950~2150MHz |
|
|
|
|
Symbol rate |
0.5~45Msps |
|
|
|
|
Signal Strength |
- 65- -25dBm |
|
|
|
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
|
|
Constellation |
QPSK |
|
|
|
|
Max input bitrate |
≤125 Mbps |
|
|
|
DVB-S2 |
Frequency In |
950~2150MHz |
|
|
|
|
Symbol rate |
QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~34Msps; |
|
|
|
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
|
|
|
|
Constellation |
QPSK, 8PSK, 16APSK, 32APSK |
|
|
|
|
Max input bitrate |
≤125 Mbps |
|
|
|
DVB-S2X |
Frequency In |
950~2150MHz |
|
|
|
|
Symbol rate |
QPSK/8PSK /16APSK :0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~34Msps |
|
|
|
|
FEC |
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 |
|
|
|
|
Constellation |
QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
|
|
|
|
Max input bitrate |
≤125 Mbps |
|
|
Multi-Mode Switchable Tuner Inputs |
DVB-C |
Standard |
J.83A(DVB-C), J.83B, J.83C |
|
|
|
|
Frequency In |
50~960MHz |
|
|
|
|
Constellation |
16/32/64/128/256 QAM |
|
|
|
DVB-T/T2 |
Frequency In |
50~960MHz |
|
|
|
|
Bandwidth |
6/7/8 M bandwidth |
|
|
|
ISDB-T |
Frequency In |
50~960MHz |
|
|
BISS Descrambling |
Mode 1, Mode E (Up to 850Mbps) (descramble individual program) |
|||
|
Output |

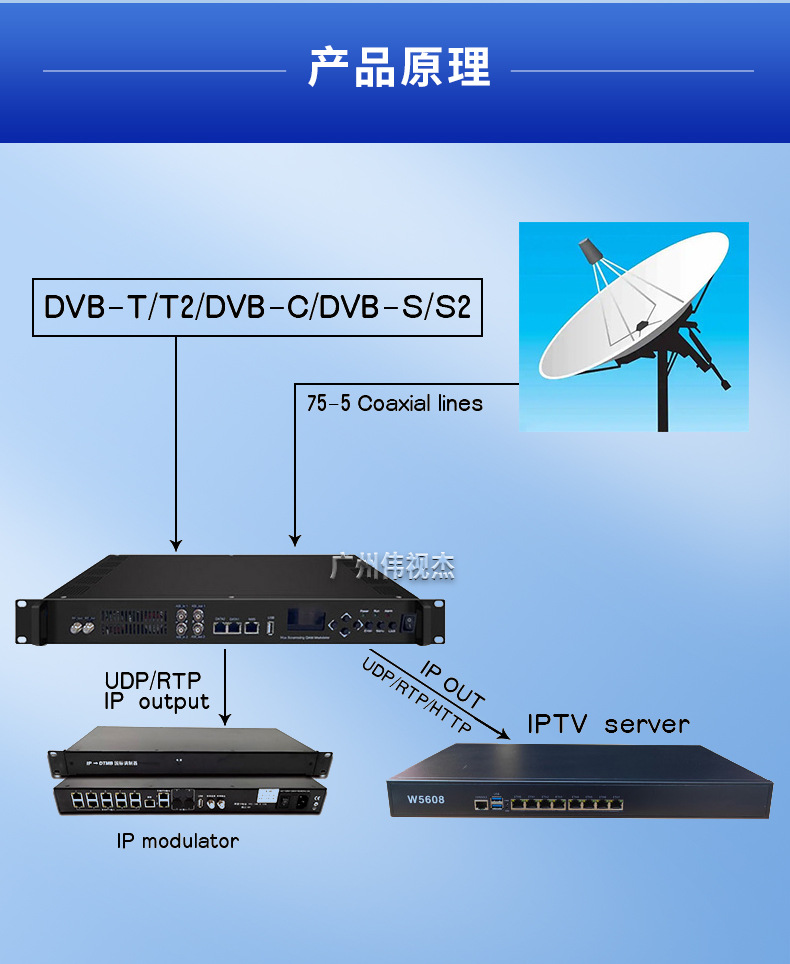

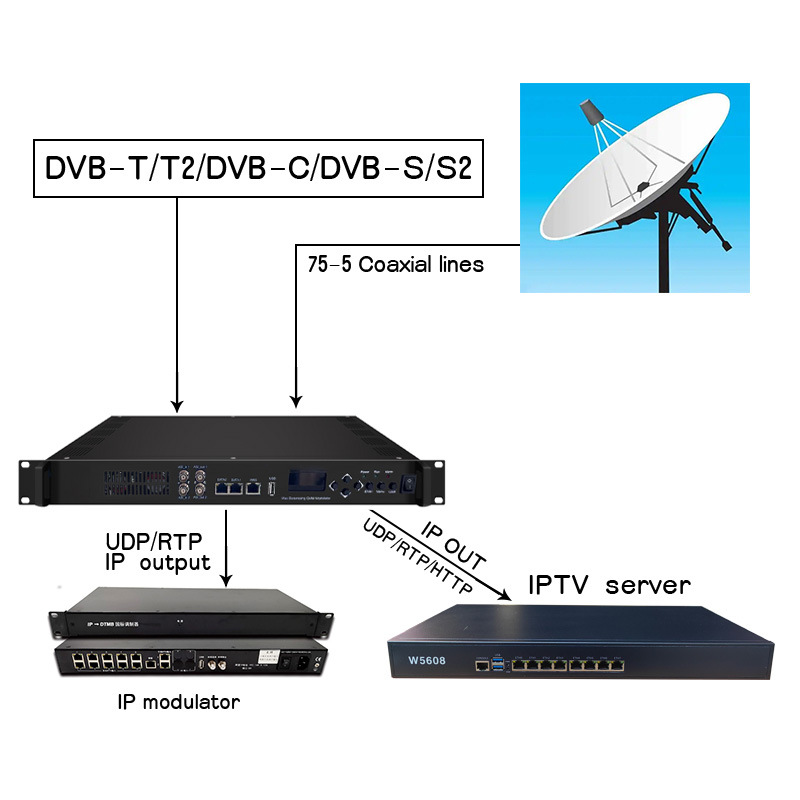

1024 SPTS IP output over UDP and RTP/RTSP protocol through DATA1 and DATA2 port (IP address and port number of DATA1 and DATA2 are different) , Unicast and Multicast |
|||
|
|
27 MPTS IP output (for Tuner/ASI/USB pass-through) over UDP and RTP/RTSP protocol through DATA1 and DATA2 port, Unicast and Multicast |
|||
|
|
2 ASI outputs(MPTS out mode) |
|||
|
System |
Web based management |
|||
|
|
Ethernet software upgrade |
|||
|
Miscellaneous |
Dimension |
482mm×270mm×44mm (W×L×H) |
||
|
|
Environment |
0~45℃(work); -20~80℃（Storage） |
||
|
|
Power requirements |
100~240VAC, 50/60Hz |
||
