IP-конвертер, поддержка HLS, M3U8, HTTP, RTMP, RTSP, SRT, UDP

NPE10 IP Convert protocol

Dexin NEP10-V2 IP Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It supports LCD display and has press buttons, it can convert the broadcast network IP stream over SRT, HTTP,HTTPS, UDP, RTP, RTSP and HLS protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.



Key Features

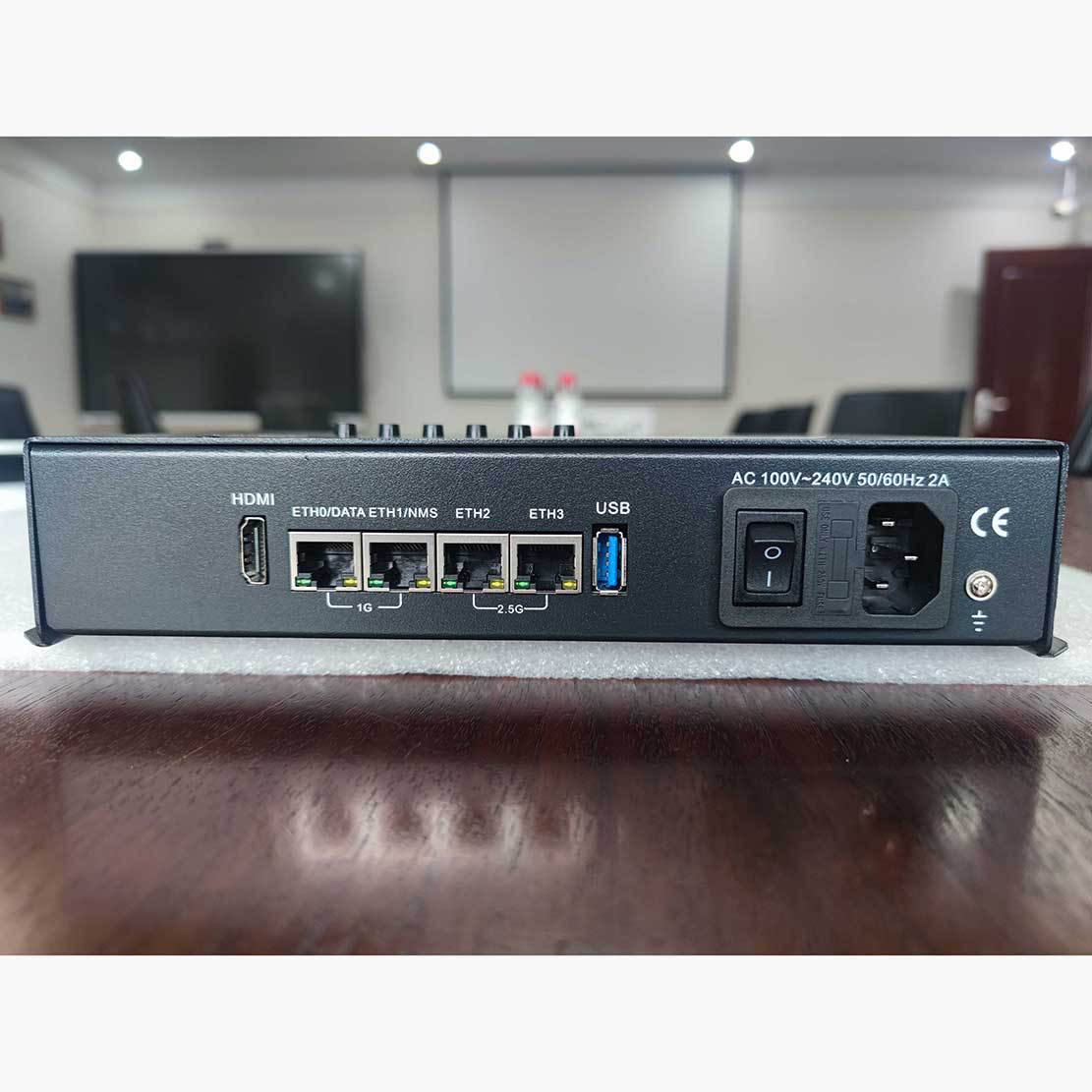

4 Data ports for input/output, it default ETH0 is output,ETH1 is NMS, ETH0 and ETH1 both are 1000Mbps, ETH2/ETH3 is 2.5G, and as input port

Data port:  IP in over SRT, HTTP, HTTPS,UDP (SPTS), RTP (SPTS), RTSP and HLS

IP out over SRT, HTTP, UDP (SPTS) HLS RTP/RTSP and RTMP (Unicast)

Support IP anti-jitter function

HDMI and USB port just be testing port

Support up to 70 HD programs

Control via web-based NMS management through ETH1 port

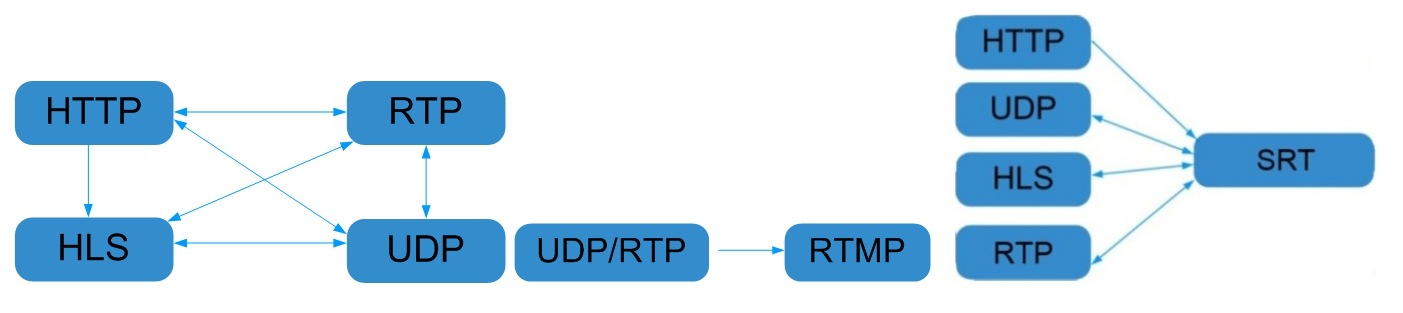

IP Protocol Conversion

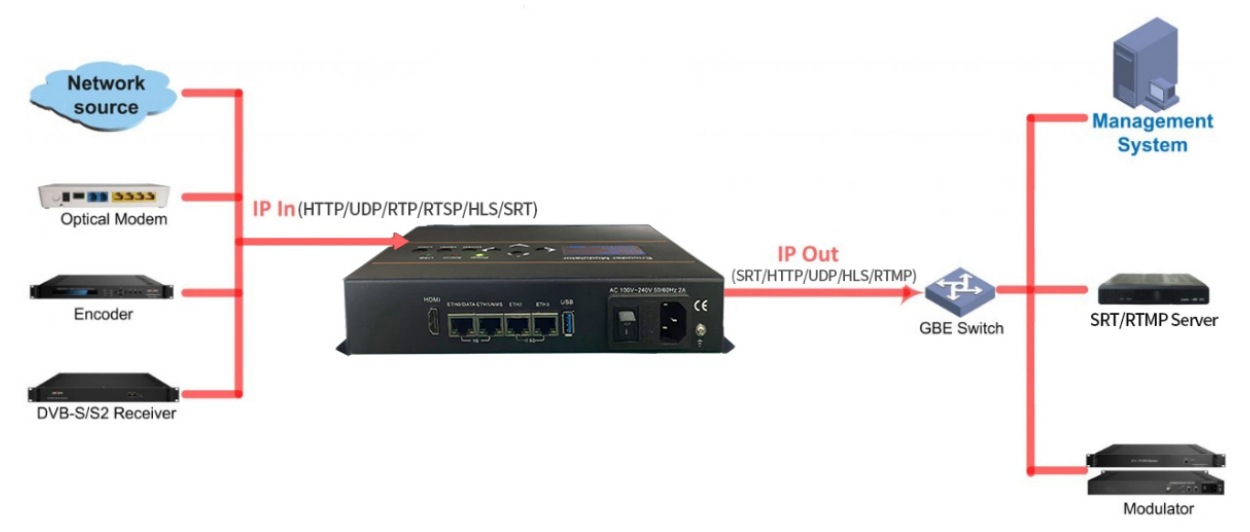

General Principle Chart



Specifications

Input	IP input through ETH2/ETH3 (2.5G) over SRT, HTTP/HTTPS, UDP(SPTS), RTP(SPTS), RTSP and HLS.
IP output	IP out through ETH0 (1000M) over SRT(Unicast), HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding)
System	Web-based NMS management through DATA port
General	Demission	230mm×150mm×50mm (WxLxH)
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power Supply	AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz





Test data for reference:
