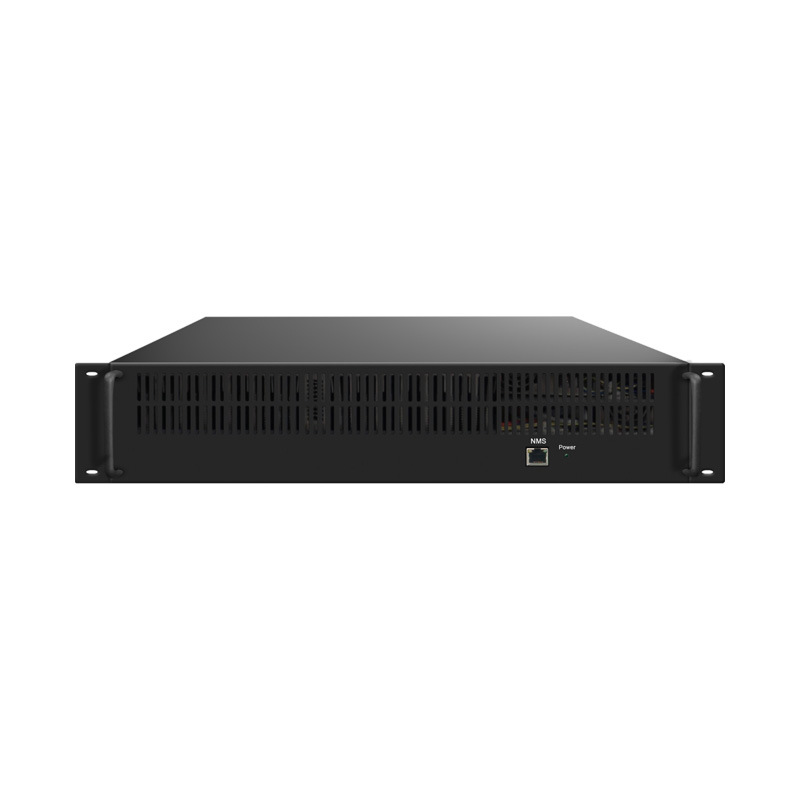

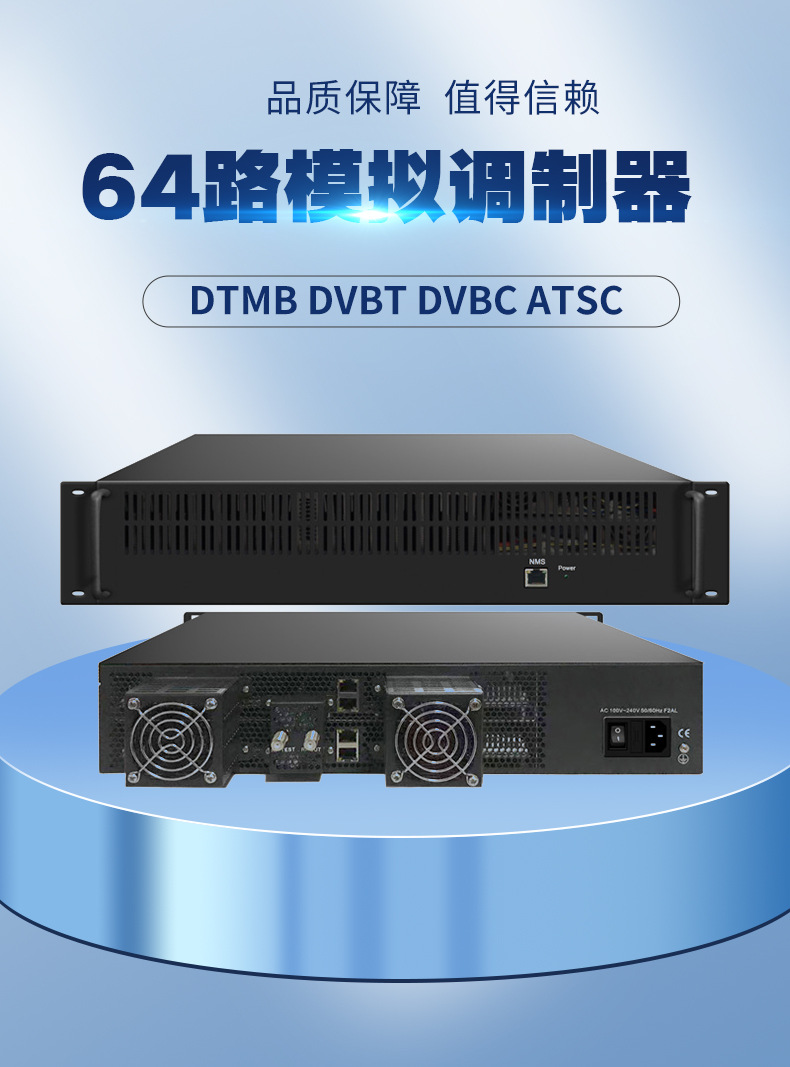

64/32 канал IP к RF аналоговый модулятор система ТВ в отелях цифровой IP к RF радиочастота
Offer ID: 922740644595
Оформить заказ
| Изображение | Модель | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | Weishijie | 1шт: ¥28000.00, 9шт: ¥26000.00, 999шт: ¥25000.00 | 1000 | 5964965179891 |
Статистика продавца
Свойства товара
Описание товара
Key Features

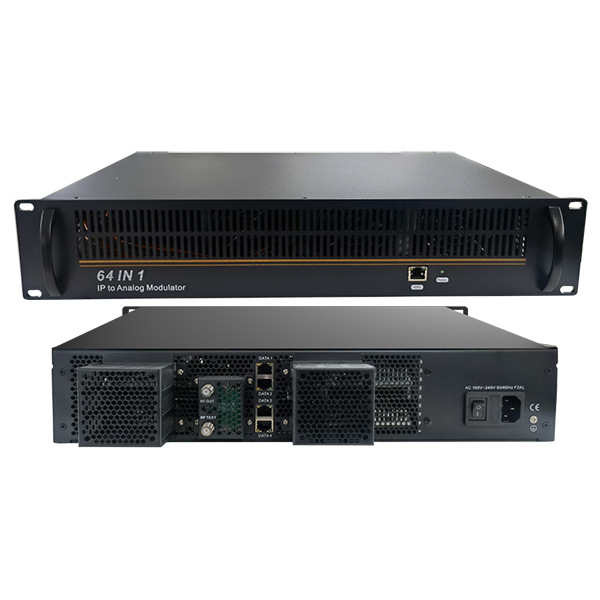

l 2U chassis, high density to save shipping cost
l Support OSD (Logo and Caption) insertion for each channel, easy operation
l Suport CC/Subtitle/Teletext
l Support BISS De-scrambling (Under developing)
l Support program info modify, multiple audio select l
l 4 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input
l Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decoding

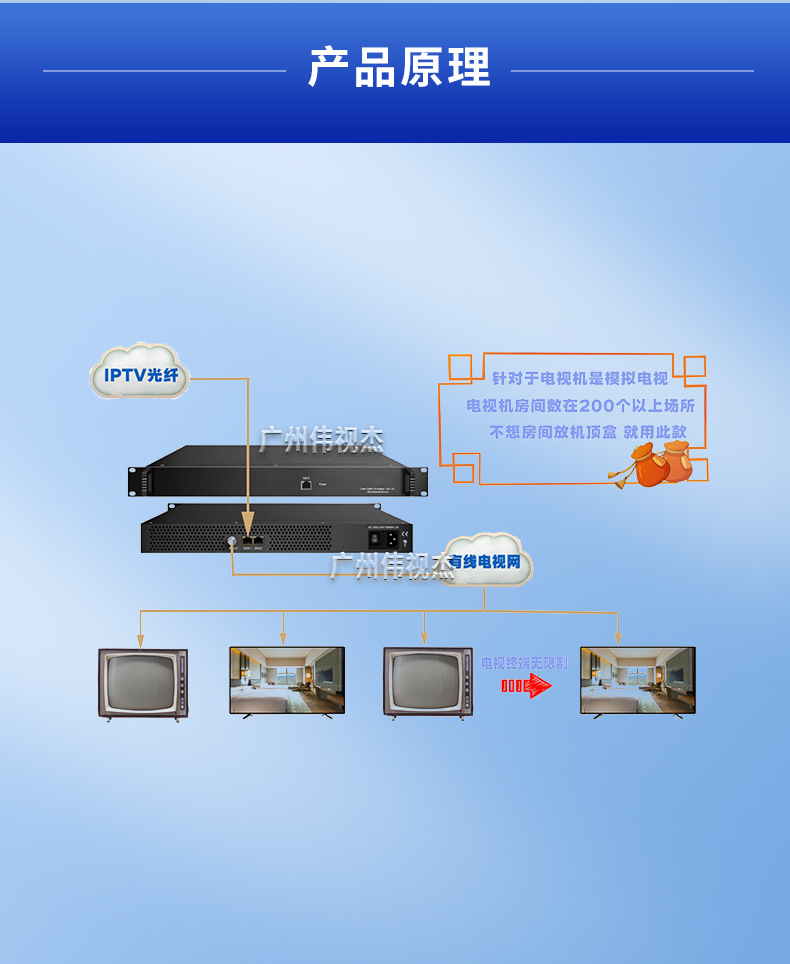

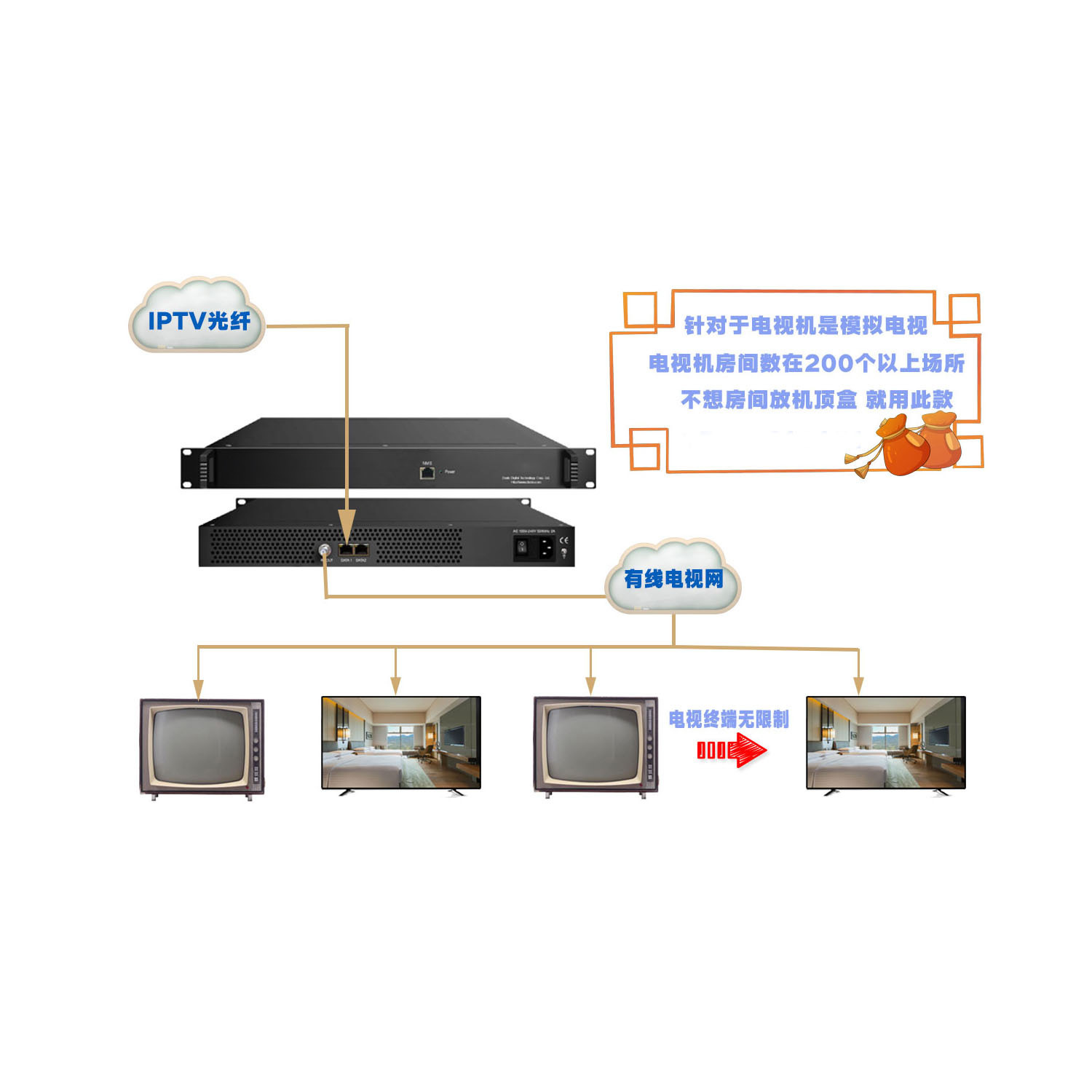

l Processing of up to 64 IP multicast groups of a Gigabit Ethernet MPEG TS into up to 64 standard PAL or NTSC or SECAM TV programs
l 64 non-adjacent or adjacent carriers output, each 32 carriers within 400MHz
l Support Web-based Network management
Specifications
|
Input |
Interface/rate |
4 GE ports (max 64 IP input) Max 840Mbps for each GE input |
|
Stream |
UDP, UDP / RTP, 1-7 packets (SPTS/MPTS) |
|
|
Transport Protocol |
UDP/RTP, unicast and multicast, IGMP V2/V3 |
|
|
Packet Length |
188 / 204 Bytes |
|
|
Decoding Parameters |
Video |
HEVC/H.265, H.264/AVC, MPEG-2 |
|
Audio |
MPEG-1/2 Layer 1/2, (HE-)AAC, AC3 |
|
|
Data |
CC, Teletext, Subtitles, DVB Subtitling |
|
|
Resolutions |
HEVC/H.265: 1080@60P, 1080@60I, 1080@50P, 1080@50I, 720@60P, 720@50P
H.264/AVC: 1080@60I, 1080@50P, 1080@50I, 1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I
MPEG2: 1080@60I, 1080@50I, 720@60P, 720@50P, 576@50I, 480@60I |
|
|
Aspect ratio |
4:3 |
|
|
Modulation Parameters |
Number of channels |
Up to 64 non-adjacent or adjacent carriers output |
|

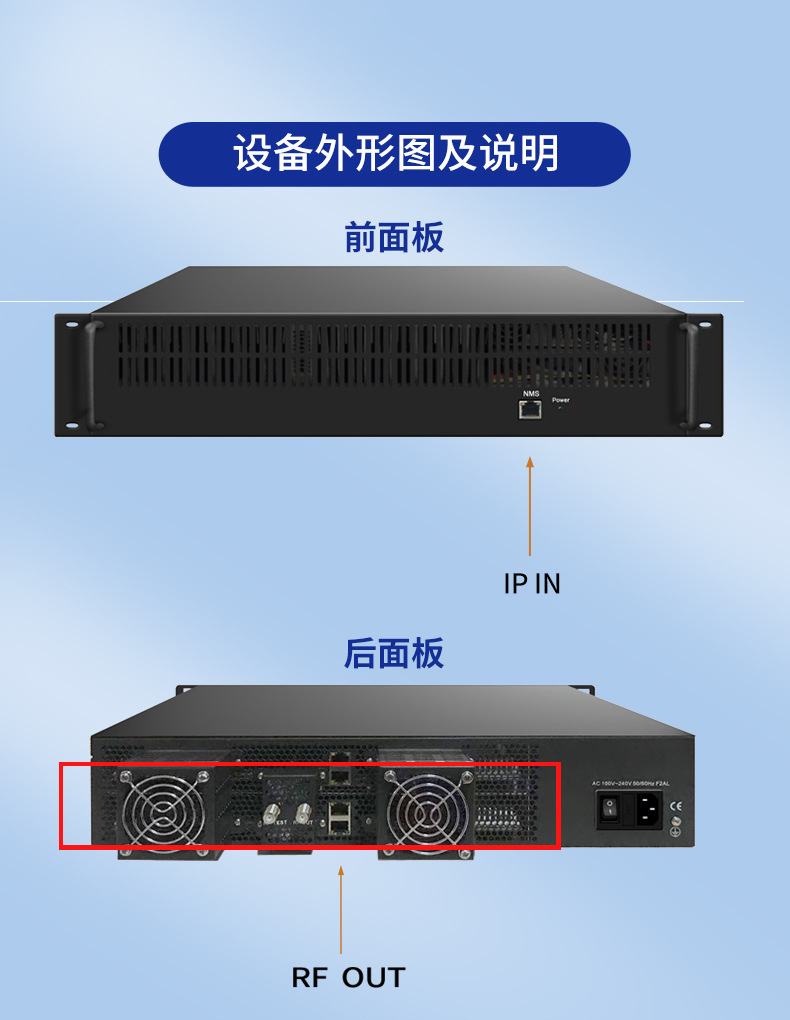

Connectors |
75Ω, F-jack |
|
|
Frequency range |
43.25 – 951.252MHz |
|
|
Output Bandwidth |
400MHz（each 32 carriers） |
|
|
Output level |
-5 ~ 2dBm (102 ~ 112dBμV) |
|
|
Return loss |
≥ 14dB |
|
|
Spurious frequency dist. |
≥ 60dB |
|
|
Residual carrier accuracy |
1% |
|
|
TV standard |
PAL B/G/D/K/M/N/I, NTSC M, SECAM |
|
|
Video-signal to noise ratio |
≥ 60dB |
|
|
Carrier to noise ratio |
≥ 60dB (when single carrier on) ≥ 55.5dB (when all 64 carriers on) |
|
|
Network Interface |
Management |
1 x 100 Base-T Ethernet (RJ 45) |
|
Data |
4 x 1000 Base-T Ethernet (RJ 45) |
|
|
Others |
Image resolution output |
480i/576i |
|
OSD |
Logo : JPG, BMP, PNG |
|
|
Caption : support multiple languages, scrolling direction and speed customized |
||
|
Output volume adjustment |
0 - 100 % |
|
|
General |
Demission |
483mm×330mm×88mm (WxLxH) |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC100V±10%, 50/60Hz or AC 220V±10%,50/60Hz |
