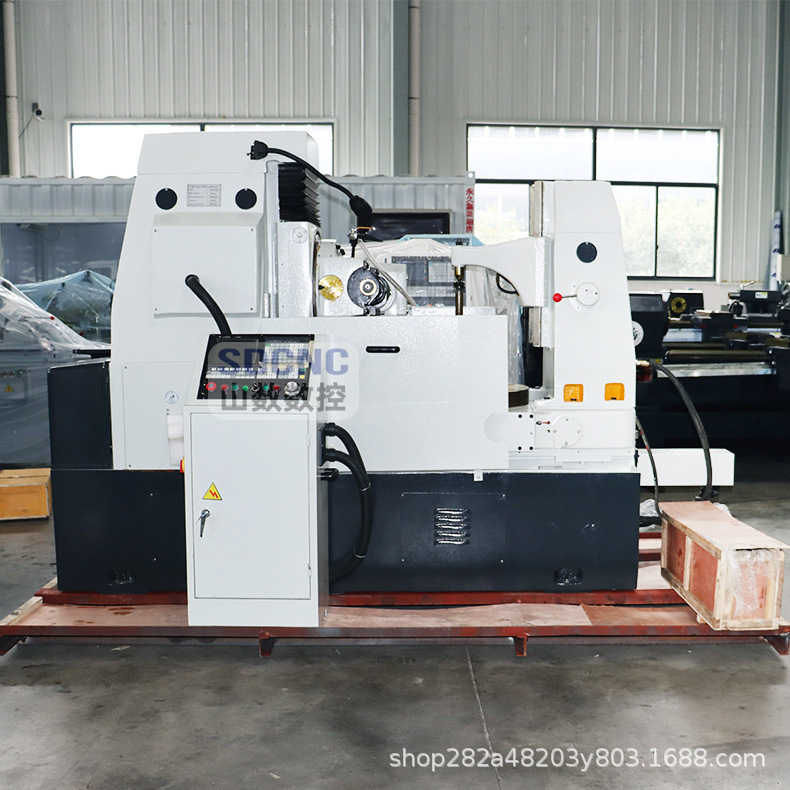

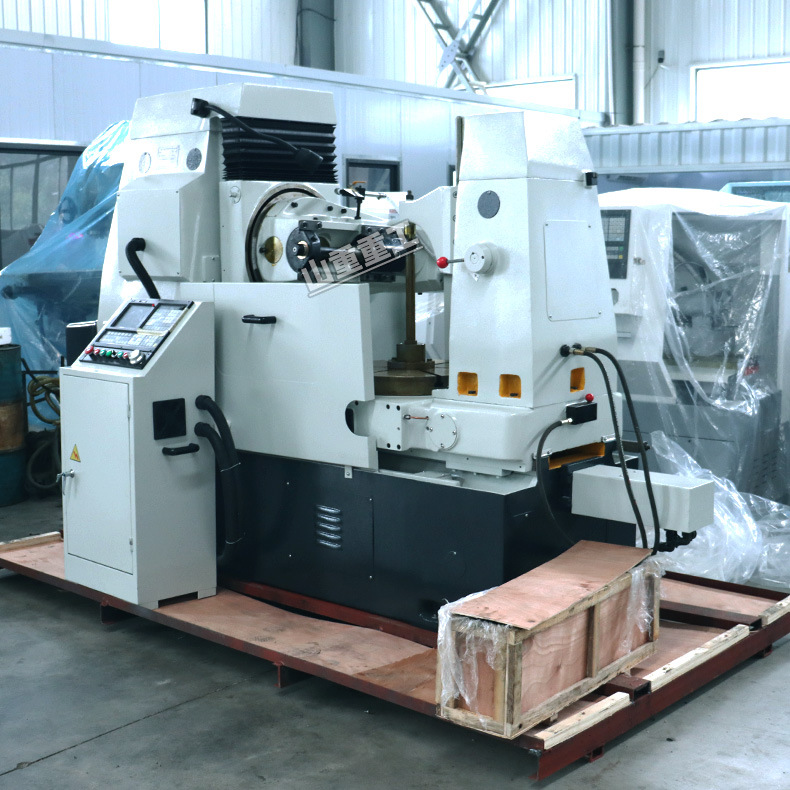

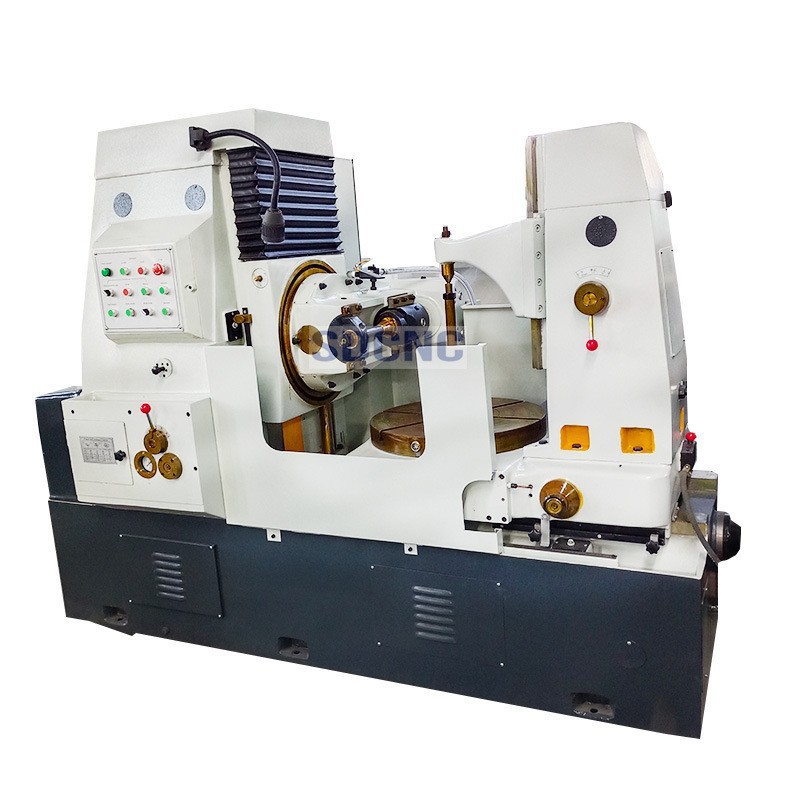

Фрезерный станок для зубчатых колес Cnc Yk3180 полностью автоматический двухосевой четырехосевой для обработки прямозубых и косозубых шестерен и других 10 типов форм
Offer ID: 933892171151
Оформить заказ
| Изображение | Модель | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | YK3180 | 1шт: ¥145000.00 | 10 | 5991789151233 |
Статистика продавца
Свойства товара
Описание товара
|
规格 |
Specification |
Y3180CNC |
unit |
|
最大工件直径 |
Maximum workpiece diameter |
800 |
mm |
|
最大模数 |
Maximum modulus |
12（10） |
mm |
|
加工斜齿轮螺旋角 |
Helical angle of machined helical gear |
±45° |
° |
|
可安装滚刀最大直径 |
Maximum diameter of installed hobbing cutter |
180 |
mm |
|
可安装滚刀最大长度 |
Maximum length of installed hobbing cutter |
180 |
mm |
|
滚刀最大轴向移动量 |
Maximum axial movement of hobbing cutter |
100 |
mm |
|
滚刀可换芯轴直径 |
Replaceable mandrel diameter hobbing cutter |
22 27 32 40 |
mm |
|
滚刀主轴锥孔锥度 |
Conicity of hobbing cutter spindle taper bore |
MT5# |
mm |
|
滚刀中心到工作台中心水平距离 |
Horizontal distance from t center of hobbing cutter to center of worktable |
50-550 |
mm |
|
滚刀中心到工作台面垂直距离 |
Vertical distance from center of hobbing cutter to surface of worktable |
235-585 |
mm |
|
后立柱顶尖到工作台面距离 |
Distance from rear column center to worktable surface |
400-1100 |
mm |
|
工作台面直径 |
Diameter of worktable surface |
650 |
mm |
|
滚刀主轴最高转速 |
Maximum speed of hobbing cutter spindle |
625 |
rpm |
|
轴向进给速度（Z轴） |
Axial feeding speed range (Z- axis) |
0-2000 |
mm/min |
|
径向进给速度（X轴） |
Radial feeding speed range (X-axis) |
0-2000 |
mm/min |
|
切向运动最大速度 |
Maximum tangential motion speed |
2000 |
mm/min |
|
工作台最大转速范围 |
Maximum speed range of worktable |
30 |
rpm |
|
刀架最大回转速度 |
Maximum rotating speed of tool post |
4.5 |
o/s |
|
机床体积（长X宽X高） |
Machine volume (L x W x H) |
3.18x1.90x2.25 |
m |
|
机床净重 |
Net weight of machine |
5800 |
kg |
