Экспорт в Южную Америку, Африку, Азию, Юго-Восточную Азию радарные спидометры

【TR090，TR090G  标准国内 及国外款测速车牌识别（部分国家大部分欧洲美洲南美洲中东俄罗斯蒙古东南亚中亚日韩泰国南亚等国家支持识别，具体详细咨询）+雷达测速功能+车牌抓拍显示】

[TR080, TR080G standard for domestic and foreign speed measurement license plate recognition (some countries support recognition, specific consultation)+radar speed measurement function+license plate capture display]

Usage: Suitable for large-scale industrial parks, school roads, hospitals, rural roads, urban strictly controlled roads, entry and exit checkpoints, and low-speed places where specific turning sections require speeding to be captured! 0-150KM, replace high-speed camera for users in high-speed speed measurement scenarios.

Note: Scalable applications: Speed capture, red light capture, interval speed measurement, electronic police, violation and parking capture.

Note: You can choose the high-speed traffic intelligent camera (0-199KM), which supports capturing speeding on highways!

Camera features: (used in low-speed environments within 0-150KM)

Built in extreme optimized embedded license plate recognition algorithm, capable of wide-angle video recognition: with a comprehensive recognition rate of over 99%;

Built in5 million 5-22mm electric zoom lens;

Color 5 million pixel CMOS sensor with a maximum resolution of 1960 * 1080/30fps;

Unique appearance design, the camera can be adjusted in any direction up, down, left, or right at will; Can rotate 360 degrees without limit.

License plate recognition: supports conventional license plate recognition, such as regular blue and yellow plates, military, police, new energy, etc;

Integrated speed measurement function: The speed measurement range is 0~150 kilometers per hour, which is simple and convenient;

The trigger mode supports three types: video, coil, and network signal transmission,

Video triggering can distinguish whether the vehicle is approaching or moving away from the recognition machine;

Trigger output: panoramic, close-up, and textual results; The captured images can be overlaid with information such as time, date, license plate number, driving speed, installation route, etc;

Support synchronous triggering of flashing lights;

The lens supports automatic aperture and remote manual focusing;

Support RS485 recognition result output;

The network upload protocol supports RTSP, FTP, HTTP (supporting recognition result upload), etc;;

Complete SDK support, allowing users to conduct secondary development through SDK packages;

The front end adopts a unique double glass design, which can effectively avoid halo and spot phenomena when auxiliary light is turned on.

LED screen functional features:

Module type: P3.75-P10 Outdoor waterproof digital LED display, high brightness, wide viewing angle, and visible distance of up to 30 meters

Communication interface: 485

Display text: Full screen with 4 lines and 6 Chinese characters per line, with multiple display modes including static and scrolling

Display content: The 4-line text is as follows, with the standard 2-line speed model C80 available.

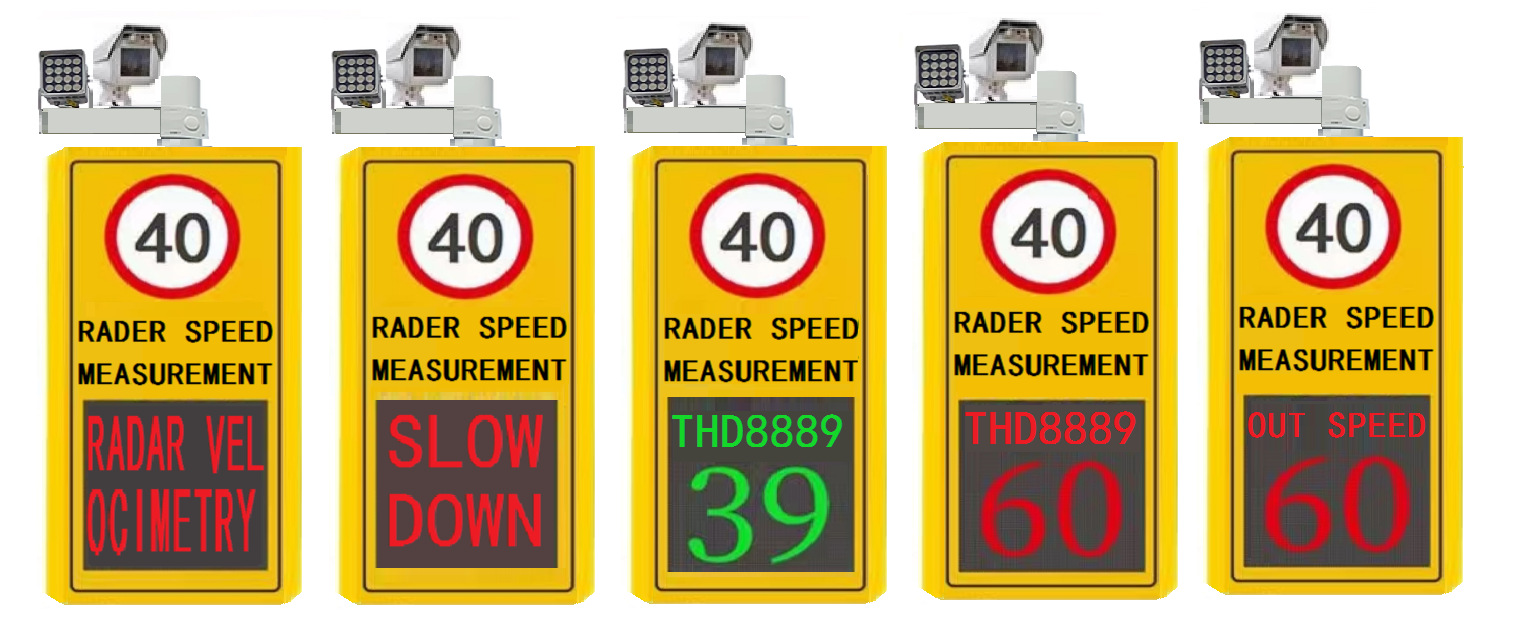

1. Idle time: 2. When a car arrives:

Display Color: Font: Single Red, Two Colors, Three Colors Available

Screen shell: The surface of the shell is resistant to UV and electrostatic spray, dustproof and waterproof

Working voltage: AC220V, working environment temperature: -25 ℃ --60 ℃, relative humidity:=<95%

Optional language broadcasting function

Technical parameters:

Video imaging element 1/3 "SONY 3 million pixel row by row sensor

Maximum resolution Full HD/1080P (1920x1080)+Full D1

Horizontal resolution>1000TVL (1920x1080 pixels)

When the lowest illumination color is turned on: 0.05Lux at F1.2/When the special light source is turned on: 0.001Lux at F1.2

Super wide dynamic support

Compression standard H.265 Main Profile @ Level 4.1/Motion JPEG

Single stream 1920 * 1080P

The frame rate can reach 25 fps at all resolutions

Video streaming single channel H.264

16: 9 display modes support video 16:9 display mode

OSD character overlay supports Chinese and English character overlay: vehicle speed value, channel name, date and time overlay, with adjustable overlay position

3D noise reduction technology reduces noise in each frame of the image, making the image clearer

ROI area enhancement can make a specified area in the image clearer than the image outside the area

Lens f=2.8-13.5mm 3MP high-definition fixed focus lens

1 RJ45 network interface, 10/100M adaptive, 1 power input interface

Network protocols IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP, etc

Access Protocol WEB, SDK API, ONVIF

Storage computer or front-end memory computer or front-end memory

The safety built-in watchdog automatically resets the system in case of abnormal situations to ensure normal operation of the system

Remote reset system controlled through network

Other operating systems Microsoft Windows XP/Windows 7

Browser: Microsoft Internet Explorer 6. x or above

Video output 1.0Vp-p, 75 Ω

Power supply AC220V

Working temperature -10 ℃ -50 ℃

Weight approximately 35K g

Size 985 * 850 * 150mm

中文资料介绍：

使用场合：适用于大型工业园区、学校路段、医院、乡村路段、城市严管路段,出入卡口，转弯特定路段需要超速抓拍的低速场所！0-150KM，更换高速相机用户高速测速场合。

备注：可扩展应用：超速抓拍，红灯抓拍，区间测速，电子警察，违章违停抓拍。

备注：可选择高速交通智能相机（0-199KM），支持高速公路超速抓拍！

相机功能特点:（0-150KM内低速环境使用）

l 内置优化嵌入式车牌识别算法，可大角度视频识别：综合识别率高于99.%；

l 内置500万5-22mm电动变焦镜头；

l 彩色500万像素CMOS传感器,最大分辨率1960*1080/30fps;

l 独特的外观设计，摄像机上下左右方位随意调节；可360度无极限旋转。

l 车牌识别：支持常规车牌识别，如普通蓝、黄牌，军、警、新能源等；

l 集成测速功能：测速范围为 0 ~ 150公里/小时, 测速简单方便；

l 触发模式支持包括三种，视频、线圈、及网络发送信号，

l 视频触发可区分车辆接近或远离识别机；

l 触发输出：全景图、特写图以及文字结果；抓拍图片上可以叠加时间、日期、车牌号码、行驶速度、安装路段等信息；

l 支持爆闪灯同步触发；

l 镜头支持自动光圈、远程手动对焦；

l 支持RS485识别结果输出；

l 网络上传协议支持RTSP、FTP、HTTP(支持识别结果上传)等;;

l 完整的SDK 支持，允许用户通过SDK 包进行二次开发;

l 前端采用独特的双玻璃设计，可有效避免辅助光开启时产生光晕和光斑现象。

LED屏功能特点:

l 模组类型：P3.75-P10户外防水数码LED显示，亮度高、可视角度广，可视距离可达30米

l 通讯接口：485

l 显示文字：满屏4行每行6个汉字，可静态、滚动等多种显示模式

l 显示内容：4行文字如下，其它有标准2行速度款C80款。

    1.闲时：                          2.有车来时：

l 显示颜色：字体：单红，双色，三色可选

l 屏体外壳：壳体表面抗紫外线静电喷油，防尘防水

l 工作电压：AC220V, 工作环境温度：-25℃--60℃, 相对湿度：=<95%

l 语言播报功能可选

技术参数:

视频

成像元素

1/3＂ SONY 500万像素逐行传感器

最高分辨率

Full HD/1080P(1920x1080) + Full D1

水平解析度

>1000TVL(1920x1080 pixels)

最低照度

彩色时：0.05Lux at F1.2  / 特殊光源开启时：0.001Lux at F1.2

超级宽动态

支持

压缩标准

H.265 Main Profile @ Level 4.1 / Motion JPEG

单码流

1920*1080P

帧速

所有分辨率下均可达25 fps

视频流

单路H.264

16：9显示模式

支持视频16：9的显示模式

OSD字符叠加

支持中英文字符叠加：车速值、通道名、日期时间叠加，叠加位置可调

3D降噪技术

减少每一帧图像出现的噪点从而使画面更清晰

ROI区域增强

可以使画面中某个指定区域比区域外的图像更清晰

镜头

f=2.8-13.5mm 3MP高清定焦镜头

网络

接口

1个RJ45，10/100M 自适应，1个电源输入接口

网络协议

IPv4, TCP/IP, UDP, HTTP, DHCP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP 等

接入协议

WEB, SDK API, ONVIF

存储

电脑或前端内存

电脑或前端内存

安全

内置看门狗

在异常情况自动复位系统，以保证系统正常运行

远程复位

通过网络控制远程复位系统

其他

操作系统

Microsoft Windows XP/Windows 7

浏览器：Microsoft Internet Explorer 6.x or above

视频输出

1.0Vp-p,75Ω

供电电源

AC220V

工作温度

-10℃—50℃

重量

约35K g

尺寸

985*850*150mm
