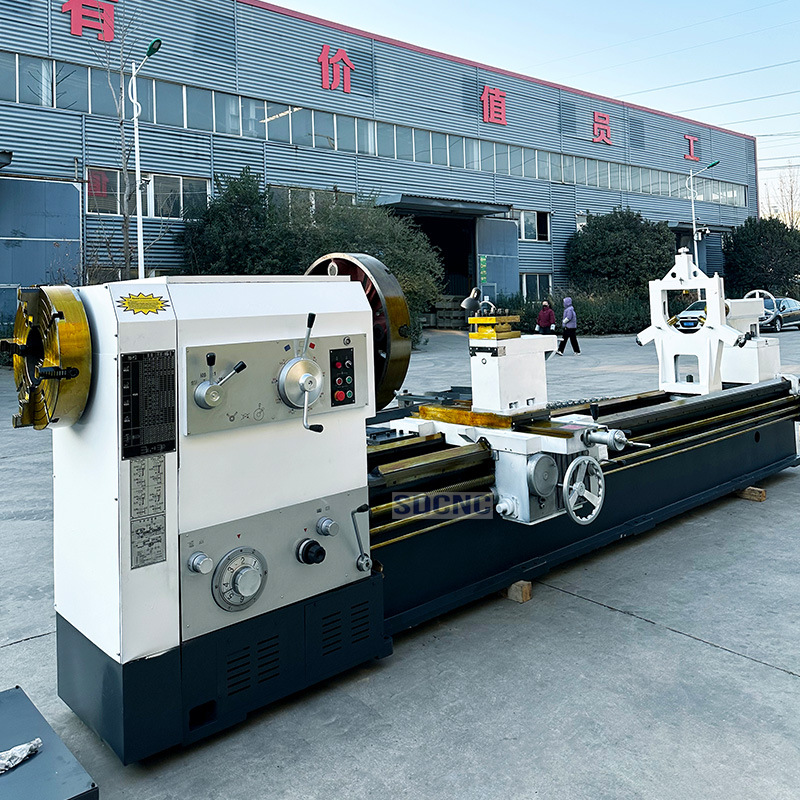

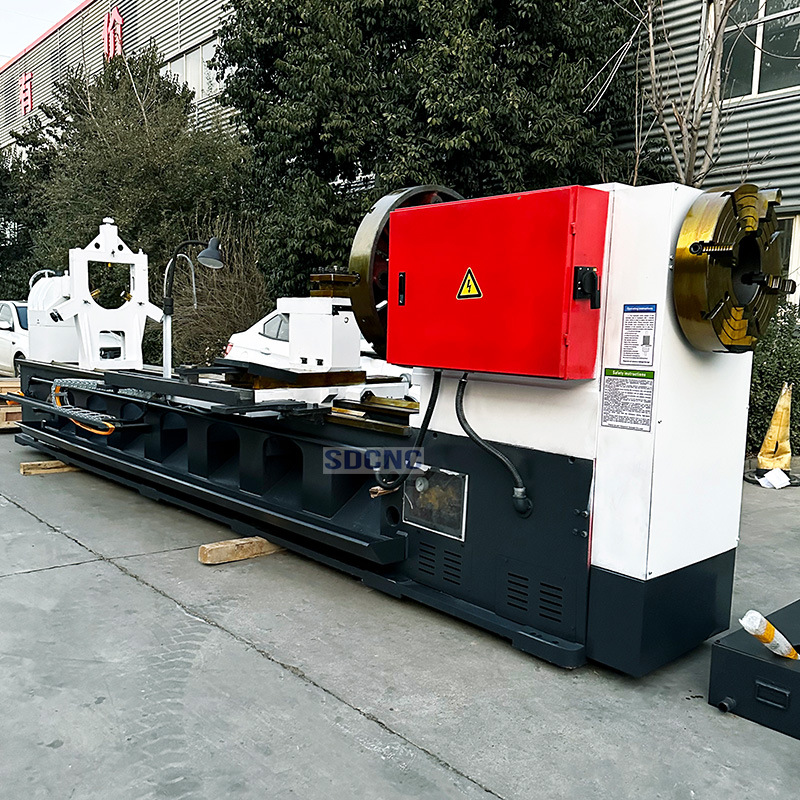

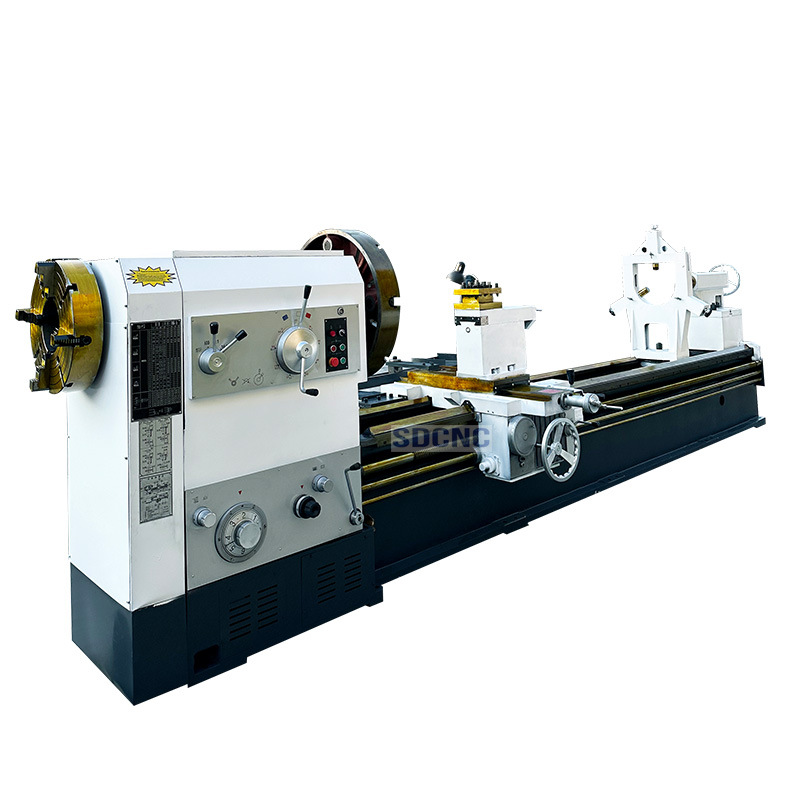

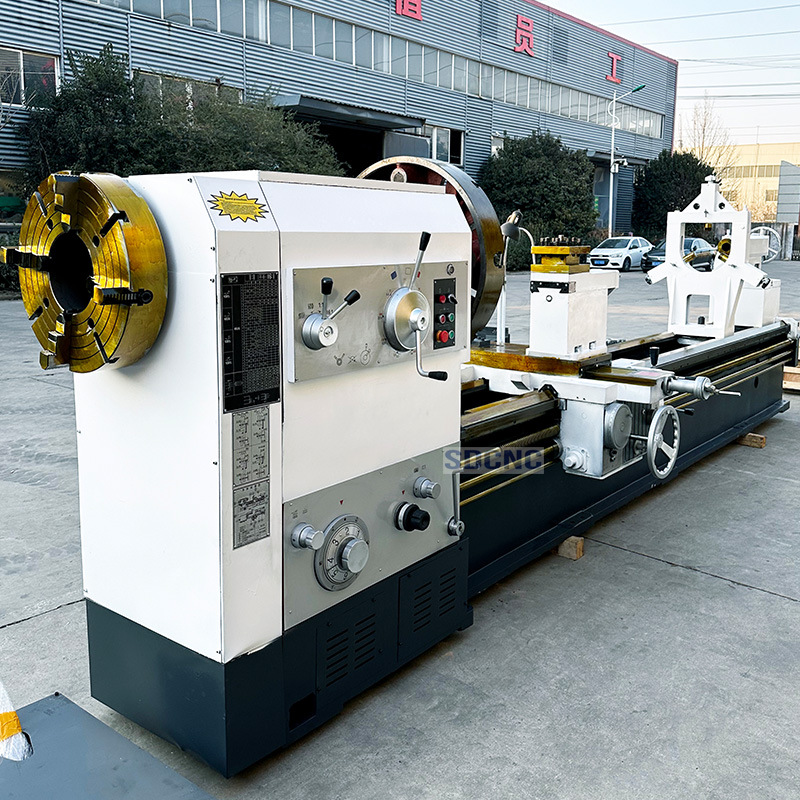

Токарный станок для труб Q1319, токарный станок для труб 1322, токарный станок 1327 с большим отверстием, машина для обработки резьбы
Offer ID: 943664727257
Статистика продавца
Свойства товара
Описание товара
|
主要技术参数 |
SPECIFICATIONS |
Units |
Q1319 |
|
床身上大回转直径 |
Swing over bed |
mm |
630/800 |
|
横滑板上大���转直径 |
Swing over cross slide |
mm |
340/520 |
|
大工件长度 |
Distance between centers |
mm |
1500/3000 |
|
加工管螺纹直径范围 |
Pipe threading range |
mm |
50-193 |
|
床身导轨宽度 |
Guideway width |
mm |
550 |
|
床身承重范围 |
Max. load capacity |
kg |
3000 |
|
主轴孔径范围 |
Spindle bore |
mm |
200 |
|
主轴转速级数 |
Spindle speed steps |
- |
4档变频/VF. 4 steps |
|
主轴转速范围 |
Spindle speed range |
rpm |
20-550 |
|

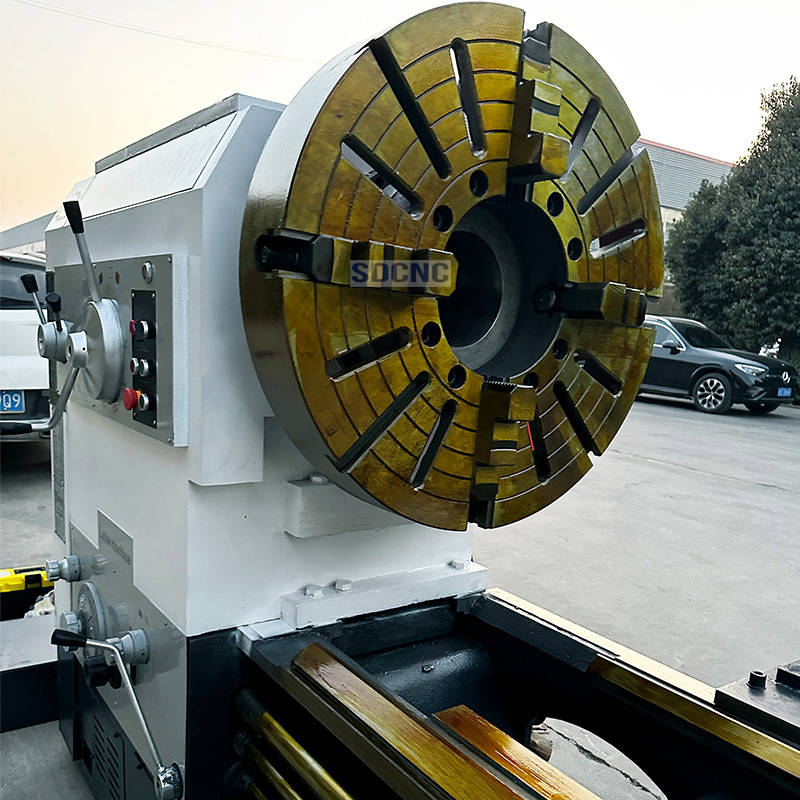

卡盘规格 |
Chuck |
mm |
φ520手动四爪/4-jaw manual |
|
刀架类型 |
Turret/tool post |
- |
4工位刀架/Manual 4 position |
|
刀具尺寸 |
Tool shank size |
mm |
32 x 32 |
|
X轴行程 |
X axis travel |
mm |
320/420 |
|
Z轴行程 |
Z axis travel |
mm |
1350/2850 |
|
X轴进给级数/范围 |
X axis feed steps/range |
mm/r |
22/0.02-0.45 |
|
Z轴进给级数/范围 |
Z axis feed steps/range |
mm/r |
26/0.07-1.33 |
|
X轴快速进给速度 |
X axis rapid traverse |
mm/min |
2300 |
|
Z轴快速进给速度 |
Z axis rapid traverse |
mm/min |
4000 |
|
公制螺纹种类/范围 |
Metric thread kinds /range |
mm |
1-15 |
|
英制螺纹种类/范围 |
Inch thread kinds /range |
T.P.I |
14-1 |
|
尾座套筒直径 |
Tailstock quill diameter |
mm |
100 |
|
尾座套筒锥度 |
Tailstock quill taper |
- |
MT5 |
|
尾座套筒行程 |
Tailstock quill travel |
mm |
250 |
|
主轴电机 |
Main spindle motor |
kw |
11 |
|
快速进给电机 |
Rapid traverse motor |
kw |
0.3 |
|
冷却泵电机 |
Coolant pump motor |
kw |
0.125 |
|
机床重量 Machine weight |
Weight for 1500 |
kg |
4300 |
|
Weight for 3000 |
kg |
5500 |
|
|
外形尺寸 Overall dimension |
Dimension for 1500 |
mm |
3700x1550x1550 |
|
Dimension for 3000 |
mm |
5200x1550x1550
|
