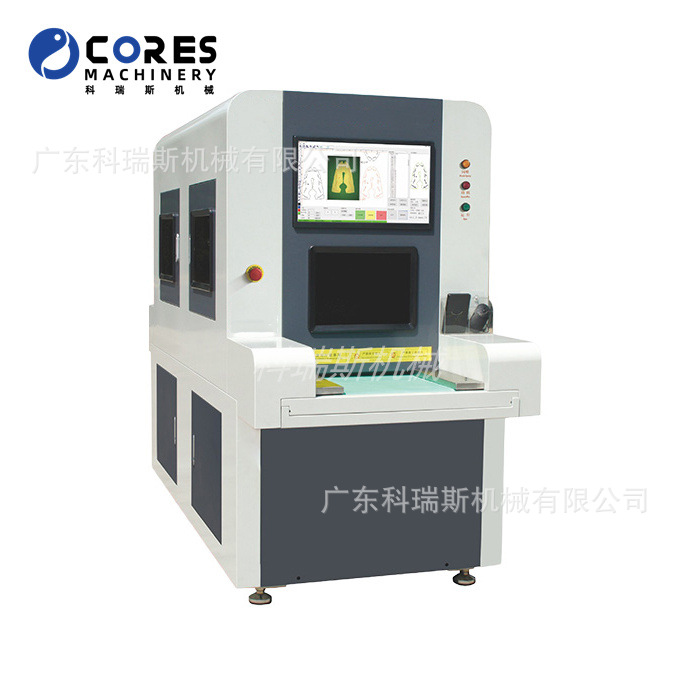

Машина для черчения с высокой скоростью

机器用途及特点：

鞋面画线机是用于在皮革、合成革或织物等材料鞋面进行自动绘画精准的缝制标记线。通过模板导入，替代传统手工画线，可高效完成复杂图案定位，确保接缝工序对位精准，提升产品- -致性。

特点
● 视觉定位系统:配备高速工业相机，应用动态视觉算法，实现高精度效率。
● 机械结构优化:采用窄幅传动带设计，占地面积较传统设备减少60%，.上料无需等待，画线效率提高3倍。
● 智能喷墨系统:16个墨盒横跨阵列排放，配备墨盒维护系统，延长墨盒使用寿命。
● 智能控制系统: 24寸工业显示屏，PLC中央控制系统，中英文图形化操作界面，具备自诊断故障提示。

Application & Features:

The upper marking machine is used to automatically draw accurate sewing marking lines on the uppers of materials such as leather, synthetic leather or fabric. Through template import, it replaces the traditional manual marking, and can efficiently complete the positioning of complex patterns, ensure the accurate positioning of the seam process, and improve the consistency of products.

Features
● Visual positioning system: equipped with high-speed industrial cameras, dynamic visual algorithms are applied to achieve high precision and efficiency.
● Mechanical structure optimization: adopts narrow transmission belt design, the floor space is reduced by 60% compared with traditional equipment, and there is no need to wait for loading, and the marking efficiency is increased by 3 times.
● Intelligent inkjet system: 16 ink cartridges are arranged across the array, equipped with an ink cartridge maintenance system to extend the service life of the ink cartridge.
● Intelligent control system: 24-inch industrial display, PLC central control system, Chinese and English graphical operation interface, with self-diagnosis fault prompts.
