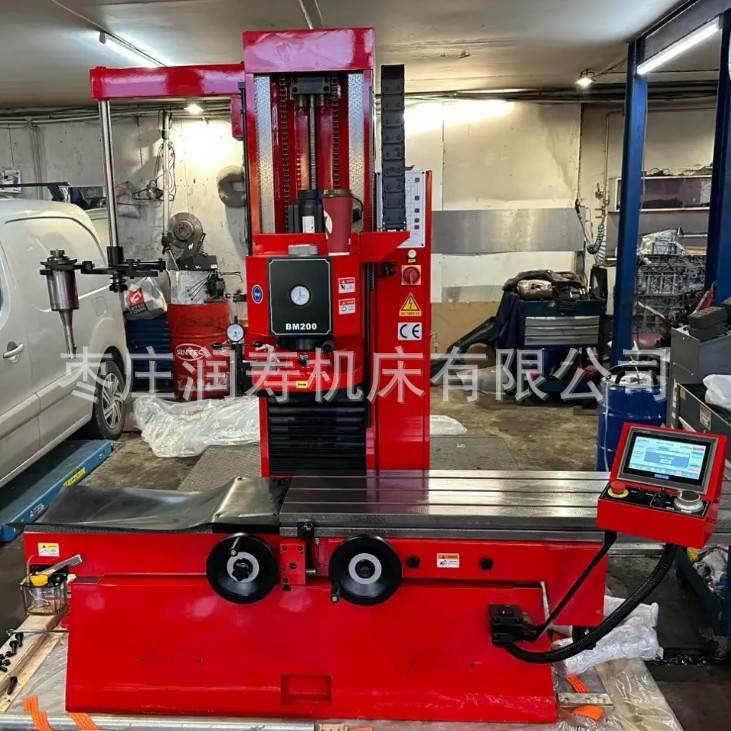

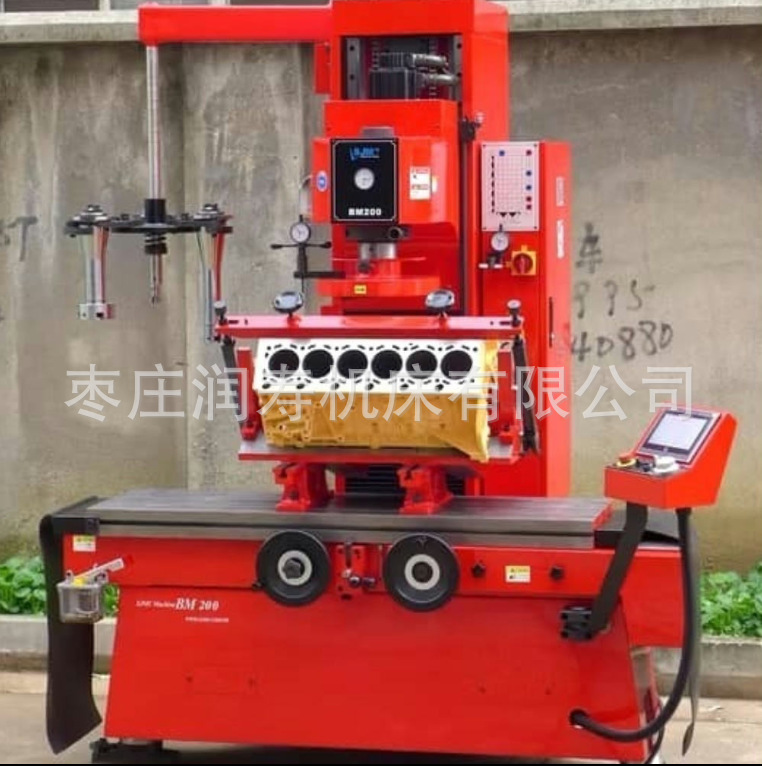

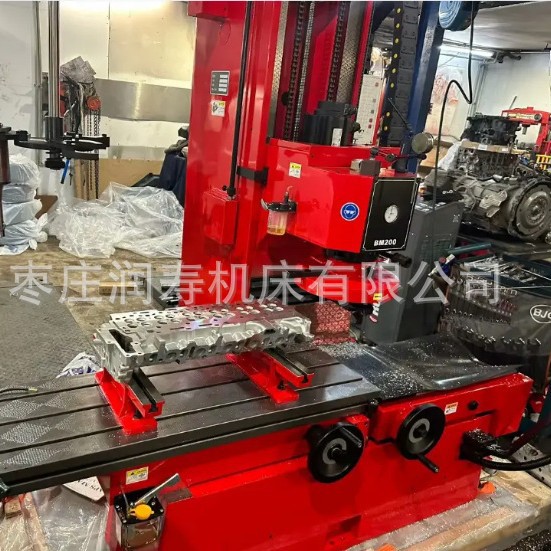

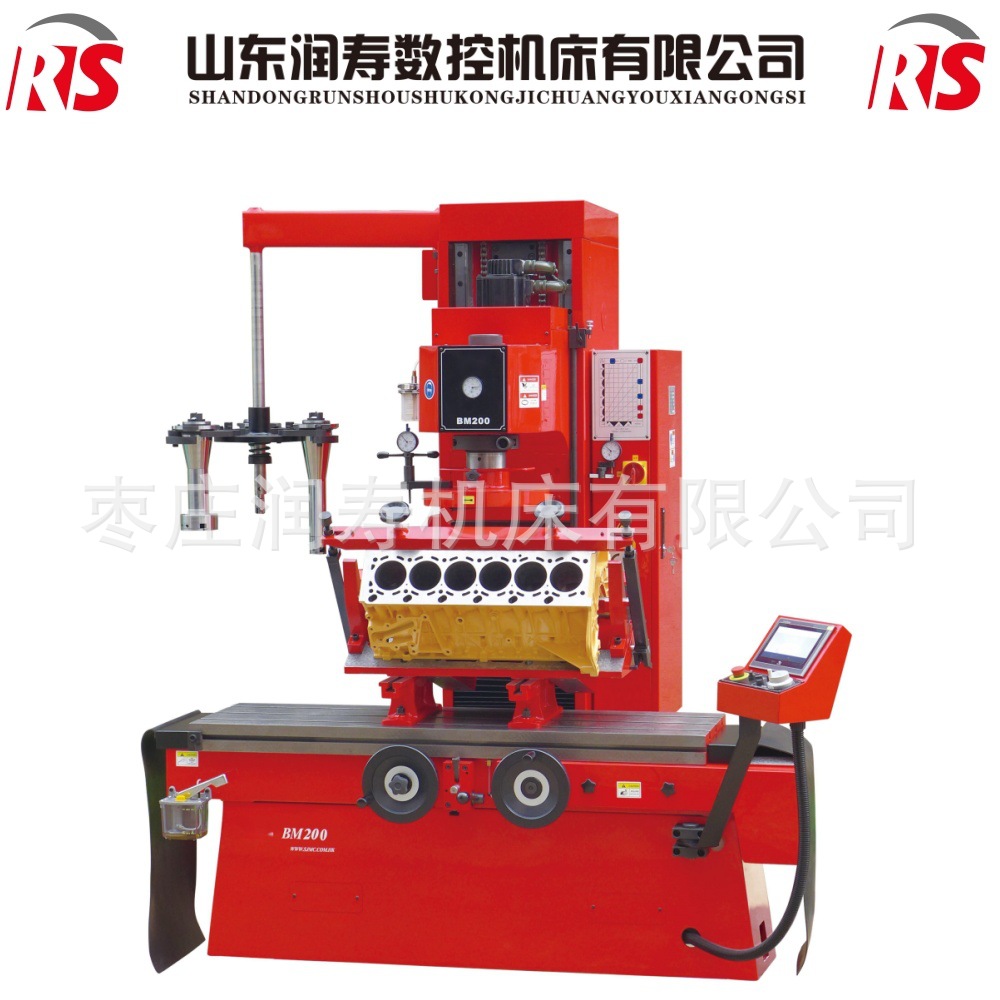

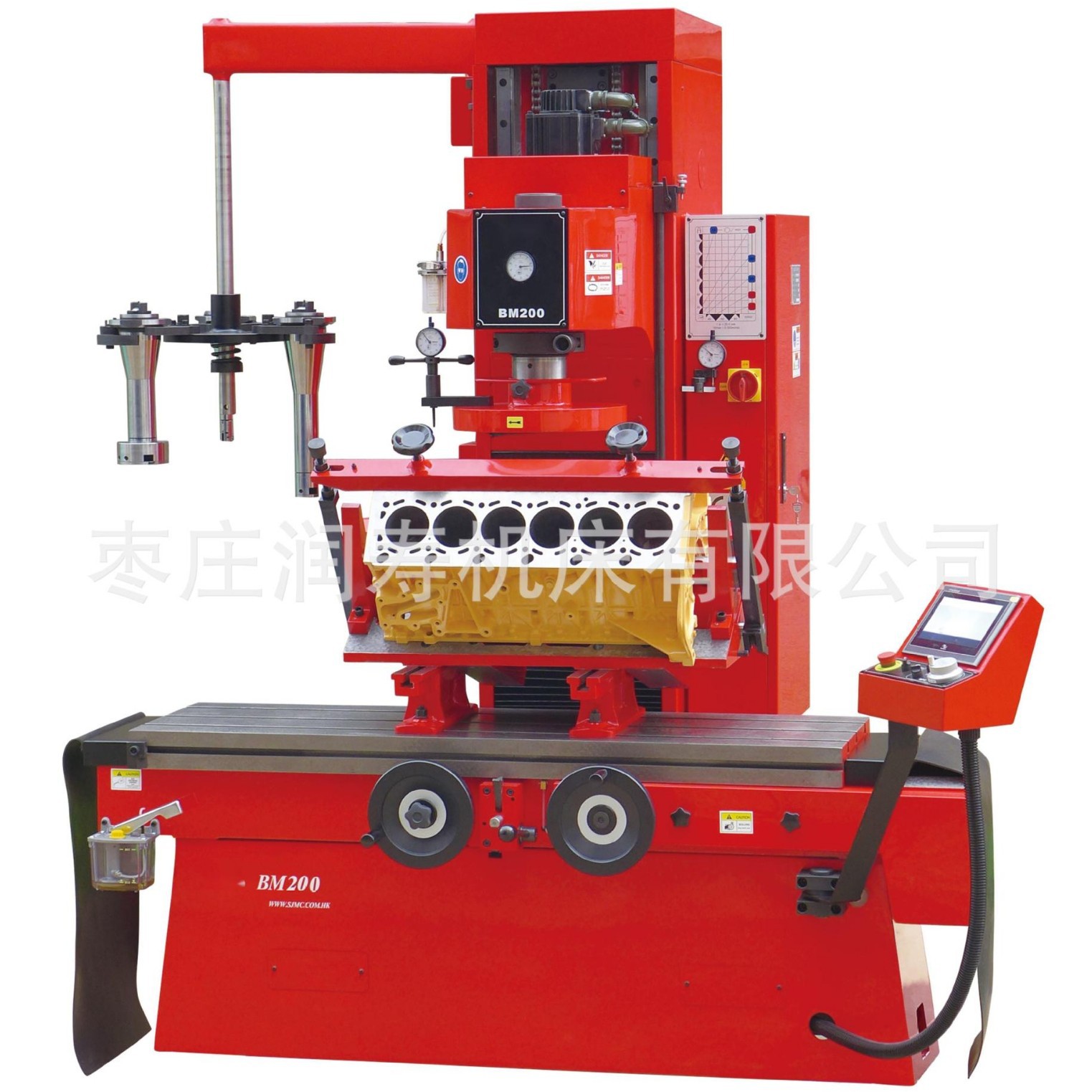

Вертикальный прецизионный сверлильно-фрезерный станок Bm200 для обработки цилиндров двигателя
Offer ID: 947693034355
Оформить заказ
| Изображение | Спецификация | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | BM200 | ¥130000.0 / ≈ 1 581 259 ₽ | 10 | 5857116516036 | |
📦 | Bm200 accessories | ¥5000.0 / ≈ 60 818 ₽ | 10 | 5857116516037 |
Статистика продавца
Свойства товара
Описание товара
|
Model |
BM200 |
B200 |
|
|
Control System |
EasyTouch 3 Axis |
Without |
|
|
Boring Capacity |
200 mm |
||
|
Max. Boring Depth |
350 mm |
||
|
Max. Milling Area ( L×W ) |
300×900 mm |
Without Milling |
|
|
Spindle Speed |
50 ~ 1000 rpm stepless |
||
|
Spindle Feeding |
10 ~ 900 mm / min（0.01 ~ 0.2 mm / r ） |
||
|
Rated Torque of Boring at 50-500 rpm |
58 N.M |
||
|
Rated Torque of Boring at 500-1000 rpm |
22 N.M. |
||
|
Spindle Traverse |
600 mm |
||
|
Distance Between Spindle End Face and Work Table |
0 ~ 700 mm |
||
|
Distance between Spindle Axis and Carriage Vertical Plane |
380 mm |
||
|
Longitudinal Feeding of Work Table by Electric |
30 ~ 1200 mm / min |
Hand Movement |
|
|
Longitudinal Quick Travel of Work Table by Electric |
1200 mm / min |
Hand Movement |
|
|
Longitudinal Traverse of Work Table |
1200 mm |
||
|
Cross Traverse of Work Table |
100 mm |
||
|
Work Table Size ( L×W ) |
400×1350 mm |
||
|
Boring Accuracy |
H7 |
||
|
|
Roundness for Boring |
0.005 mm |
|
|
Working Accuracy |
Cylindricity for Boring |
0.015 mm / 300 mm |
|
|
|
Flatness for Milling |
0.0127 mm / 305 mm |
Without Milling |
|
Surface Roughness |
Boring |
Ra 0.8 |
|
|
Milling |
Ra 0.8 |
Without Milling |
|
|
Power of Spindle Motor |
2 kW |
||
|
Motor Power of Work Table Movement |
0.4 kW |
Hand Movement |
|
|
Motor Power of Spindle Vertical Movement |
0.4 kW |
||
|
Overall dimensions ( L×W×H ) |
1870×1600×2000 mm |
||
|
Package Size |
2200×1450×2250 mm |
||
|
N.W. |
1900 Kg |
||
|
G.W. |
2300 Kg |
||
