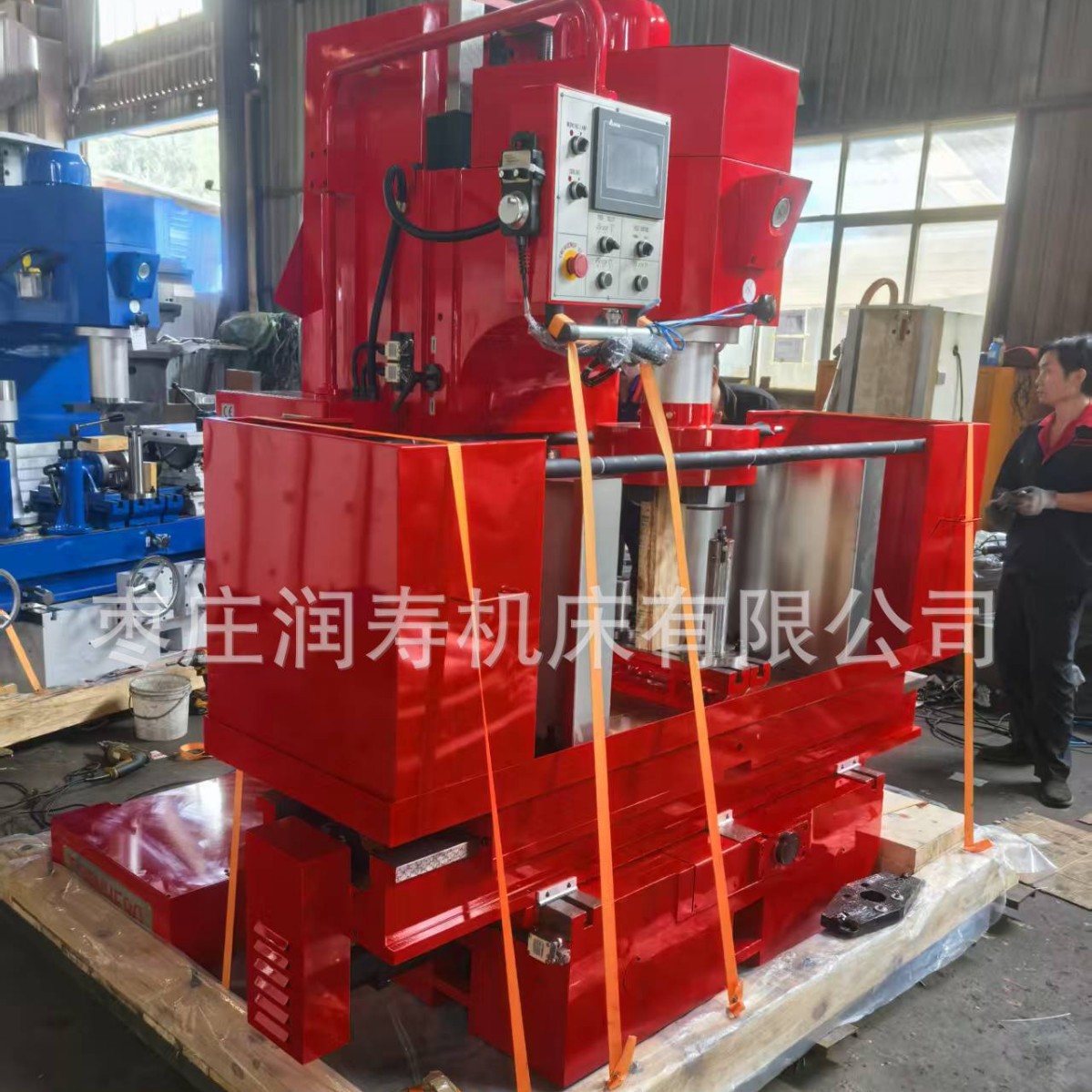

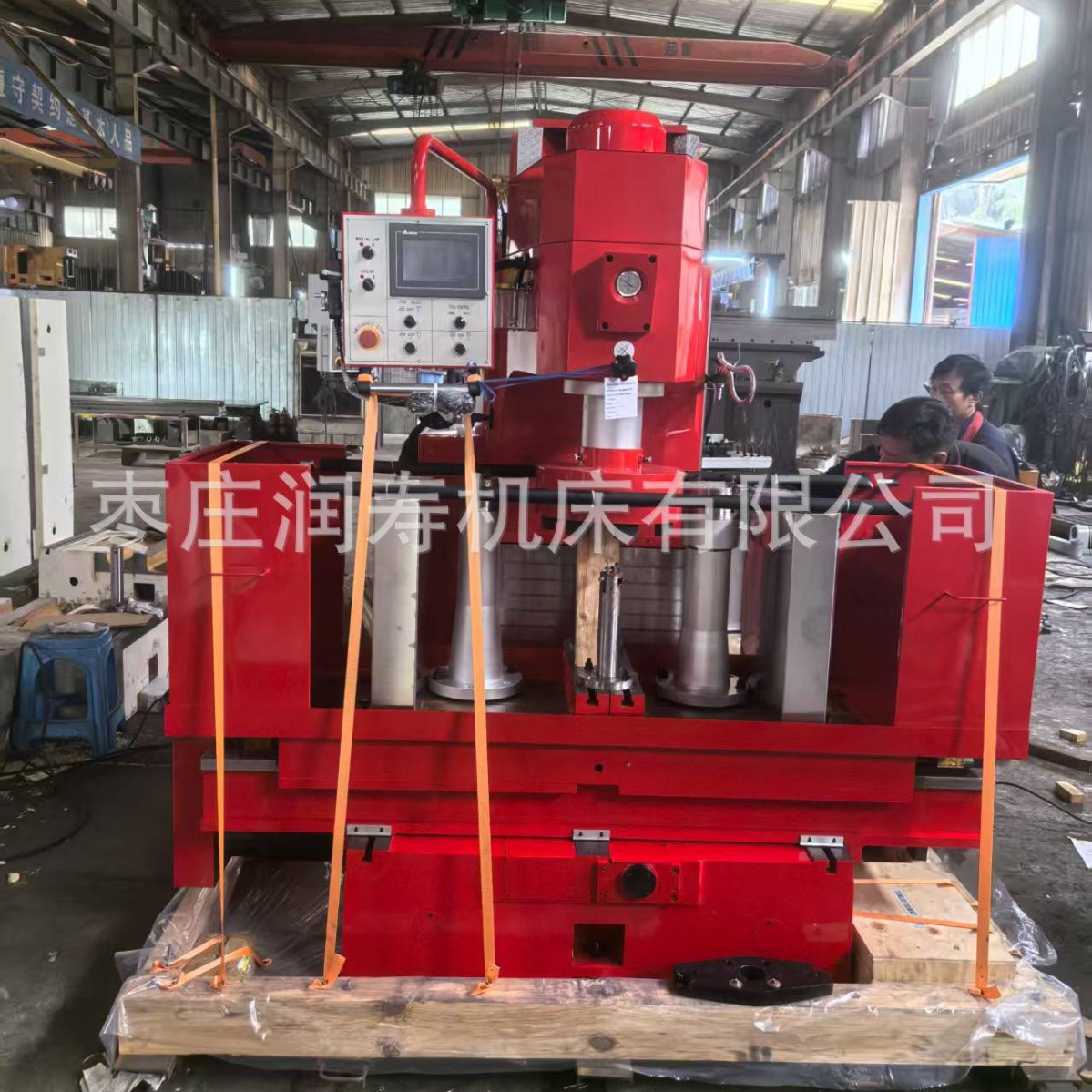

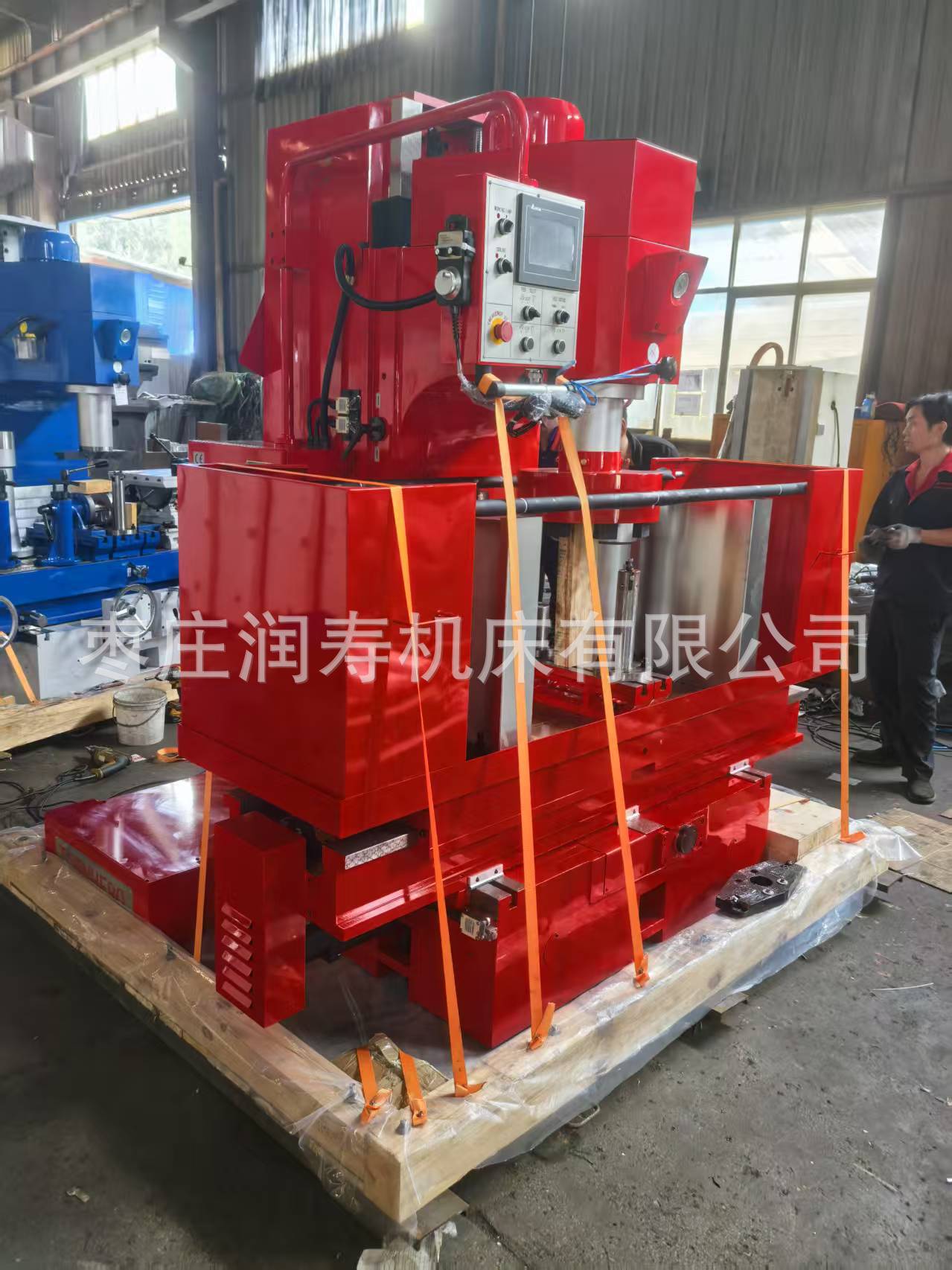

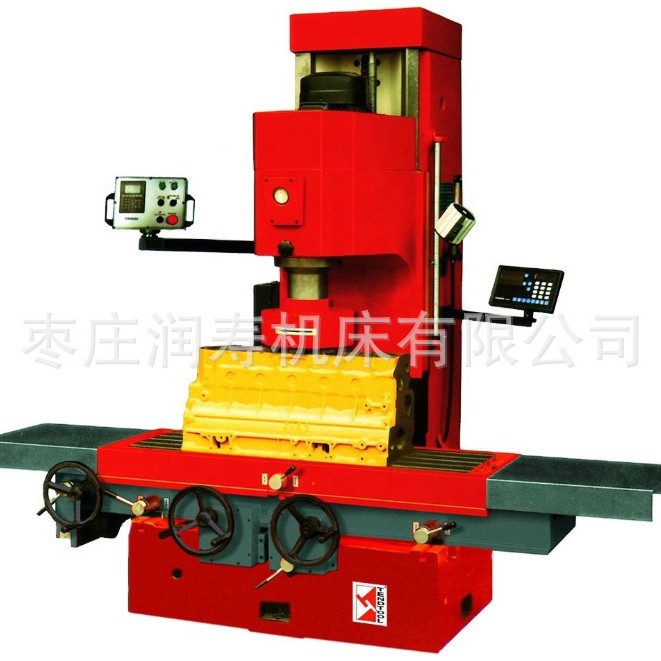

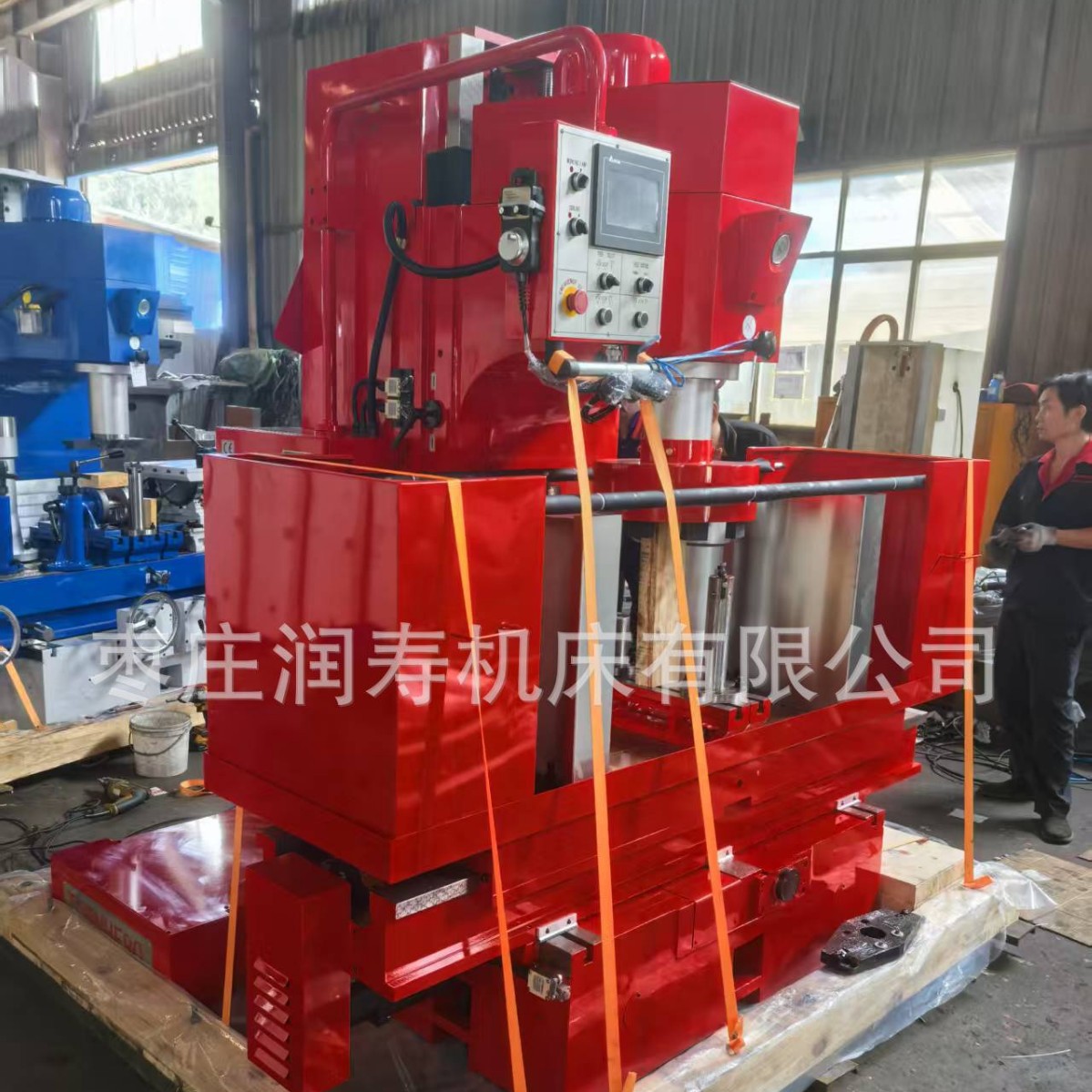

Txm250A вертикальная буровая фрезерная машина, буровая машина для блока цилиндров двигателя, высококачественное заводское оборудование
Offer ID: 948492192660
Оформить заказ
| Изображение | Спецификация | Цена (CNY / RUB) | В наличии | SKU ID | Кол-во / Корзина |
|---|---|---|---|---|---|
📦 | TXM250A | ¥120000.0 / ≈ 1 459 623 ₽ | 10 | 6023778455089 | |
📦 | Txm250a accessories | ¥5000.0 / ≈ 60 818 ₽ | 10 | 6023778455090 |
Статистика продавца
Свойства товара
Описание товара
产品参数：
|
型号Model |
单位unit |
TXM170D |
TXM200D |
TXM250A/D |
|||
|
最大镗孔直径maximum boring diameter |
mm |
φ170 |
φ200 |
φ250 |
|||
|
最大镗孔深度Maximum boring depth |
mm |
400 |
500 |
500 |
|||
|
最大铣削平面Maximum milling plane |
mm |
400*1000 |
400*1250 |
400*1250 |
|||
|
最大钻铰孔直径Maximum drilling and reaming diameter |
mm |
φ30 |
|||||
|
主轴转速 Spindle speed |
r/min |
120-1200 |
|||||
|
主轴进给 Spindle feed |
mm/min |
14-900 |
|||||
|
主轴快速移动 The spindle moves quickly |
mm/mim |
32-1350 |
|||||
|
主轴行程 Spindle stroke |
mm |
700 |
|||||
|
主轴端面至工作台面距离 Distance from spindle end face to worktable |
mm |
0-700 |
|||||
|
|
|
|
|||||
|
主轴中心至滑架直立面距离Distance from the spindle center to the vertical surface of the carriage |
mm |
375 |
|||||
|
工作台纵向进给Longitudinal feed of workbench |
mm/mim |
32-1350 |
|||||
|
工作台纵向快速移动 The workbench moves rapidly vertically |
mm/mim |
1350 |
|||||
|
工作台纵向行程Longitudinal travel of workbench |
mm |
1500 |
|||||
|
工作台横向行程Horizontal travel of workbench |
mm |
200 |
|||||
|
工作台尺寸Workbench size |
mm |
500*1250 |
500*1500 |
||||
|
镗孔尺寸精度Bore size accuracy |
|
H7 |
|||||
|
工作精度working accuracy |
圆度roundness |
mm |
0.005 |
||||
|
圆柱度Cylindricity |
0.01/300 |
||||||
|
铁削平面度Iron cutting flatness |
0.10 |
|
|
||||
|
加工表面粗糙度Processing surface roughness |
镗孔Boring |
mm |
Ra2.5 |
||||
|
铣削Milling |
Ra3.2 |
||||||
|
主电机功率 Main motor power |
Kw |
5.5 |
|||||
|
机床外形尺寸 overall dimension |
Cm |
260*163*230 |
|||||
|
工作空间workspace |
Cm |
359*173*235 |
|||||
|
机床包装尺寸Machine tool packaging size |
Cm |
225*190*228 |
|||||
|
机床净重/毛重 Net weight/gross weight of machine tool |
kg |
3300/3600／ |
3500／3800 |
||||
